Inflatable Restraint Instrument Panel Module

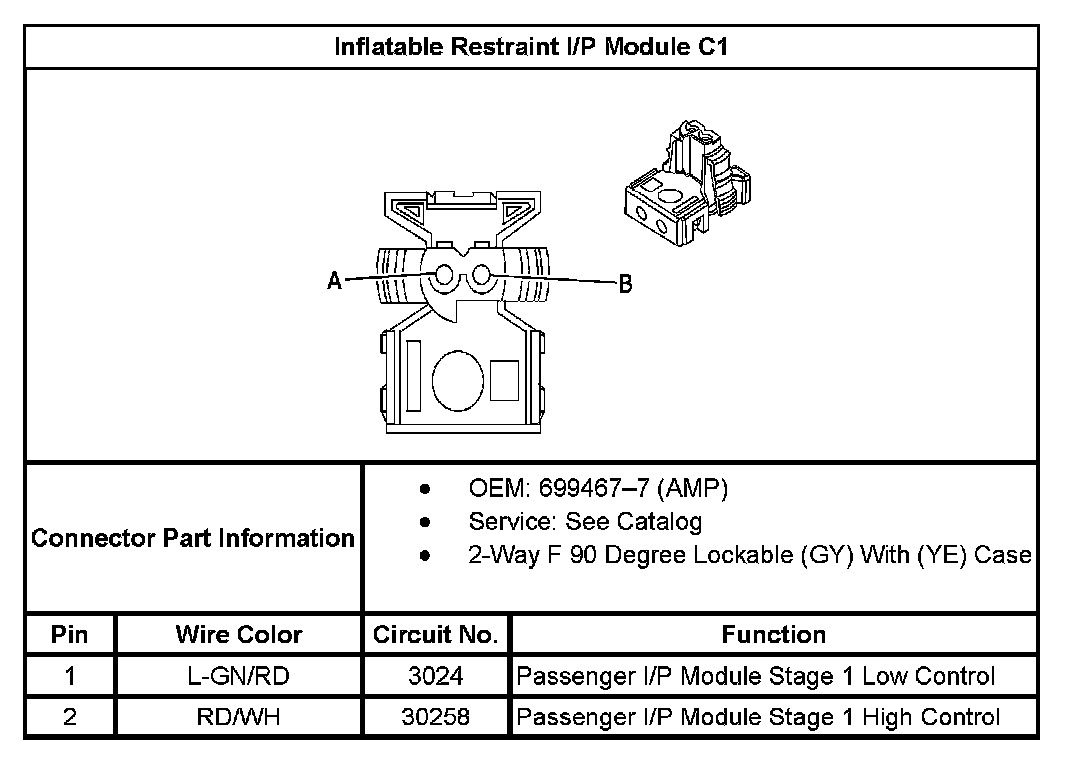

Inflatable Restraint I/P Module C1:

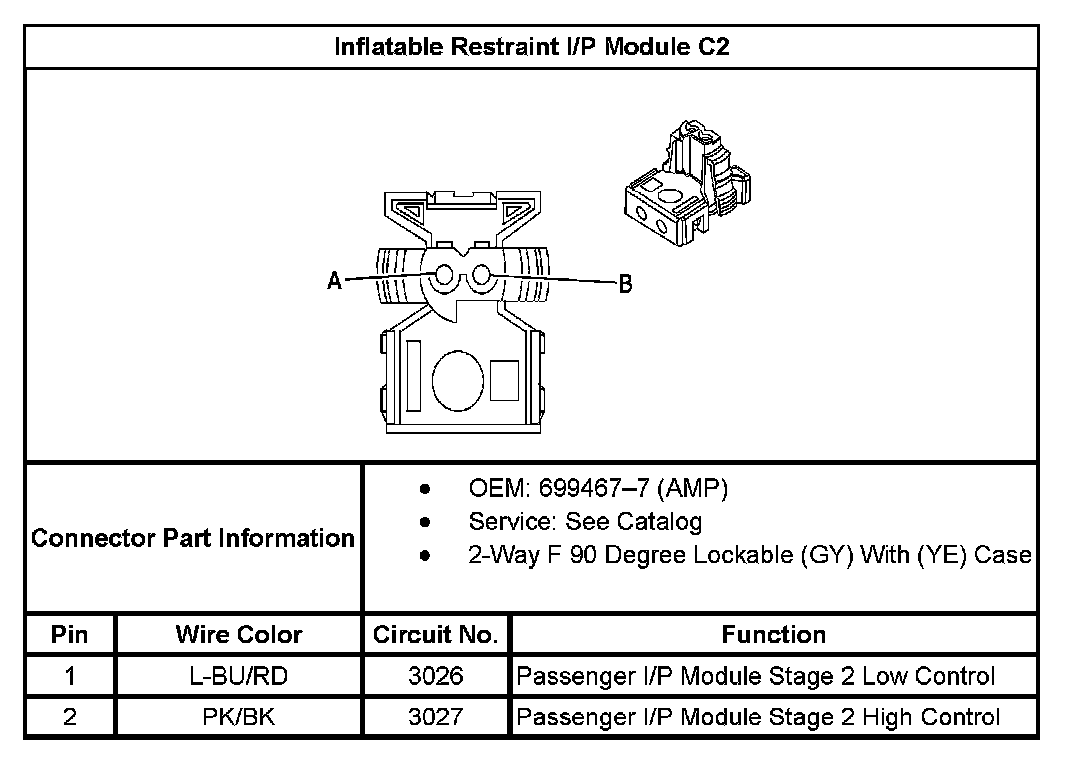

Inflatable Restraint I/P Module C2:
