Air Cleaner Outlet Duct Replacement

AIR CLEANER OUTLET DUCT REPLACEMENT

REMOVAL PROCEDURE

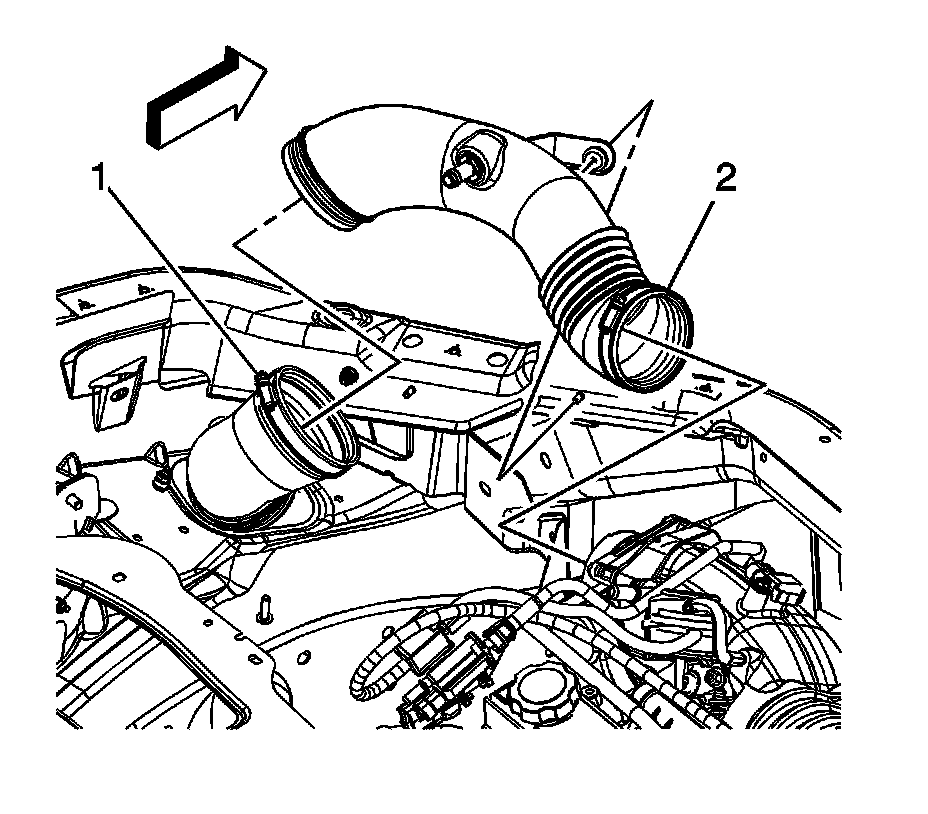

1. Loosen the air cleaner assembly air duct at the outlet duct clamp (1).
2. Loosen the outlet duct clamp (2) at the throttle body.
3. Remove the air outlet duct.

INSTALLATION PROCEDURE




1. Install the air outlet duct.
2. Install the air outlet duct clamps (1 and 2).
3. Tighten the air outlet duct clamps (1 and 2).

NOTE: Refer to Fastener Notice.

Tighten the clamps to 5 N.m (44 lb in).
