Manifold Absolute Pressure (MAP) Sensor Replacement (TMAP)

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REPLACEMENT (TMAP)

REMOVAL PROCEDURE

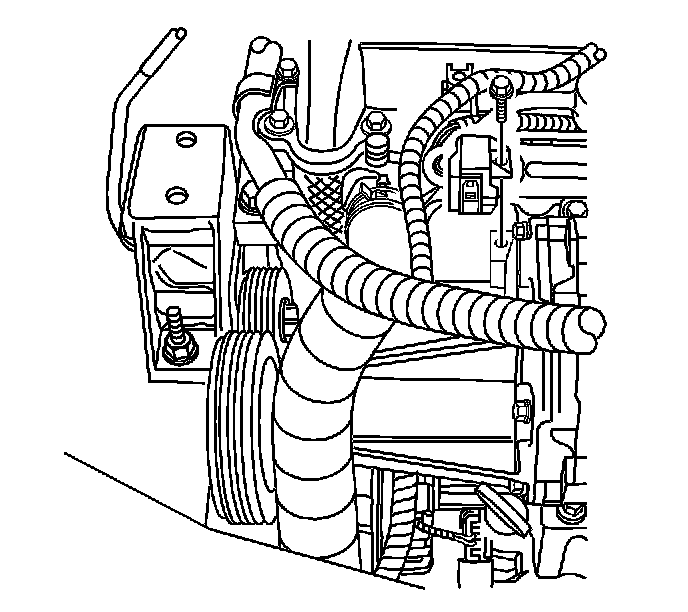

1. Disconnect the temperature manifold absolute pressure (TMAP) sensor harness connector.
2. Remove the TMAP sensor from the intake manifold.
3. Inspect the seal for damage.

IMPORTANT: If the TMAP sensor seal is damaged, the TMAP sensor must be replaced.

INSTALLATION PROCEDURE




1. Install the TMAP sensor into the intake manifold.

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: Use the new TMAP sensor seal provided with the new TMAP sensor.

Tighten the bolt to 10 N.m (89 lb in).

2. Connect the TMAP sensor harness connector.
