Quick Connect Fitting(s) Service (Metal Collar)

QUICK CONNECT FITTING(S) SERVICE (METAL COLLAR)

TOOLS REQUIRED
J 37088-A Fuel Line Disconnect Tool Set

REMOVAL PROCEDURE




1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure.

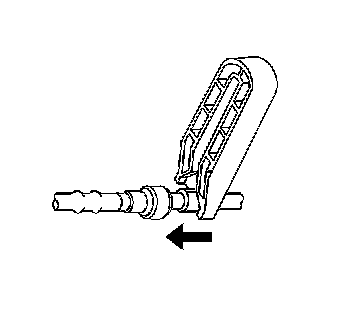

2. Remove the retainer from the quick-connect fitting, if applicable.

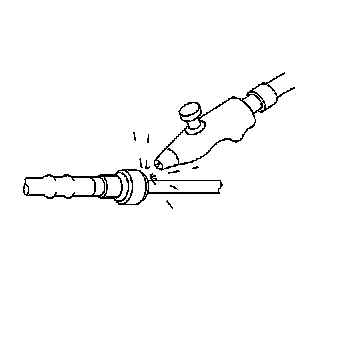

3. Blow dirt out of the fitting using compressed air.

CAUTION: Wear safety glasses when using compressed air, as flying dirt particles may cause eye injury.

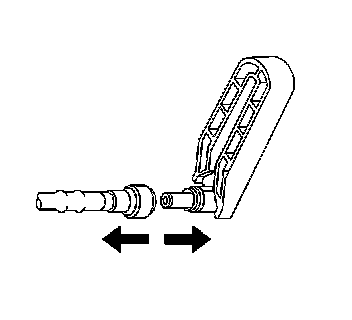

4. Choose the correct tool from J 37088-A tool set for the size of the fitting. Insert the tool into the female connector, then push inward to release the locking tabs.




5. Pull the connection apart.
6. Using a clean shop towel, wipe off the male pipe end.

NOTE: If necessary, remove rust or burrs from the fuel pipes with an emery cloth. Use a radial motion with the fuel pipe end in order to prevent damage to the O-ring sealing surface. Use a clean shop towel in order to wipe off the male tube ends. Inspect all the connections for dirt and burrs. Clean or replace the components and assemblies as required.

7. Inspect both ends of the fitting for dirt and burrs. Clean or replace the components as required.

INSTALLATION PROCEDURE

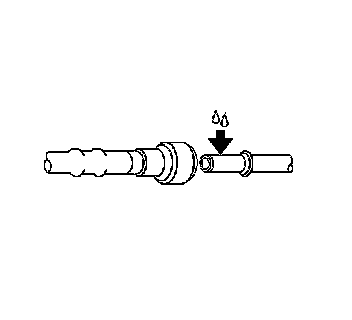

1. Apply a few drops of clean engine oil to the male pipe end.

CAUTION: In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.

This will ensure proper reconnection and prevent a possible fuel leak.

During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

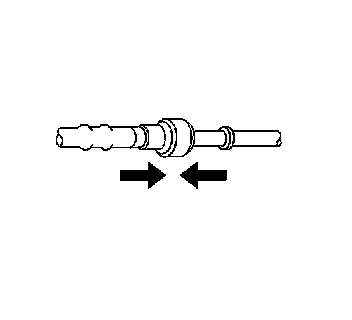

2. Push both sides of the fitting together to cause the retaining tabs to snap into place.




3. Once installed, pull on both sides of the fitting to make sure the connection is secure.
4. Install the retainer to the quick-connect fitting, if applicable.
