Canister Vent Valve: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER VENT SOLENOID VALVE REPLACEMENT

REMOVAL PROCEDURE
1. Raise and support the vehicle. Refer to Vehicle Lifting.




2. Disconnect the electrical connector from the evaporative emission (EVAP) canister vent solenoid valve.
3. Clean away any debris that may be present around the EVAP canister vent valve.




4. Remove the EVAP canister retaining bolt (1).
5. Lower the EVAP canister.

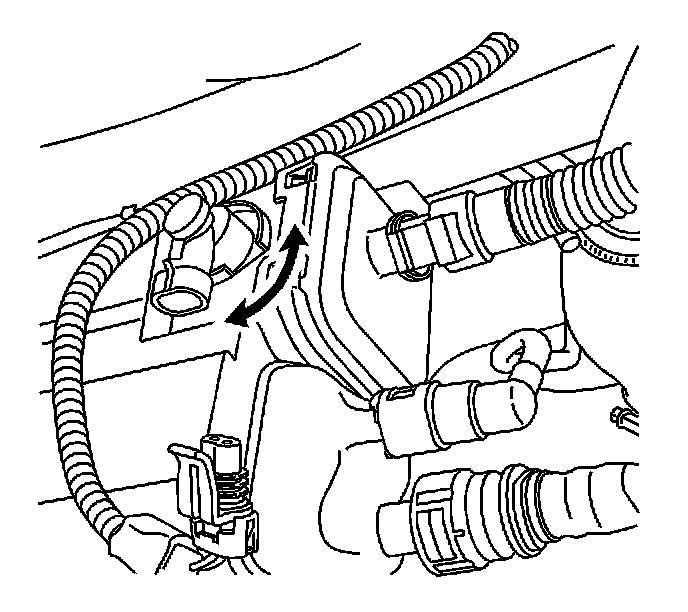

6. Rotate the EVAP canister vent valve counterclockwise to release from the locked position.

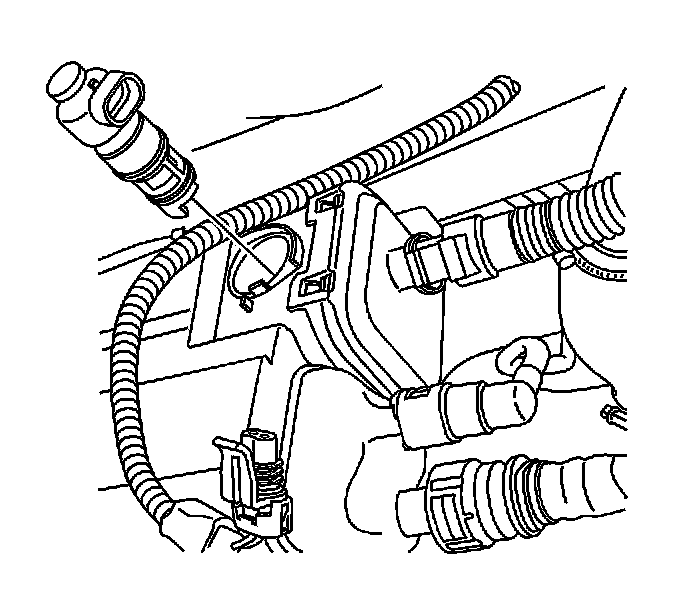

7. Remove the vent valve from the EVAP canister.

INSTALLATION PROCEDURE




1. Insert the EVAP canister vent solenoid valve into the EVAP canister, with the valve aligned to the released position.




2. Rotate vent valve clockwise to secure into the locked position.




3. Install the EVAP canister and retaining bolt (1).

NOTE: Refer to Fastener Notice in Service Precautions

Tighten the bolt to 10 N.m (89 lb in).




4. Connect the electrical connector to the EVAP canister vent valve.
5. Lower the vehicle.
