Canister Purge Solenoid: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE SOLENOID VALVE REPLACEMENT

REMOVAL PROCEDURE

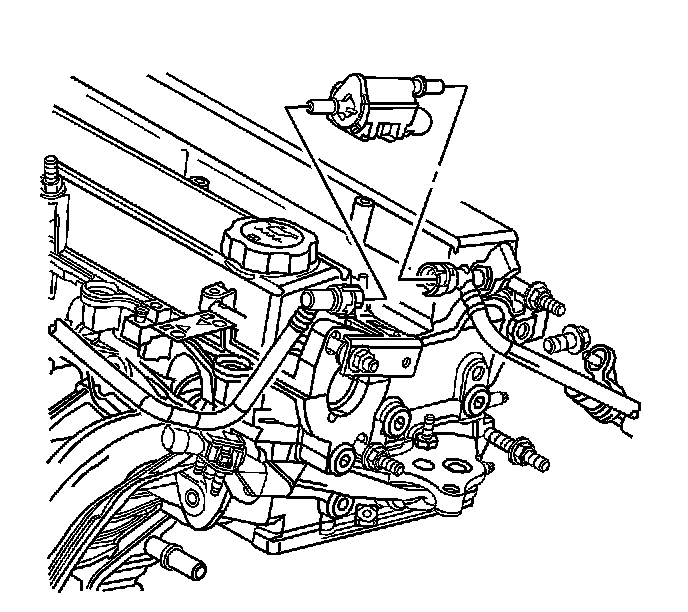

1. Disconnect the evaporative emission (EVAP) canister purge valve harness connector.
2. Disconnect the vacuum pipe from the EVAP canister purge valve.
3. Disconnect the purge pipe from the EVAP canister purge valve.




4. Remove the EVAP canister purge valve and bracket.
5. Remove the EVAP canister purge valve from the purge bracket.
6. Inspect for carbon release in the EVAP canister purge valve ports.

INSTALLATION PROCEDURE
1. Install the EVAP canister purge valve on to the purge bracket.




2. Install the EVAP canister purge valve and bracket.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the purge bracket nut to 8 N.m (71 lb in).

3. Connect the purge pipe to the EVAP canister purge valve.
4. Connect the vacuum pipe to the EVAP canister purge valve.
5. Connect the EVAP canister purge valve harness connector.
