Evaporative Emissions (EVAP) Hose Routing Diagram

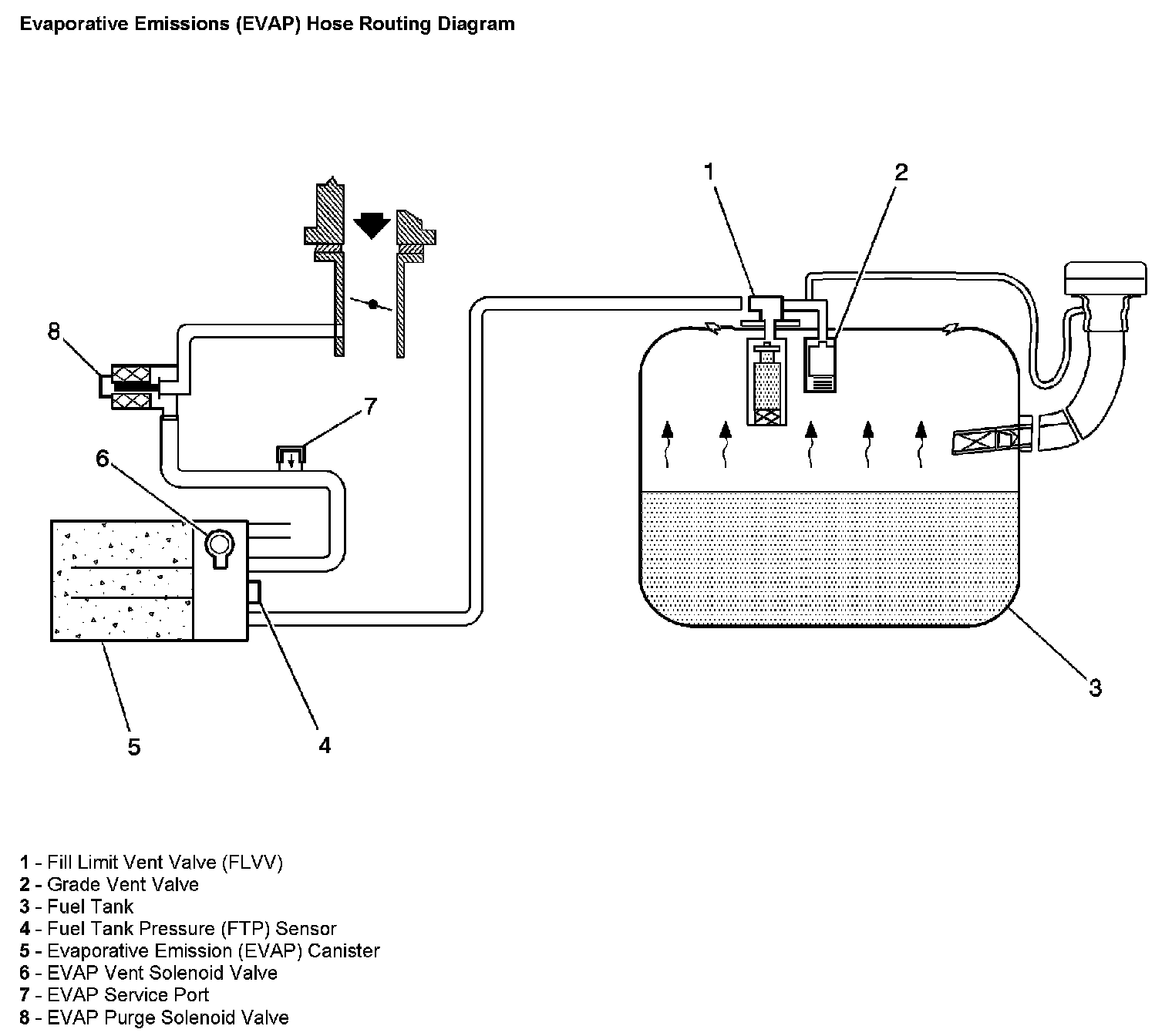

Evaporative Emissions (EVAP) Hose Routing Diagram:
