Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

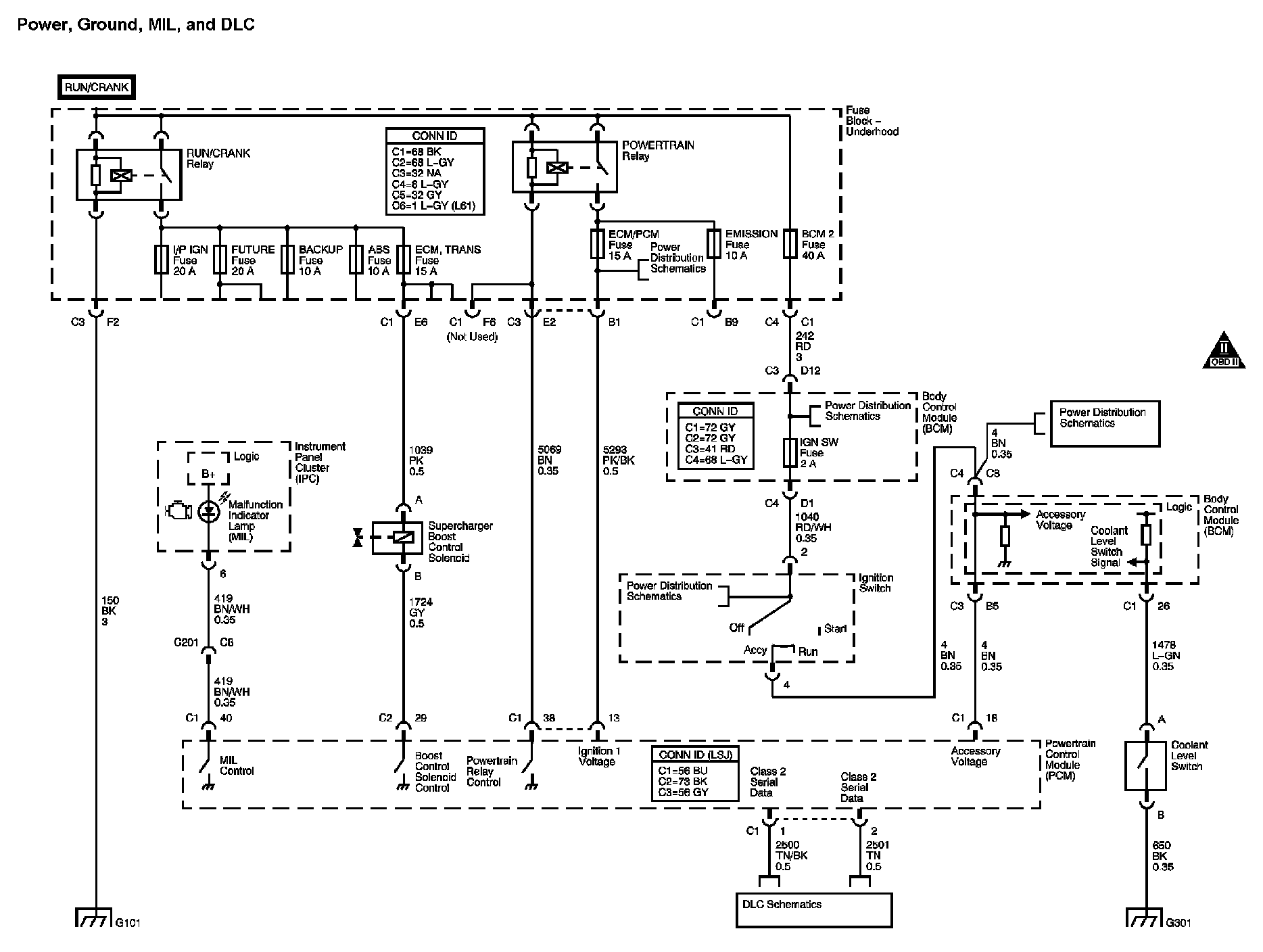

Power, Ground, MIL, and DLC

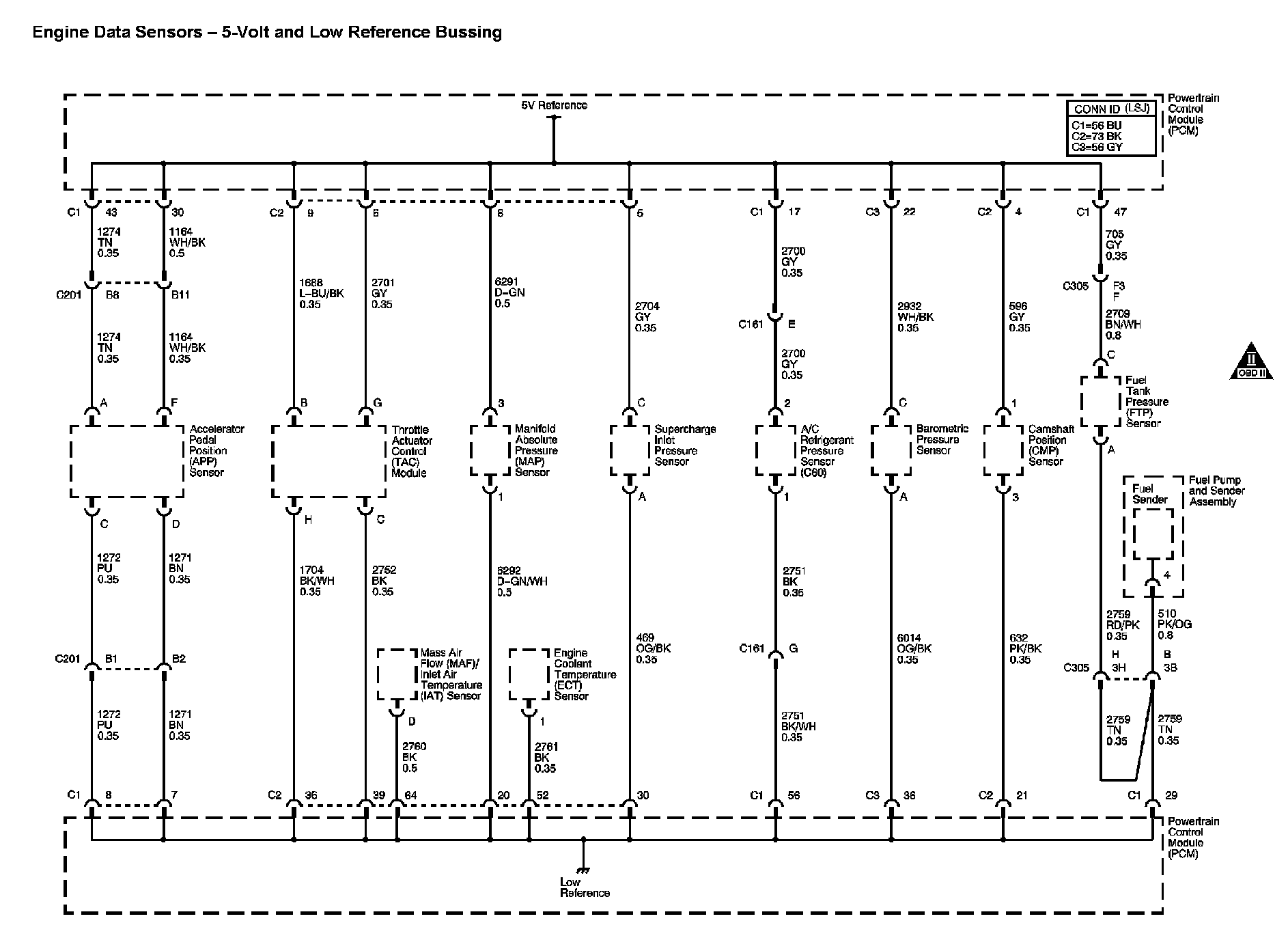

Engine Data Sensors - 5-Volt and Low Reference Bussing

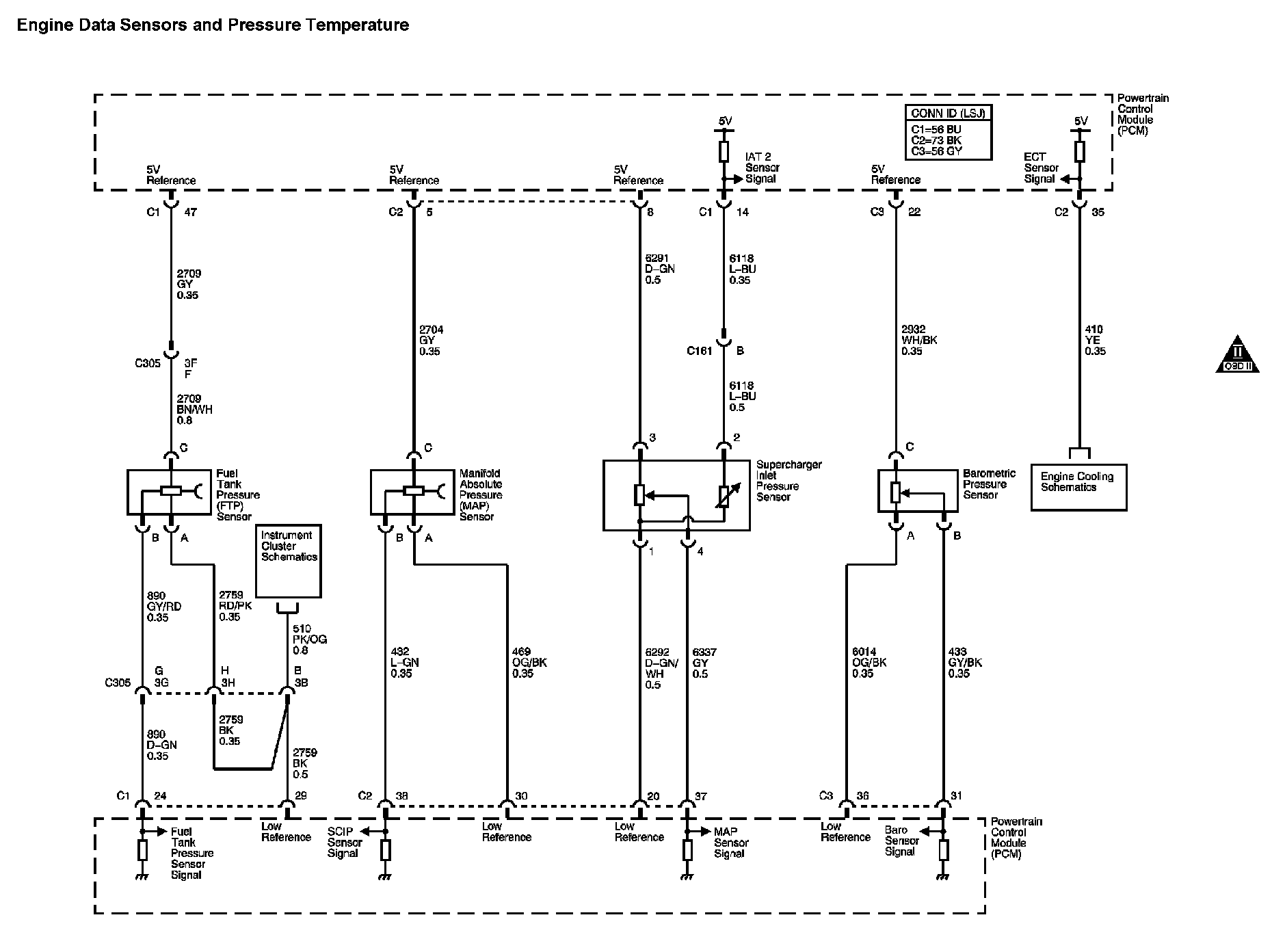

Engine Data Sensors and Pressure Temperature







Engine Data Sensors - MAF/IAT, CKP, KS, CMP, VSS

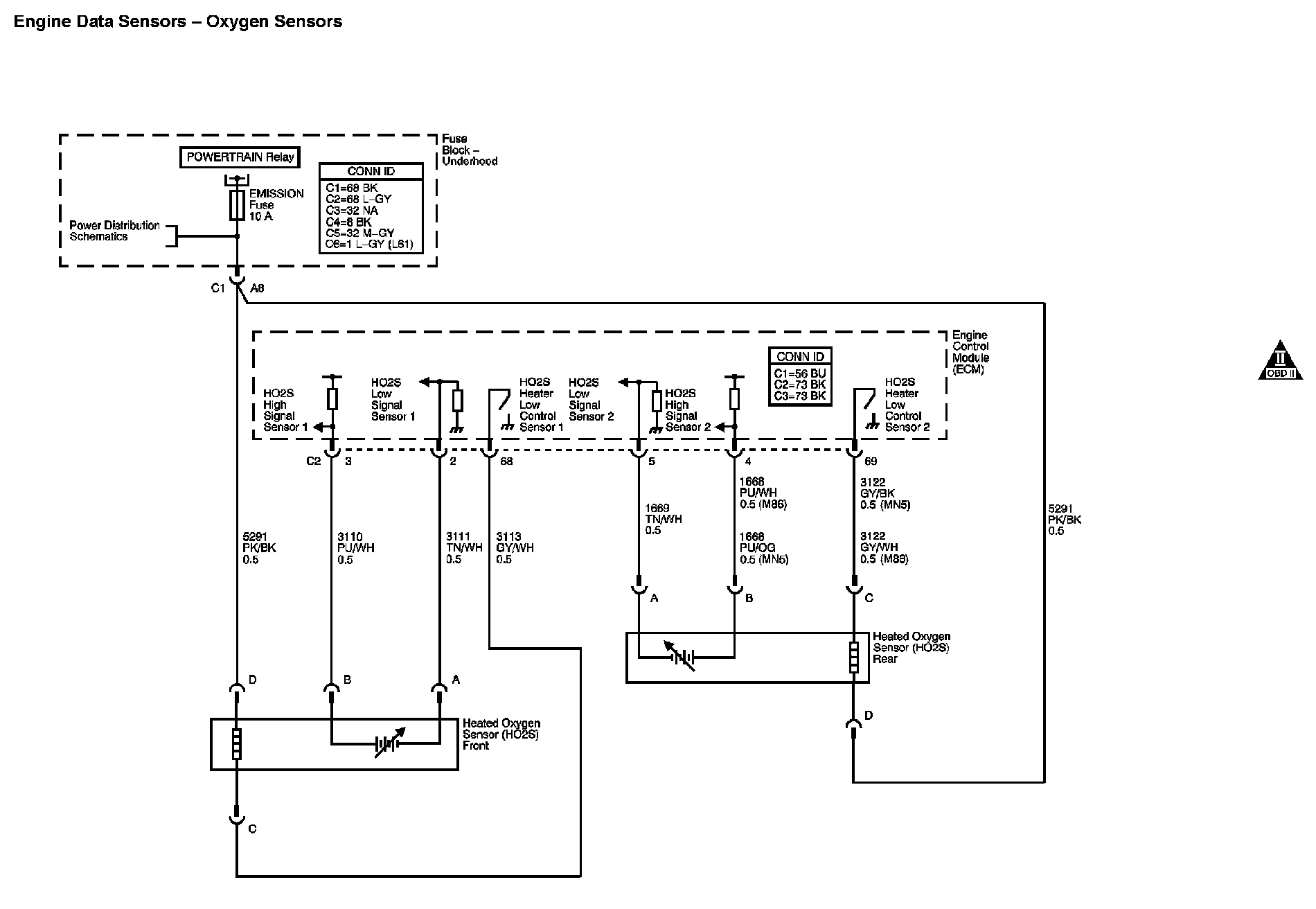

Engine Data Sensors, HO2S

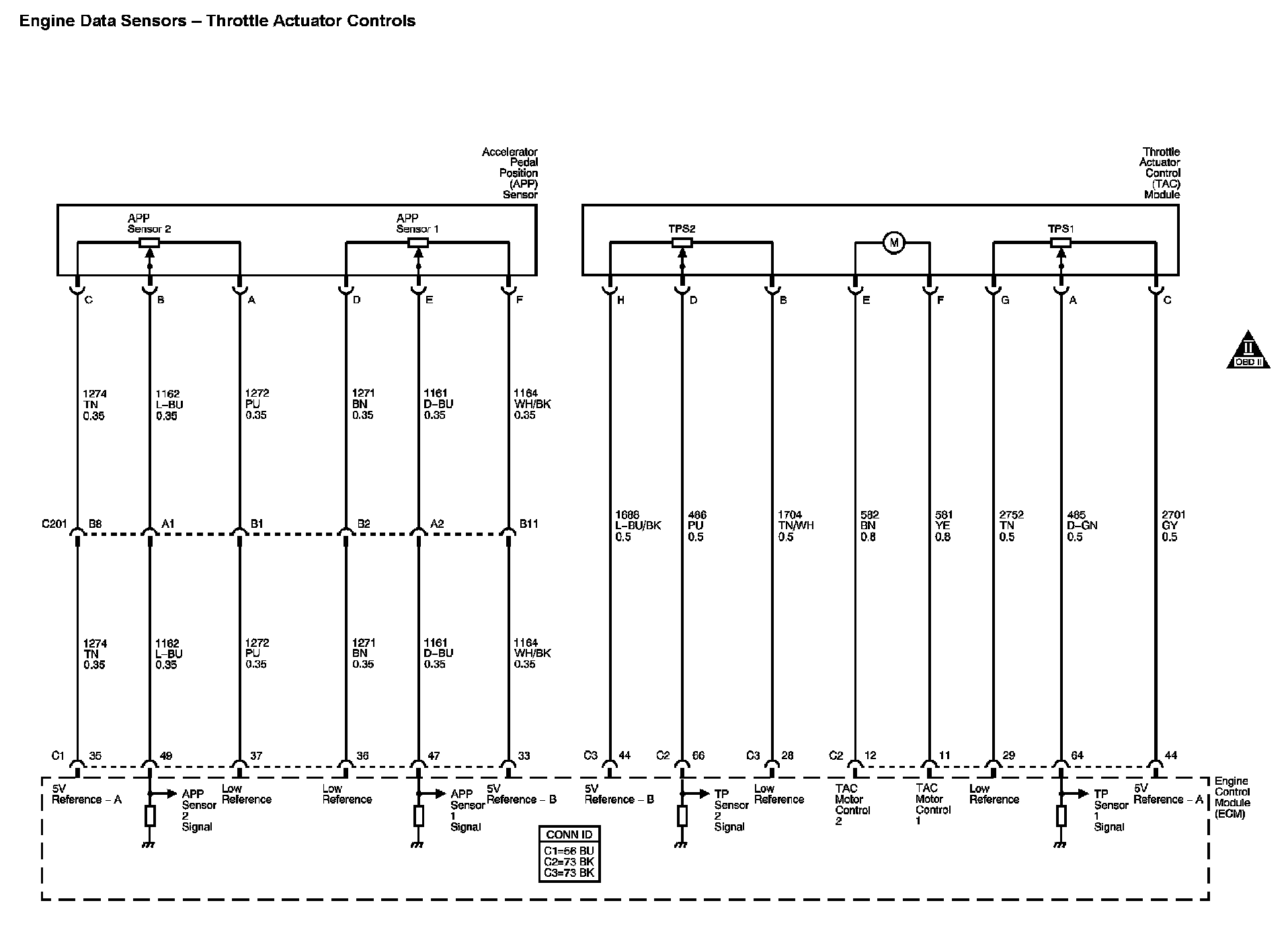

Engine Data Sensors, APP and TAC

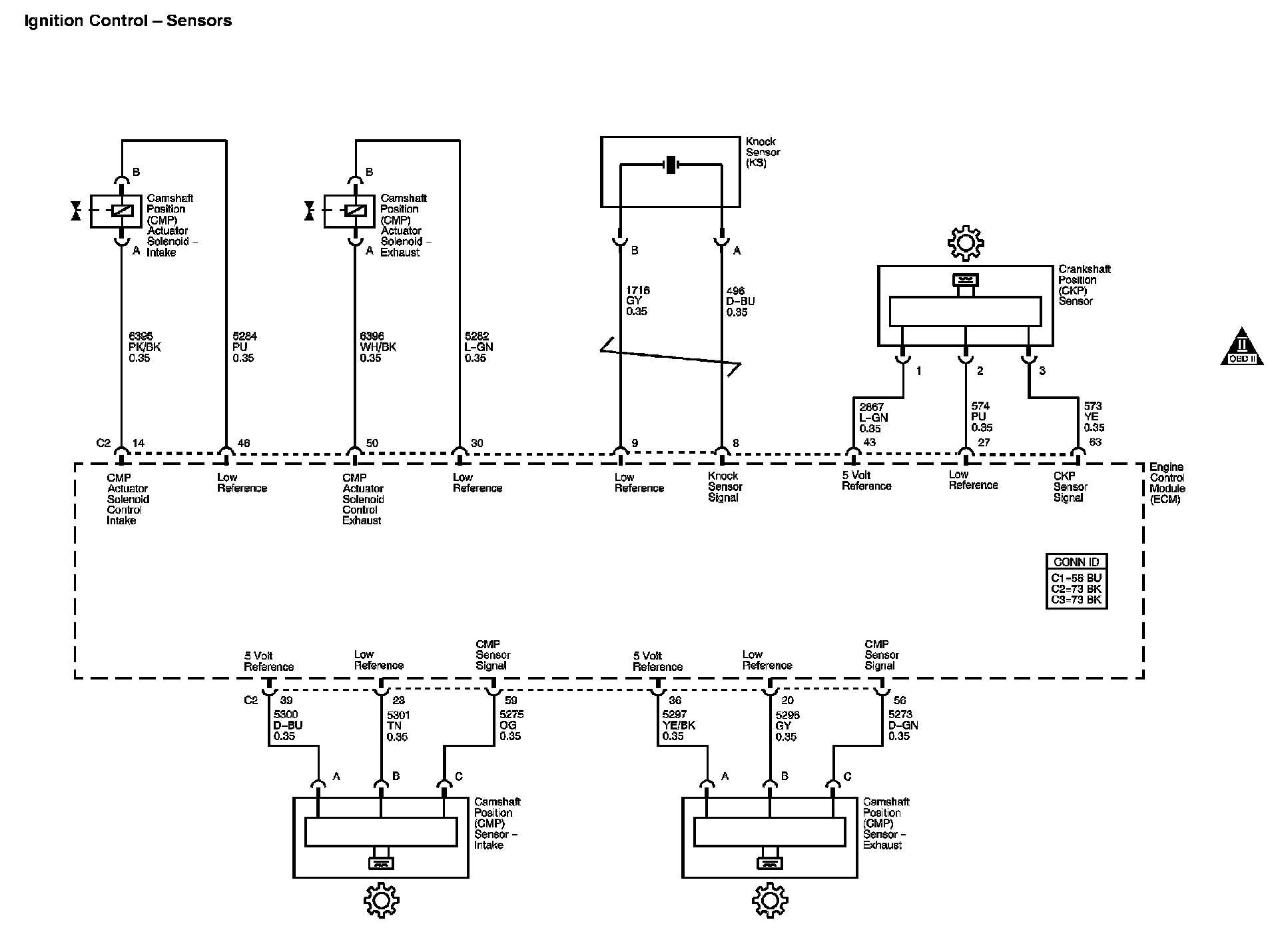

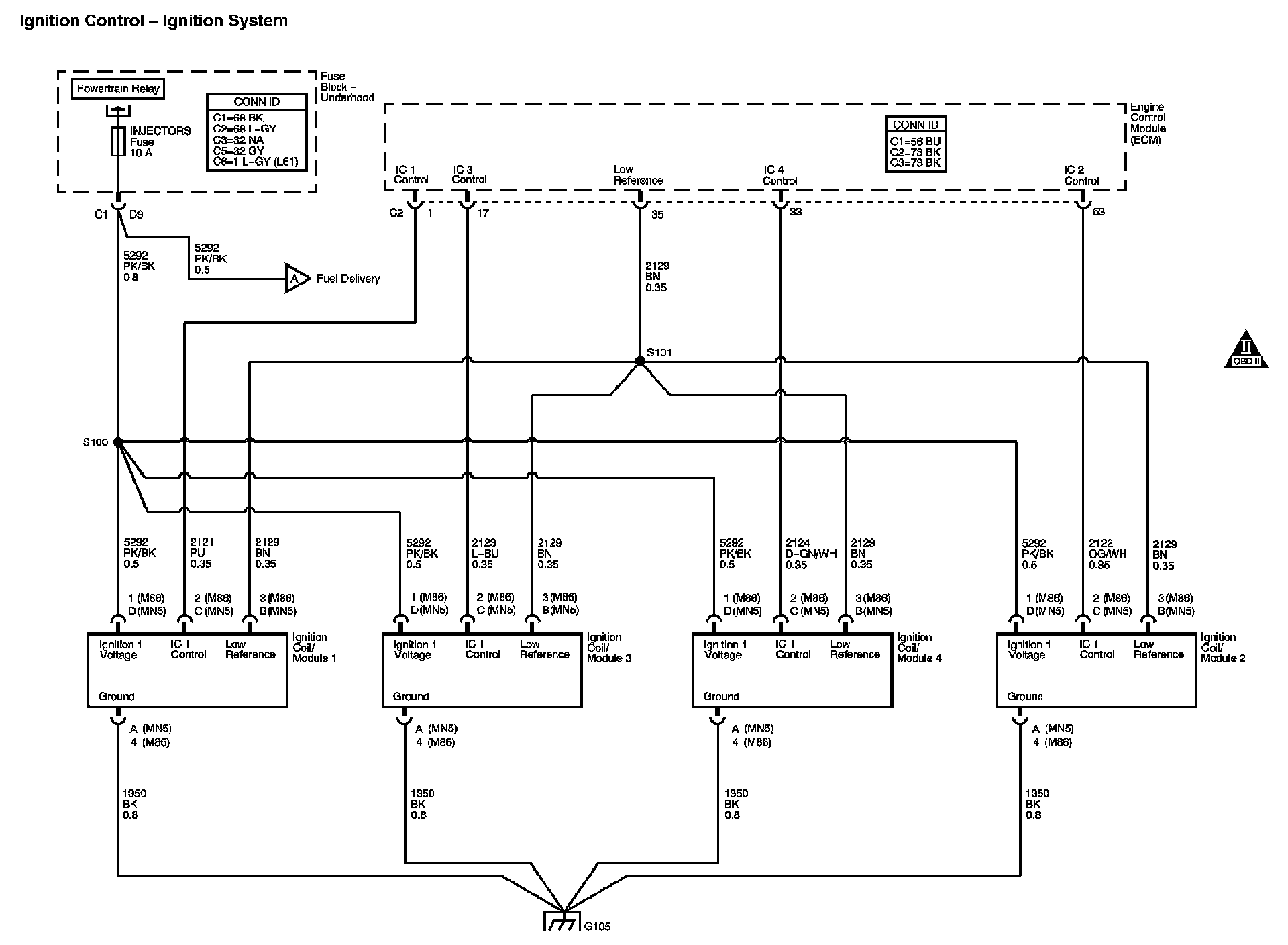

Ignition Controls - Ignition System and Sensors

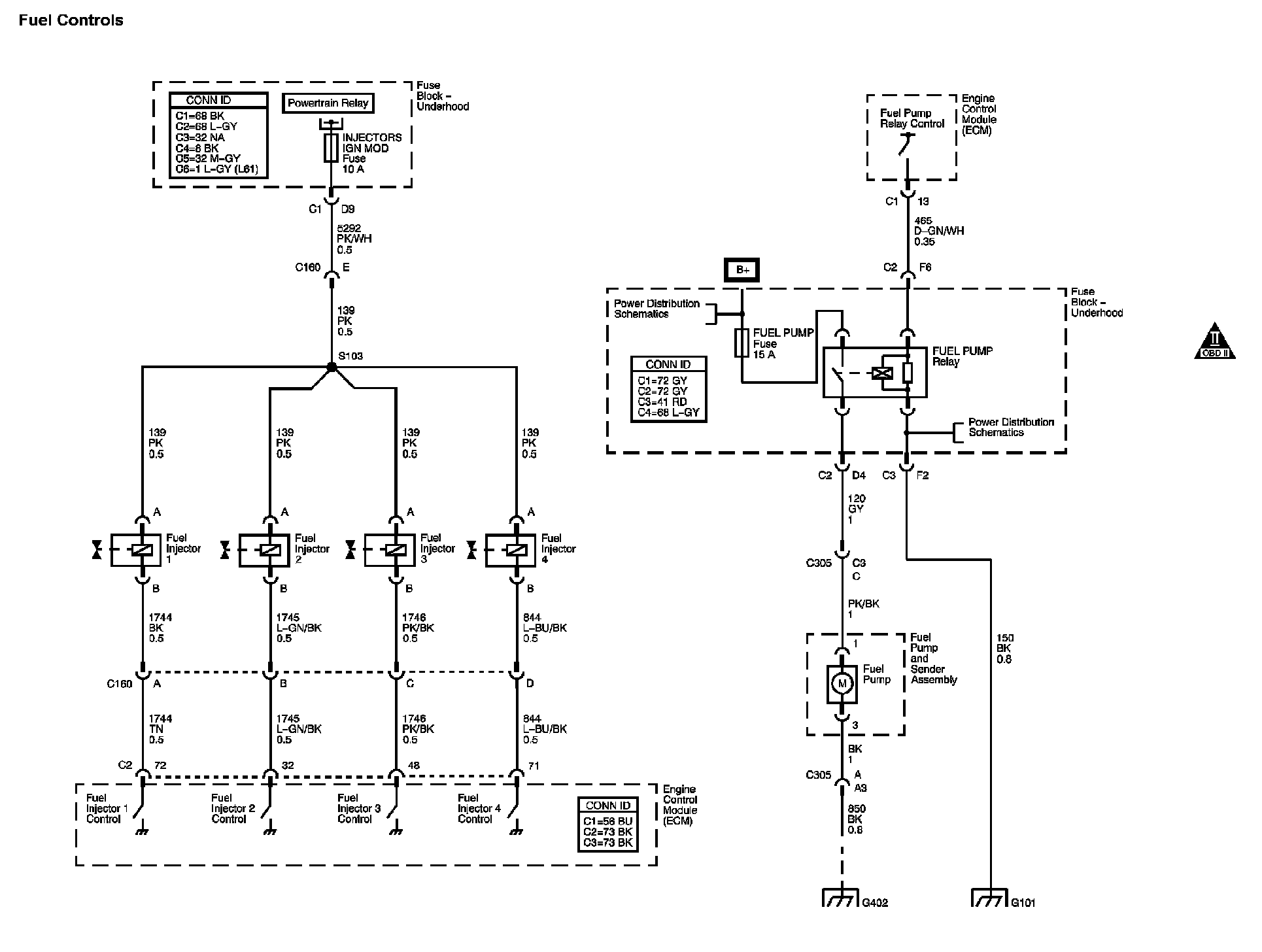

Fuel Delivery







Engine Data Sensors, EVAP, Aftercooler Pump, Supercharger Boost Control Solenoid

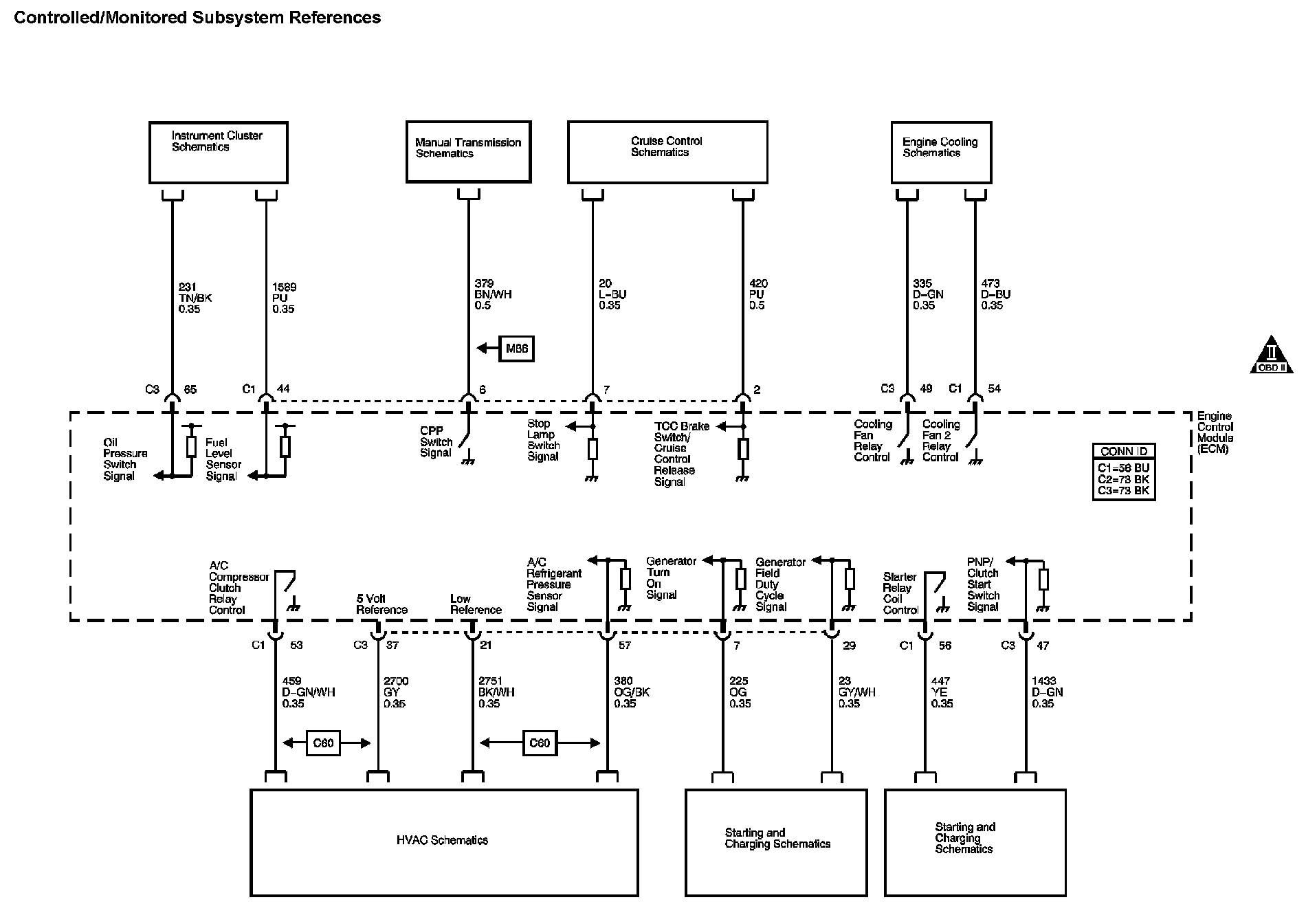

Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
