Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Stop Lamps Inoperative

Stop Lamps Inoperative

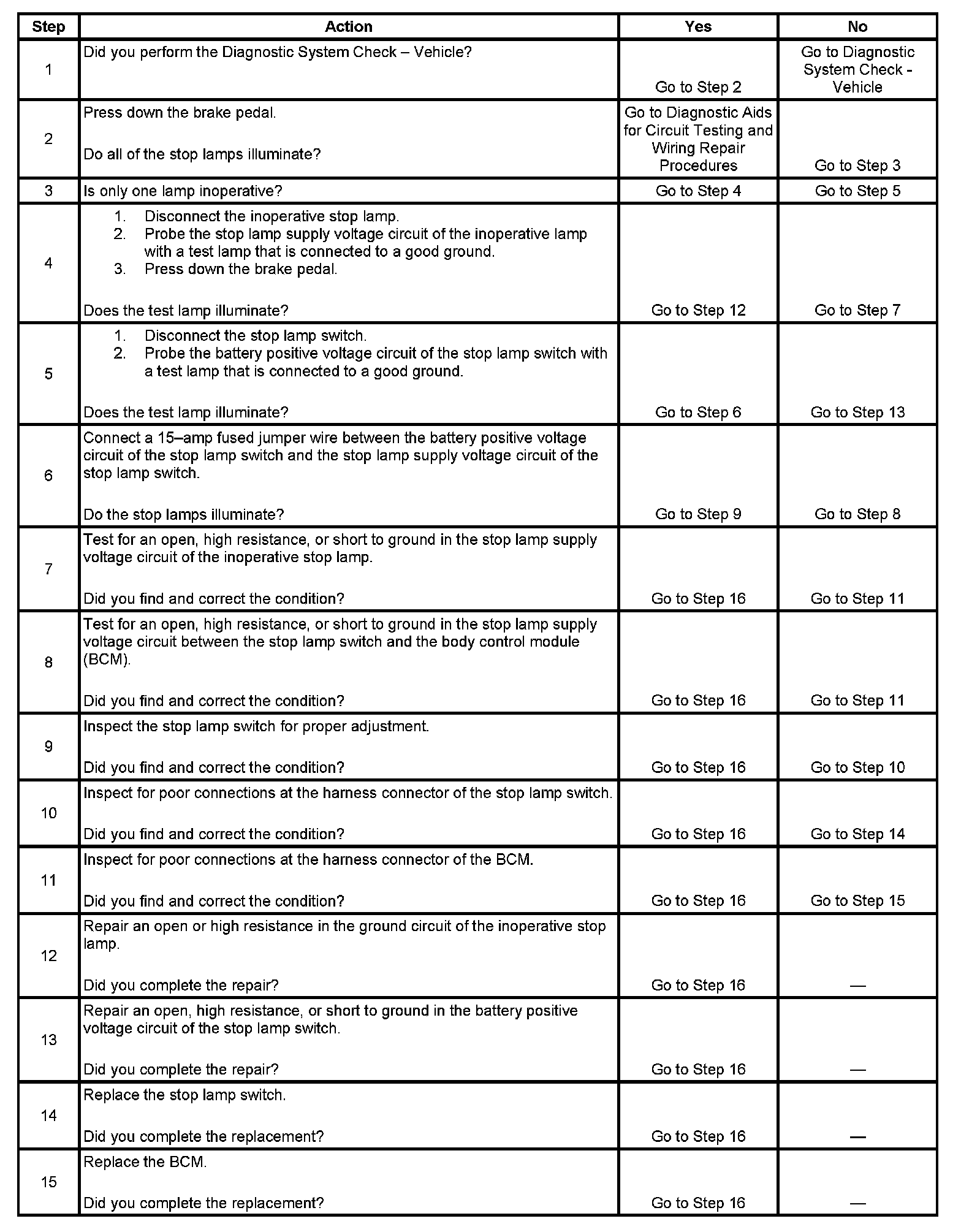

Step 1 - Step 15:

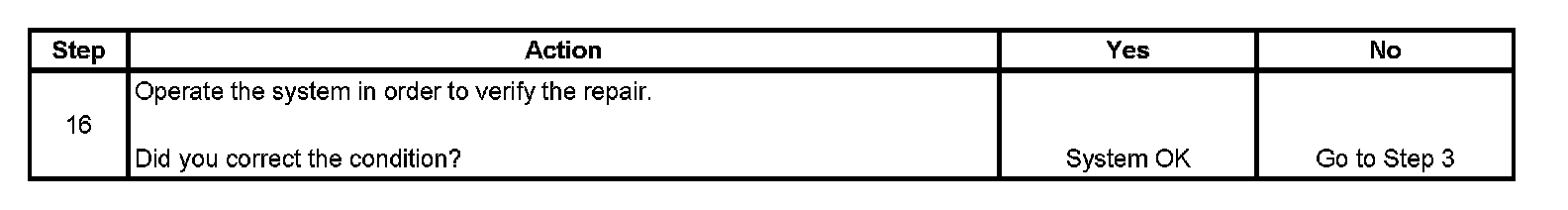

Step 16:
