Brake Light Switch: Diagrams

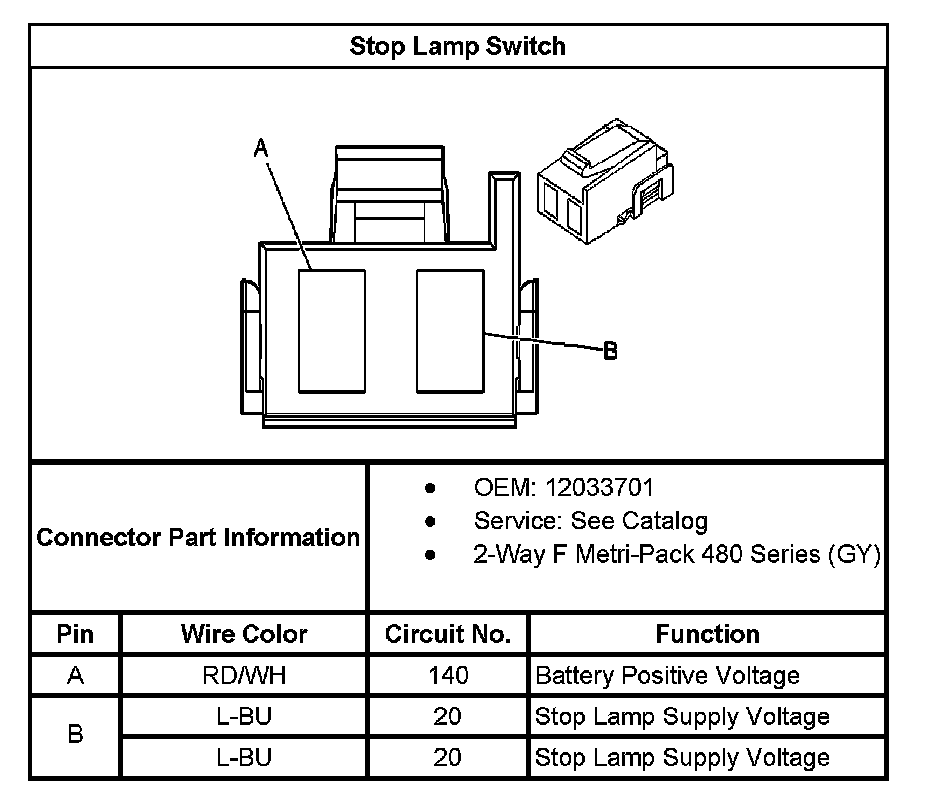

Stop Lamp Switch:



Stop Lamp/TCC Switch (With RPO Code K34, M86 Or MU3):

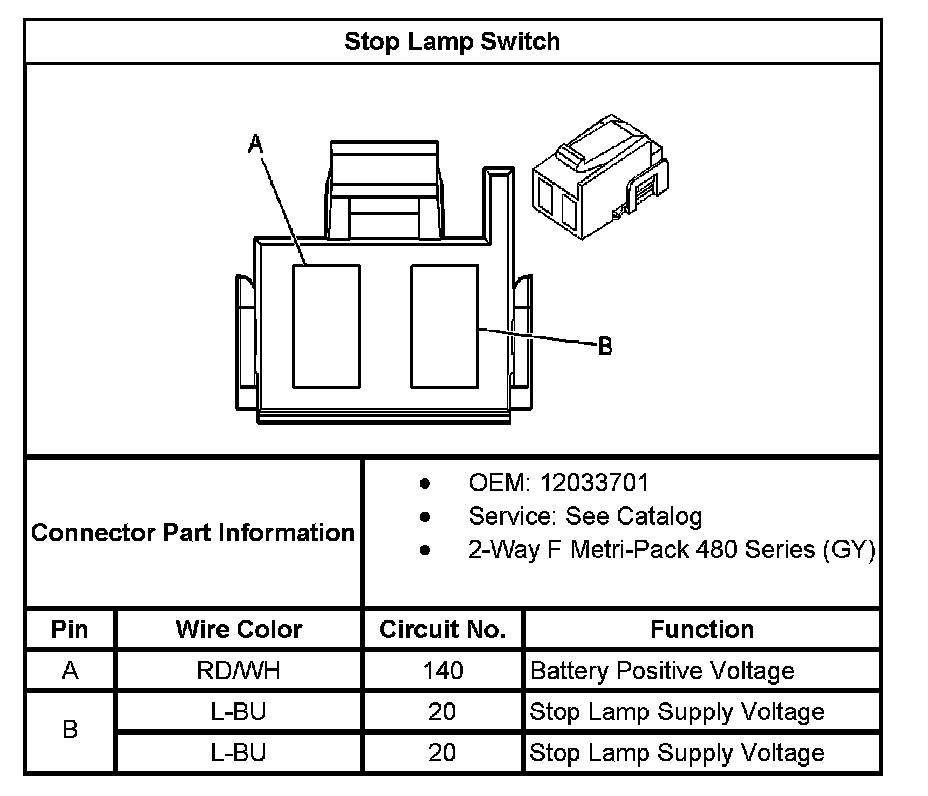

Stop Lamp Switch:
