Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Locations >> Instrument Panel (I/P) - Components

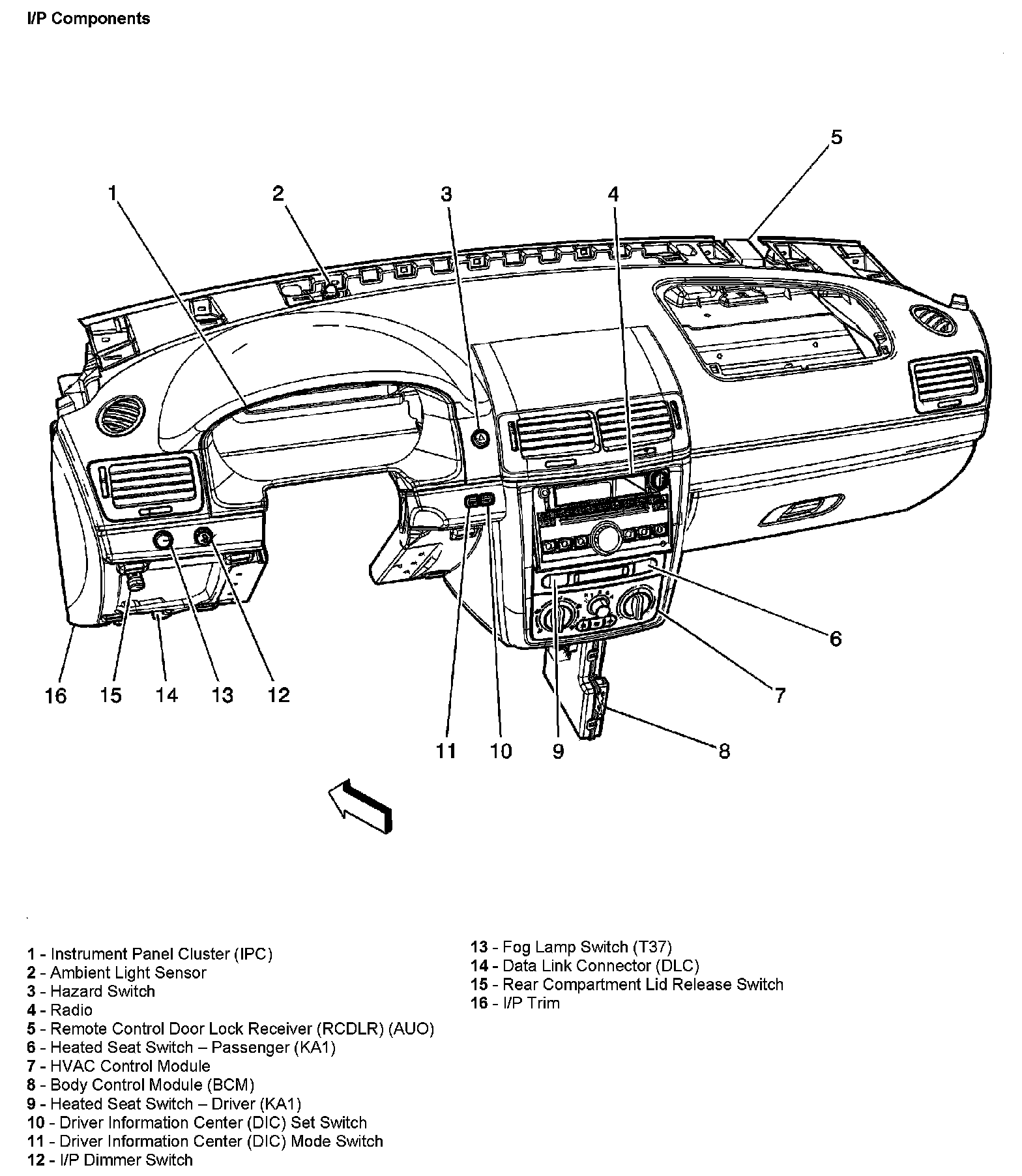

Instrument Panel (I/P) - Components

I/P Components:



I/P Components:
