Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Heating, Ventilation and Air Conditioning >> Noise Diagnosis - Air Conditioning (A/C) System

Noise Diagnosis - Air Conditioning (A/C) System

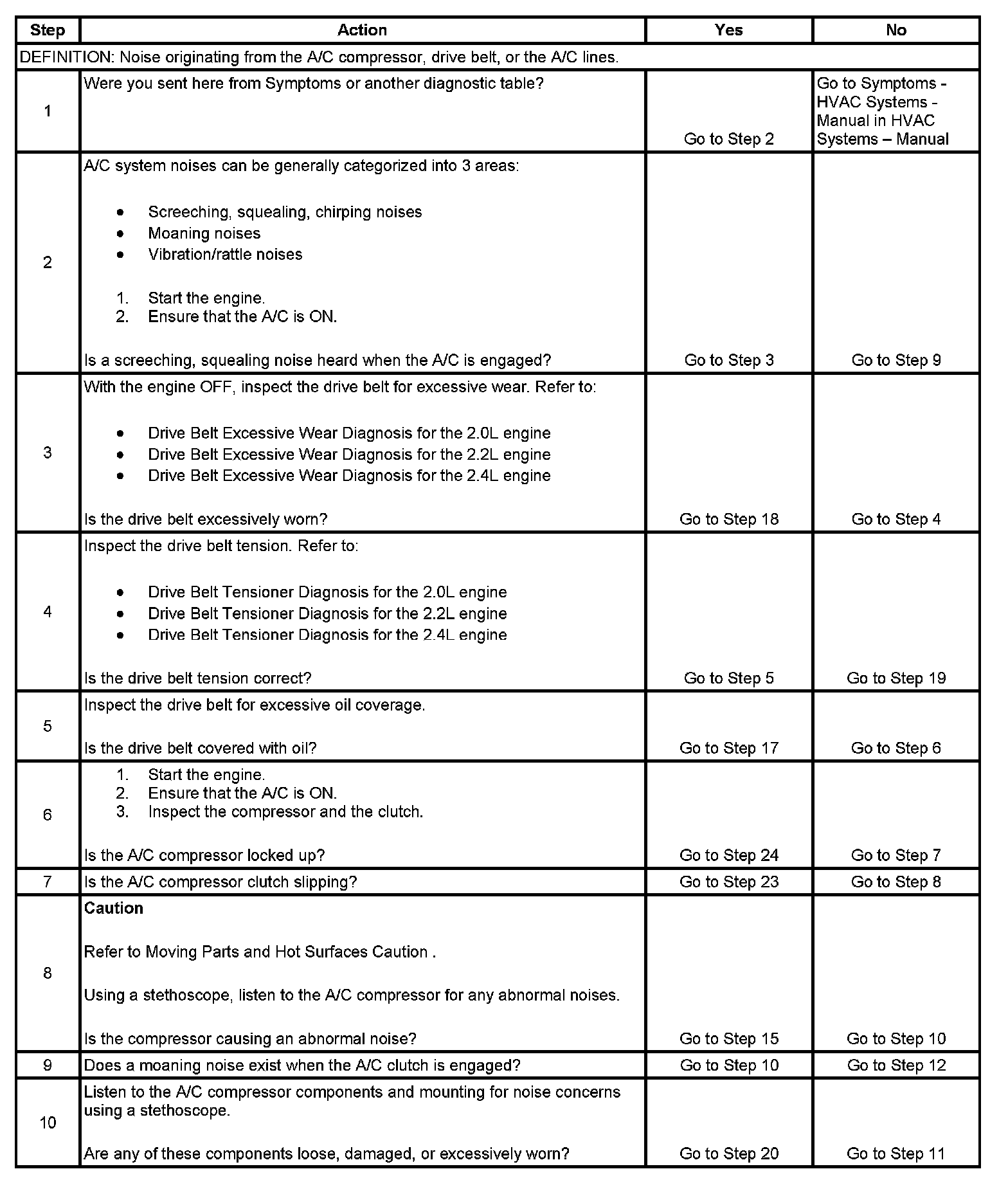

Step 1 - Step 10:

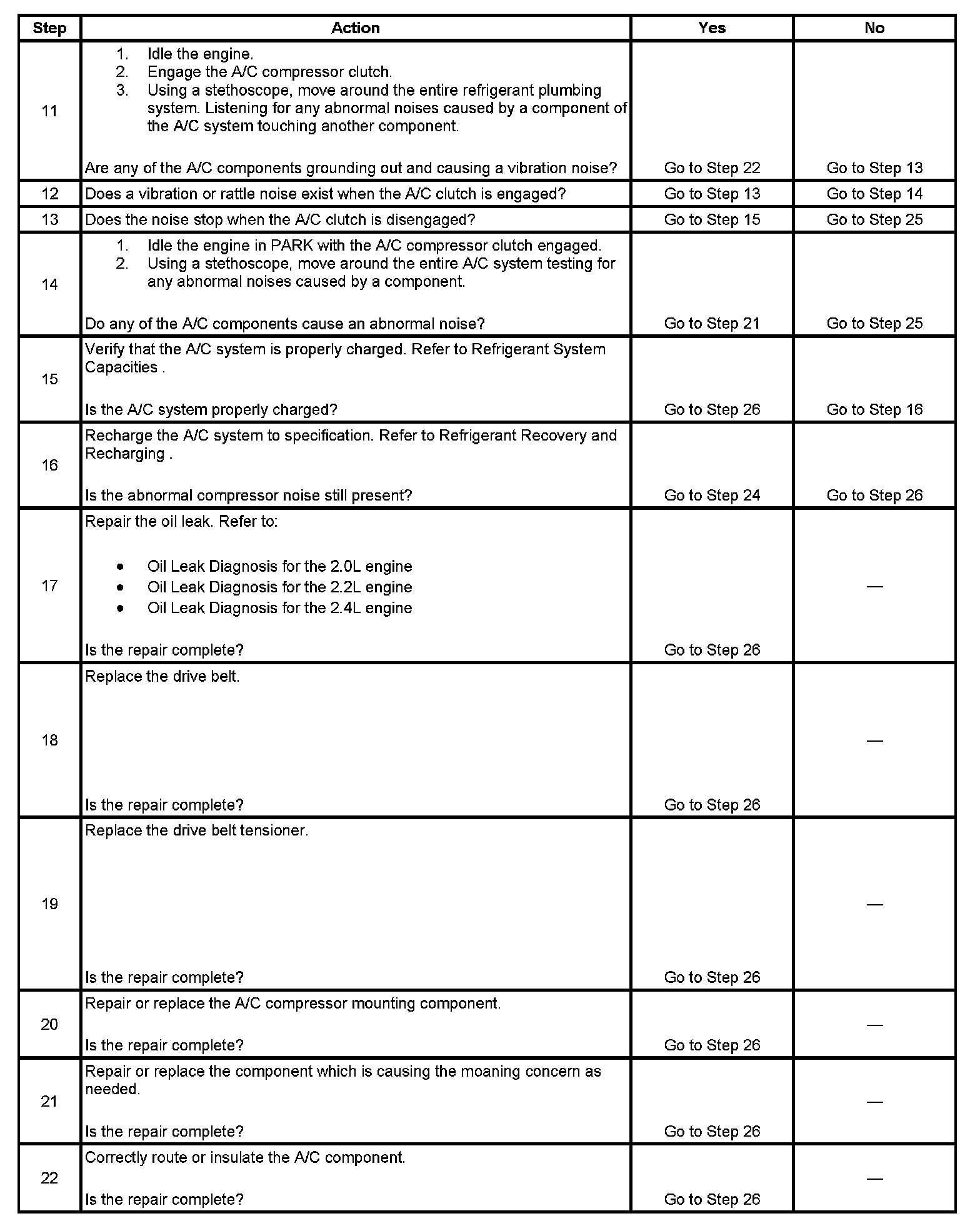

Step 11 - Step 22:

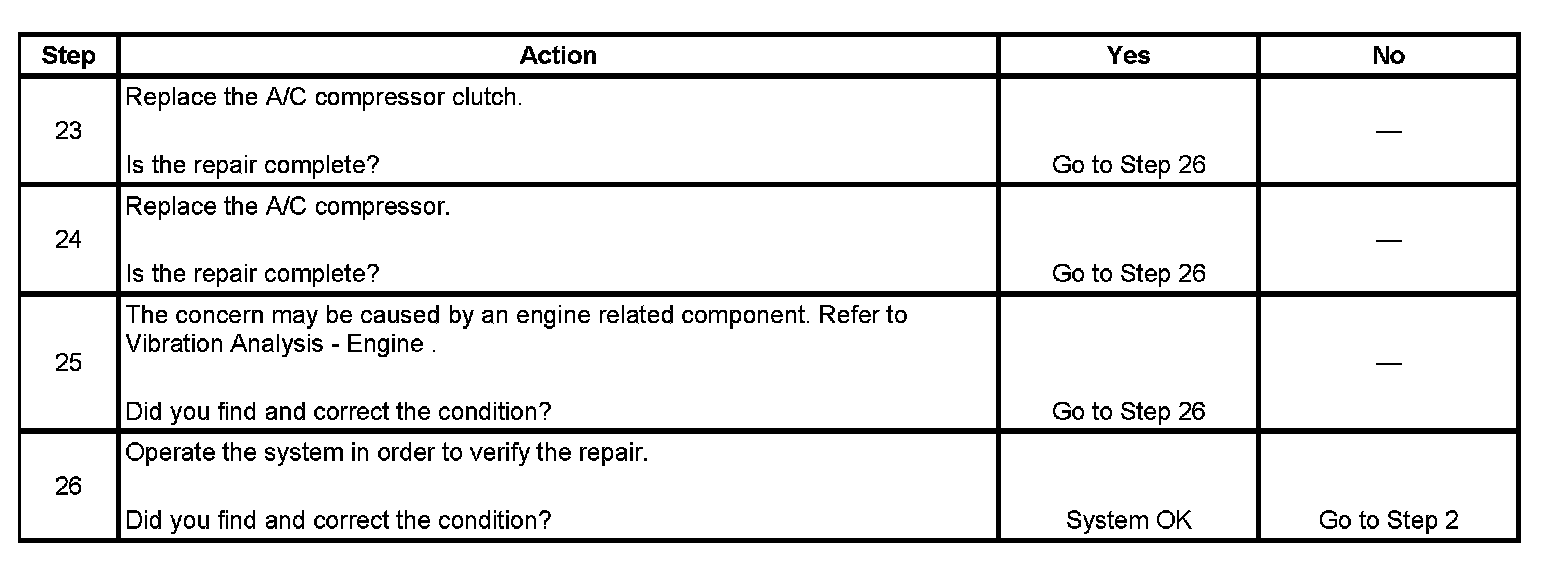

Step 23 - Step 26:
