Air Recirculation Malfunction

AIR RECIRCULATION MALFUNCTION

TEST DESCRIPTION

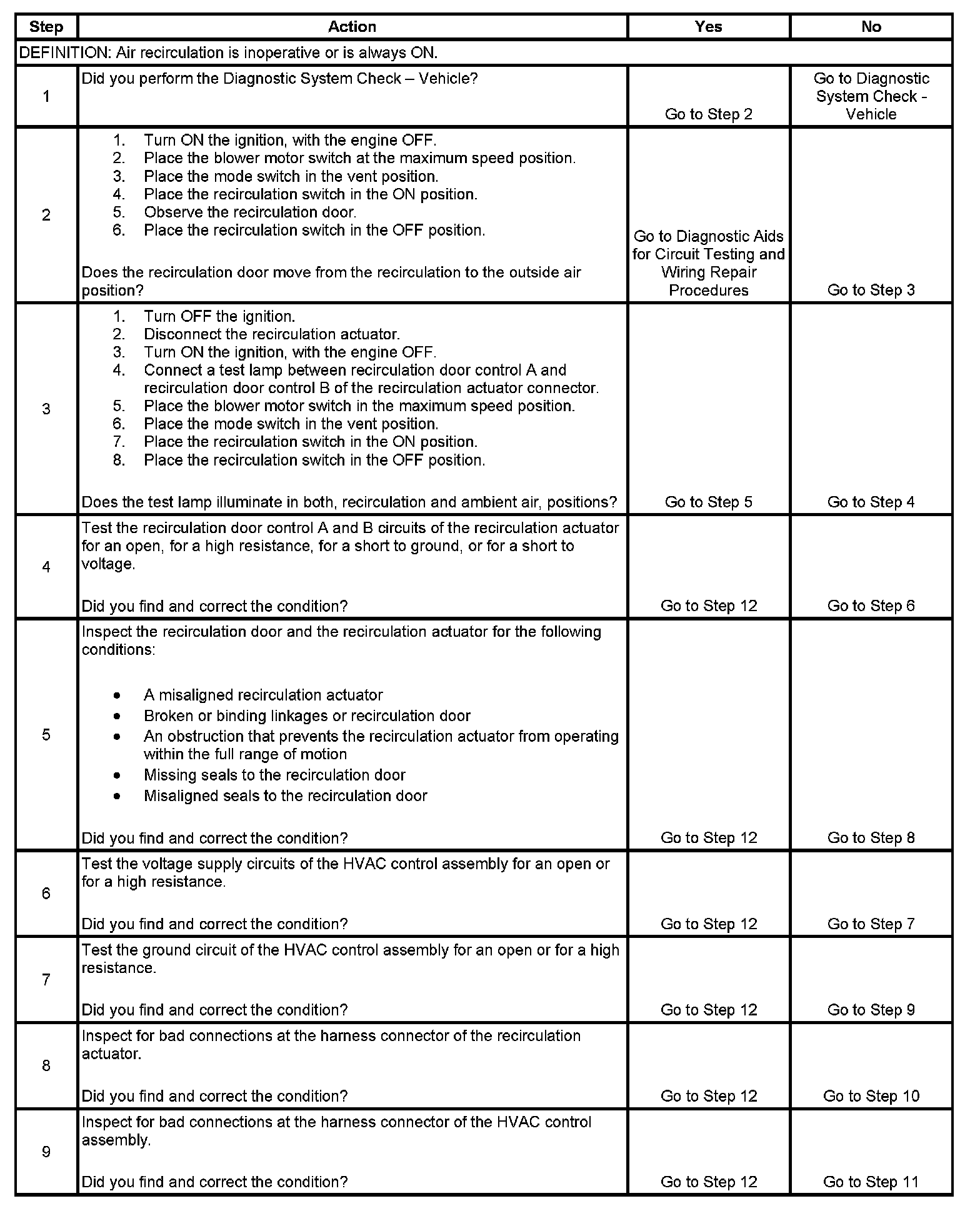

Step 1 - Step 9:

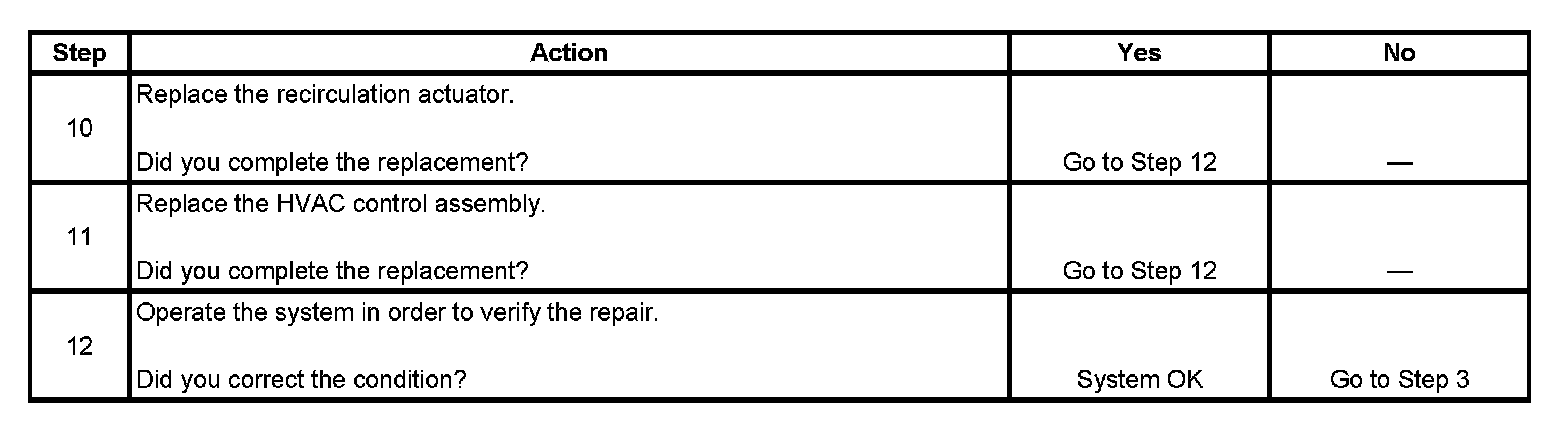

Step 10 - Step 12:

The number below refers to the step number on the diagnostic table.
6. The HVAC control assembly is supplied by 2 voltage circuits. Test both voltage circuits.
