Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Testing and Inspection >> Component Tests and General Diagnostics >> Oil Leak Diagnosis

Oil Leak Diagnosis

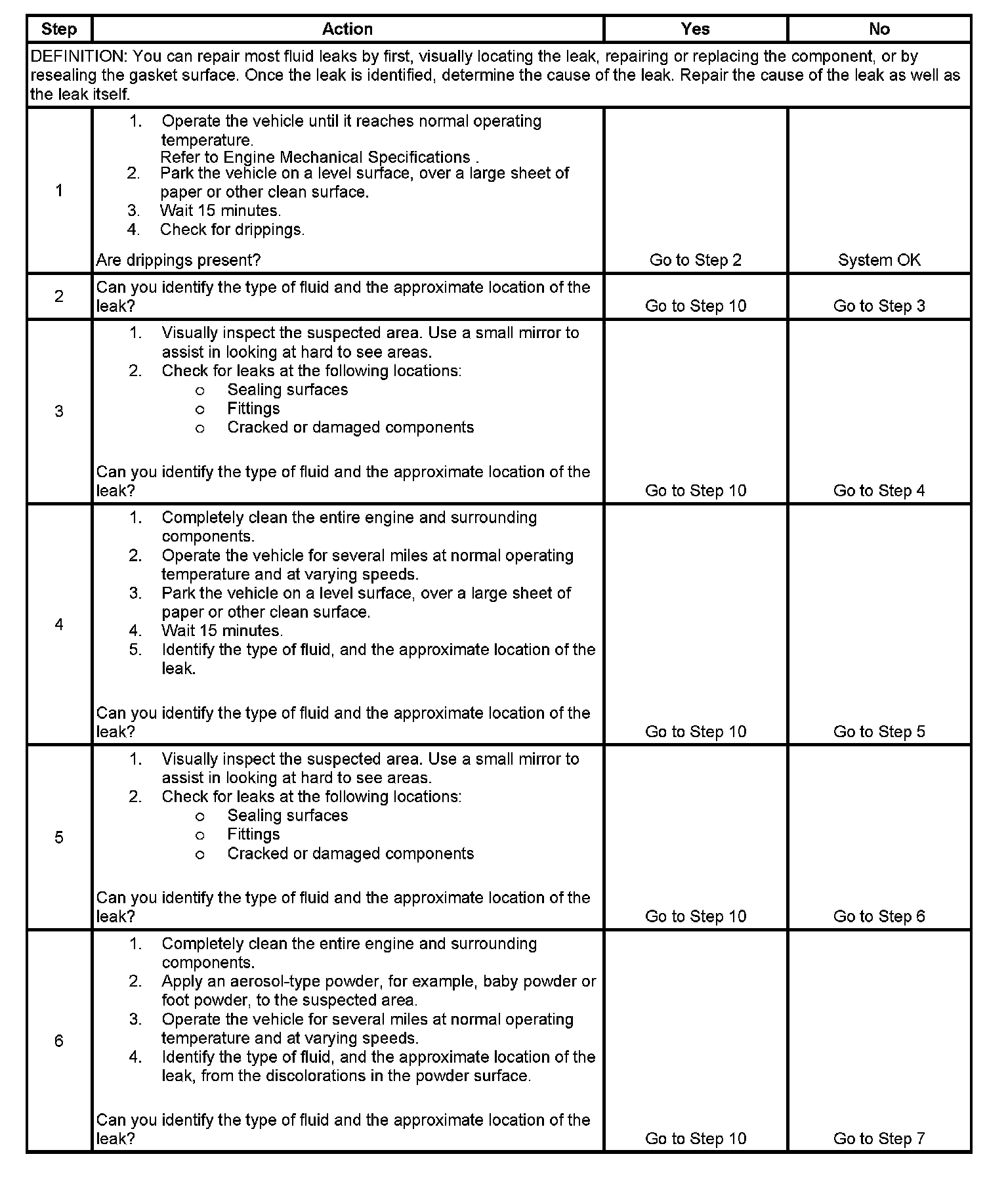

Step 1 - Step 6:

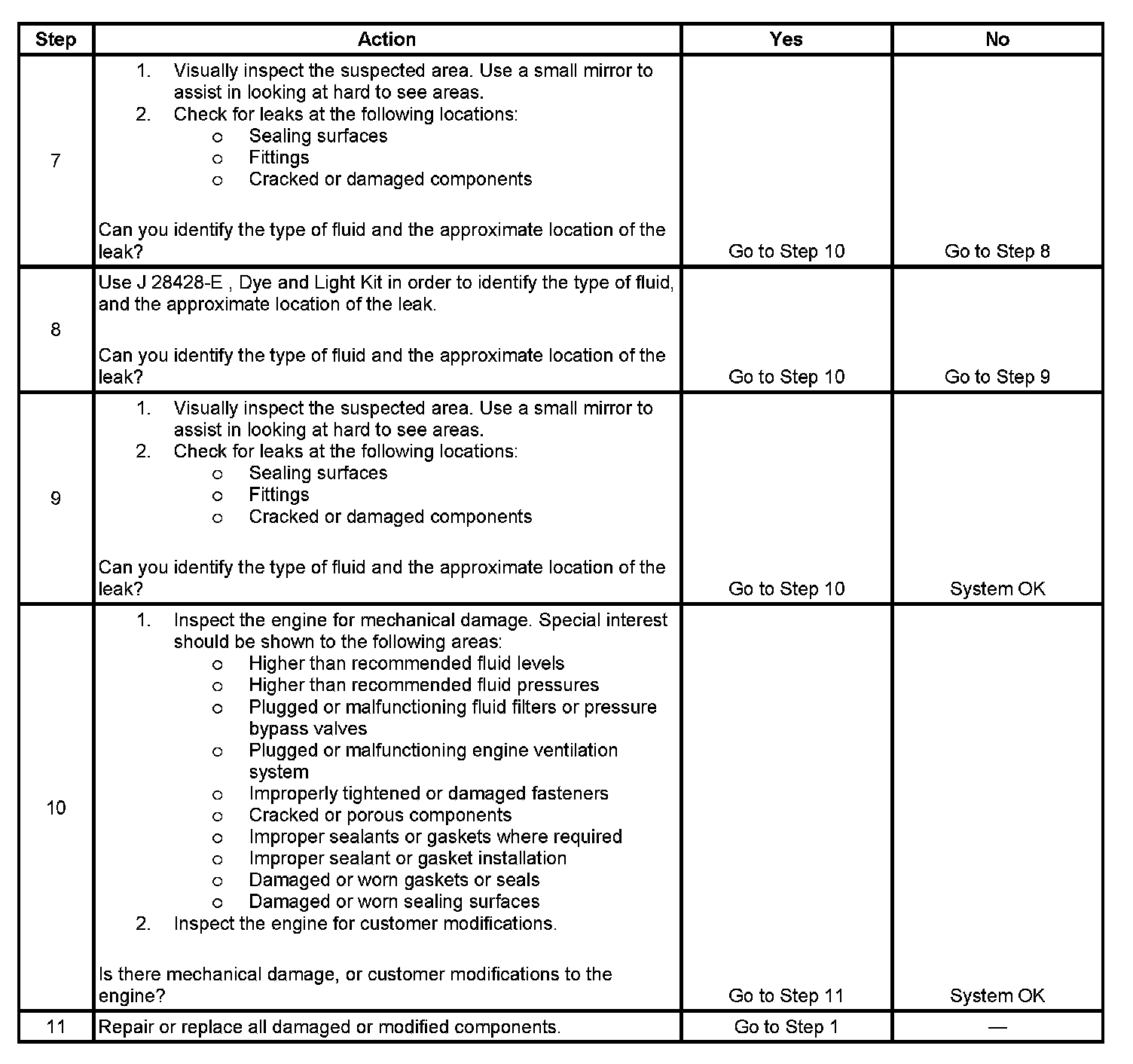

Step 7 - Step 11:
