70. Intake Manifold Installation

Intake Manifold Installation





1. Notice: Refer to Fastener Notice in Service Precautions.

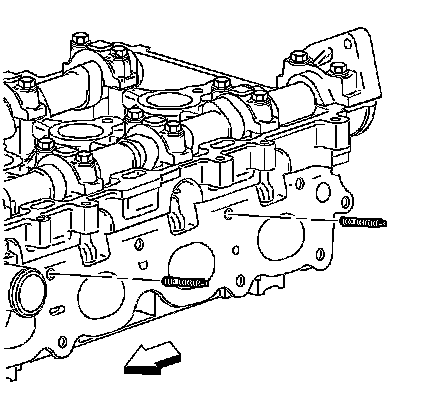

Install the intake manifold studs in the manifold face.
^ Tighten the intake manifold studs to 5 Nm (44 inch lbs.).





2. Install a new intake manifold gasket on the intake manifold.

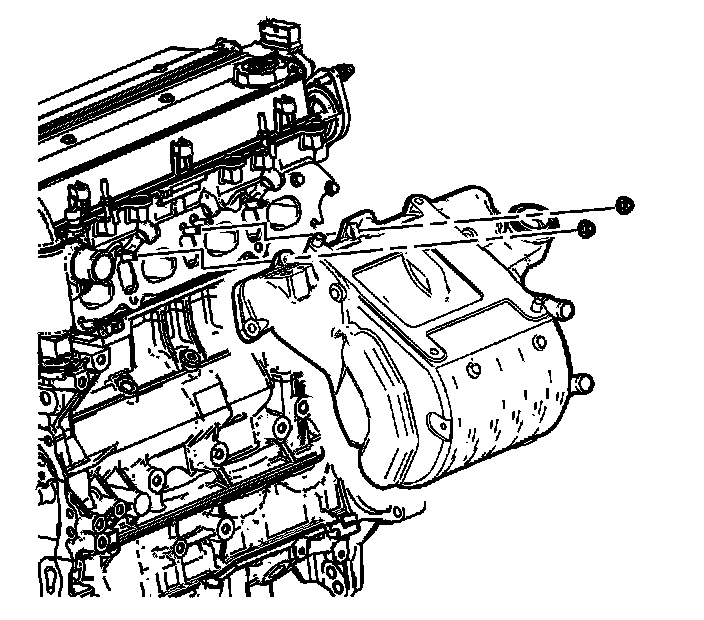

3. Install the intake manifold.
4. Install the intake manifold bolts and nuts.
^ Tighten the bolts and nuts to 22 Nm (16 ft. lbs.).
