68. Crankshaft Balancer Installation

Crankshaft Balancer Installation
^ J 38122-A Crankshaft Balancer Holder
^ J 45059 Angle Meter





1. Notice: Ensure both components are aligned correctly or serious engine damage will occur.

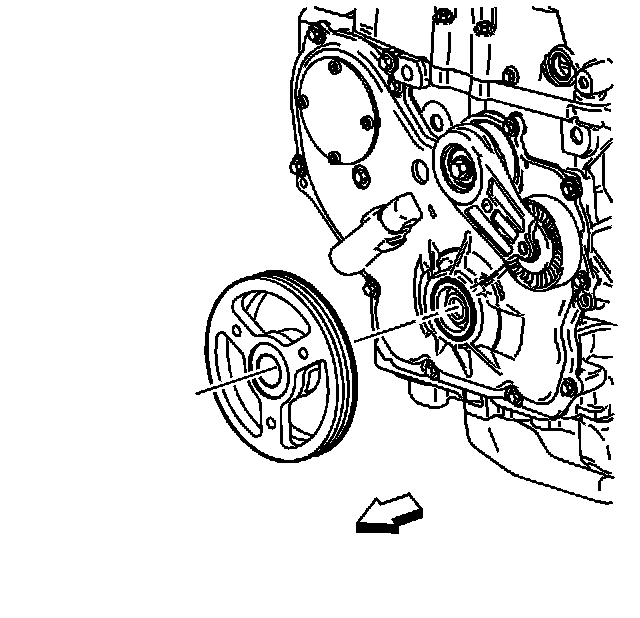

Install the balancer onto the crankshaft indexing keyway. Use care to properly align the keyway and flats on the balancer with the oil pump drive.





2. Install the J 38122-A.

3. Notice: Refer to Fastener Notice in Service Precautions.

Important: Always install a new crankshaft balancer retaining bolt and washer.

Install a new retaining bolt and washer. Use the J 38122-A and a breaker bar to prevent the crankshaft from rotating when tightening the bolt.
^ Tighten the bolt to 100 Nm (74 ft. lbs.) plus 125 degrees using the J 45059.
