65. Camshaft Position Sensor Housing Installation

Camshaft Position Sensor Housing Installation





1. Rotate the crankshaft until number 4 piston is at top dead center (TDC) on the compression stroke. Refer to the crankshaft damper-to-front-cover timing marks.
2. Install a NEW camshaft position sensor housing seal.

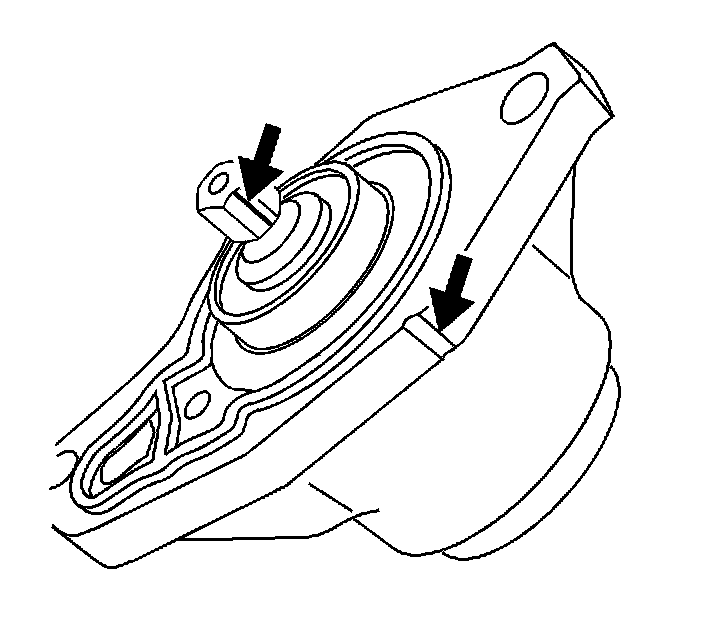

3. Align the timing mark on the housing with the timing mark on the hex shaft.





4. Install the camshaft position sensor housing.

5. Notice: Refer to Fastener Notice in Service Precautions.

Install the camshaft position sensor housing studs.
^ Tighten the camshaft position sensor housing studs to 22 Nm (16 ft. lbs.).
