Upper Intake Manifold Sight Shield Replacement

Upper Intake Manifold Sight Shield Replacement

Removal Procedure

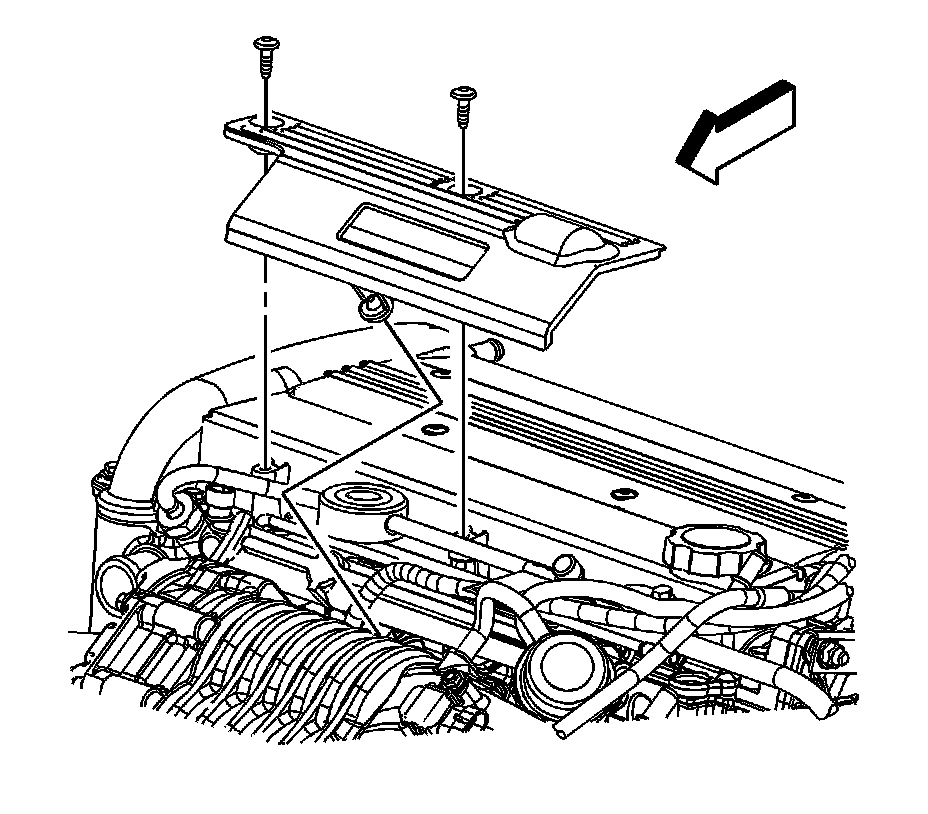

1. Remove the intake manifold sight shield screws.
2. Remove the intake manifold sight shield.

Installation Procedure





1. Install the intake manifold sight shield.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the intake manifold sight shield screws.
^ Tighten the screws to 9 Nm (80 inch lbs.).
