Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Cooling Fan Inoperative

Cooling Fan Inoperative

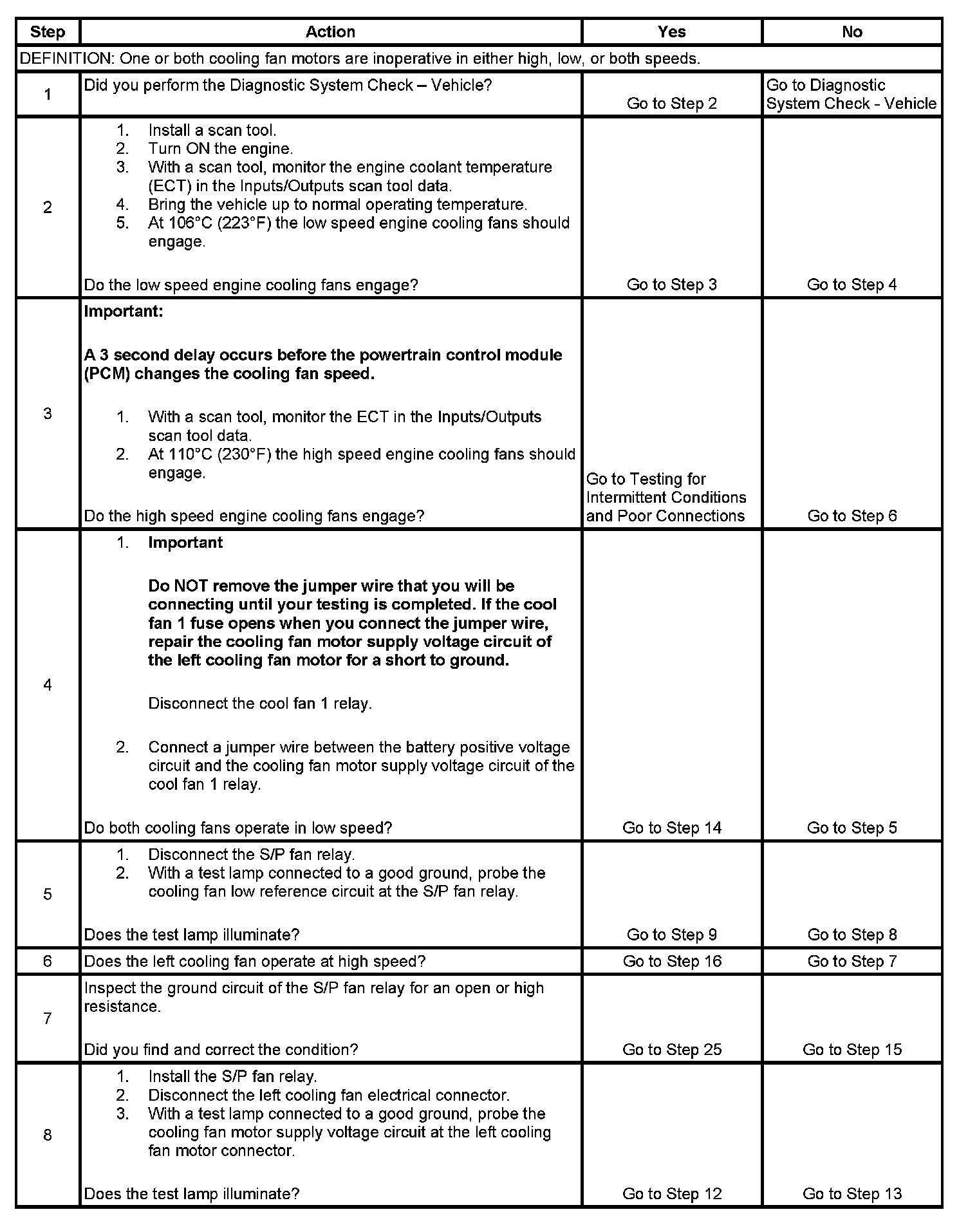

Step 1 - Step 8:



Step 9 - Step 23:

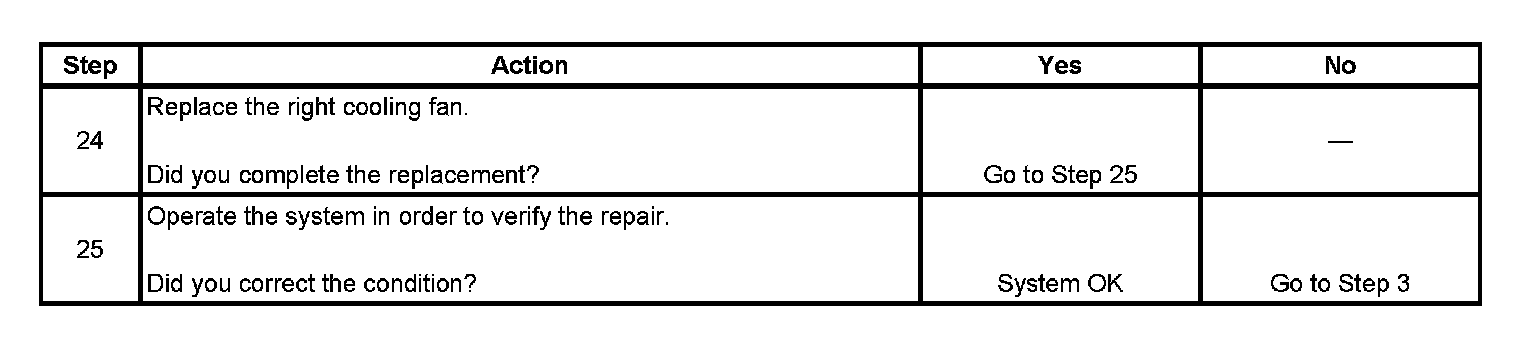

Step 24 - Step 25:
