G111
G111
G111

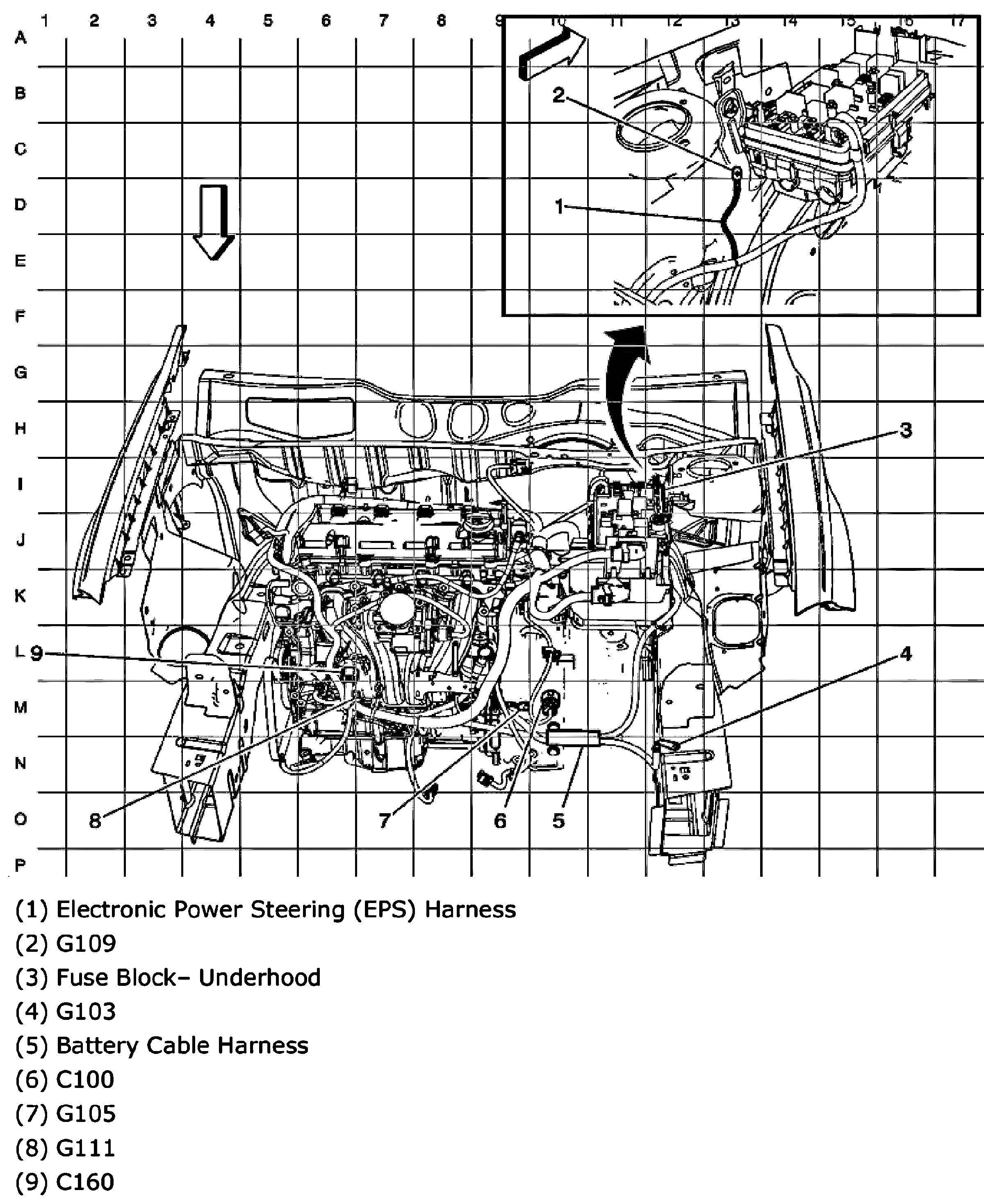

(CKT 1150) In the rear of the engine compartment on the left strut tower at the base of the hood support.
