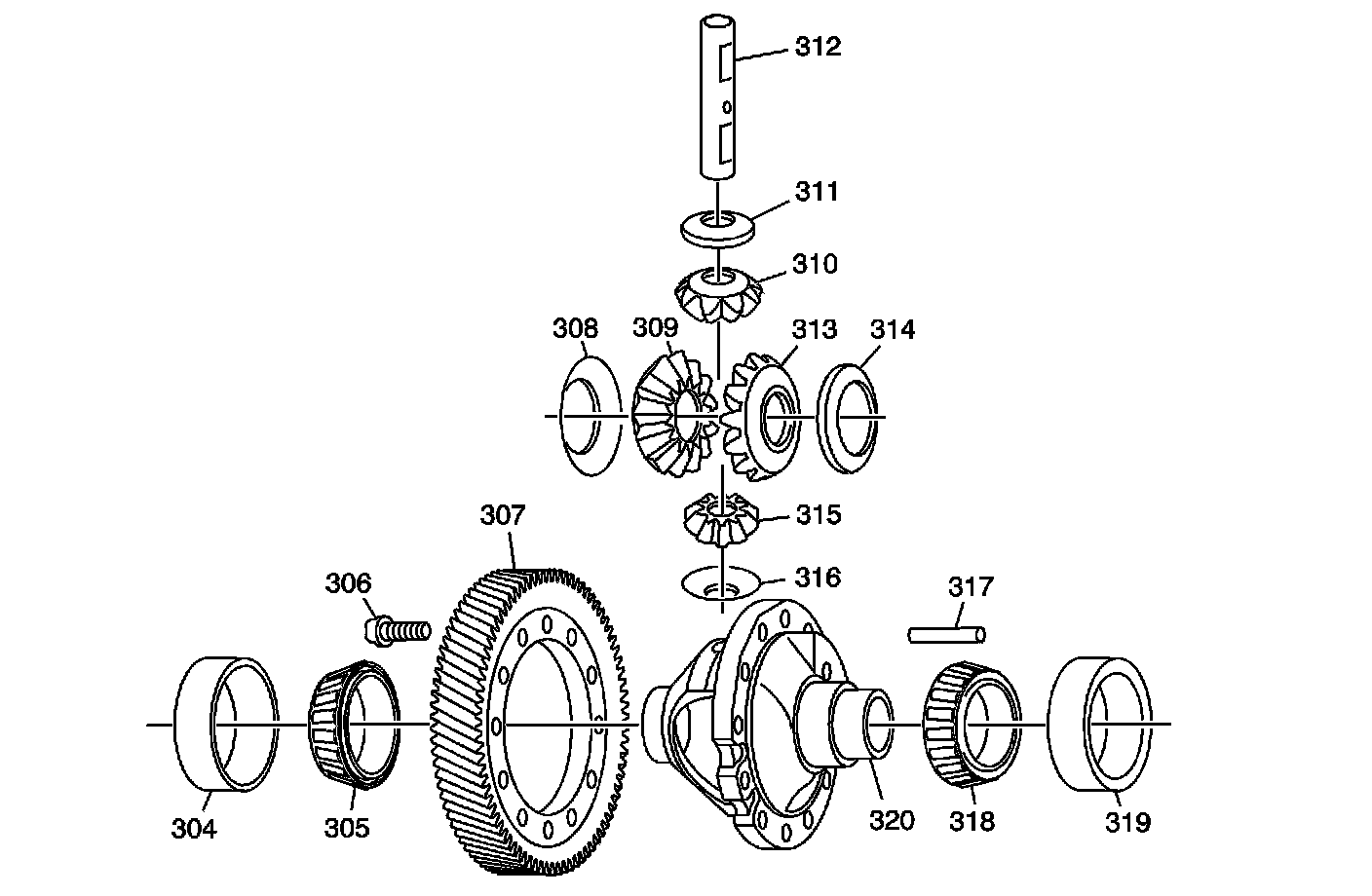

Differential Assembly Components

Disassembled Views

Differential Assembly Components:

304 - Differential Bearing Race
305 - Differential Bearing
306 - Differential Ring Gear Bolt
307 - Differential Ring Gear
308 - Differential Side Gear Thrust Washer
309 - Differential Side Gear
310 - Differential Pinion Gear
311 - Differential Pinion Gear Thrust Washer
312 - Differential Pinion Gear Shaft
313 - Differential Side Gear
314 - Differential Side Gear Thrust Washer
315 - Differential Pinion Gear
316 - Differential Pinion Gear Thrust Washer
317 - Differential Pinion Gear Shaft Locking Pin
318 - Differential Bearing
319 - Differential Bearing Race
320 - Differential Case
