Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> RR

RR

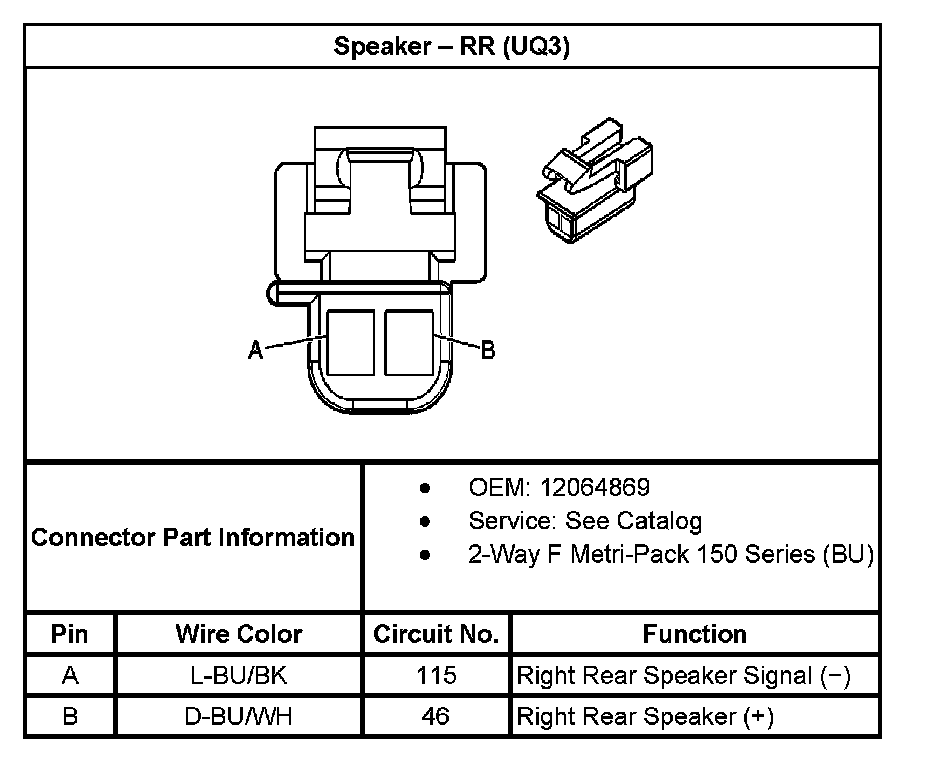

Speaker - RR (With RPO Code UQ3):

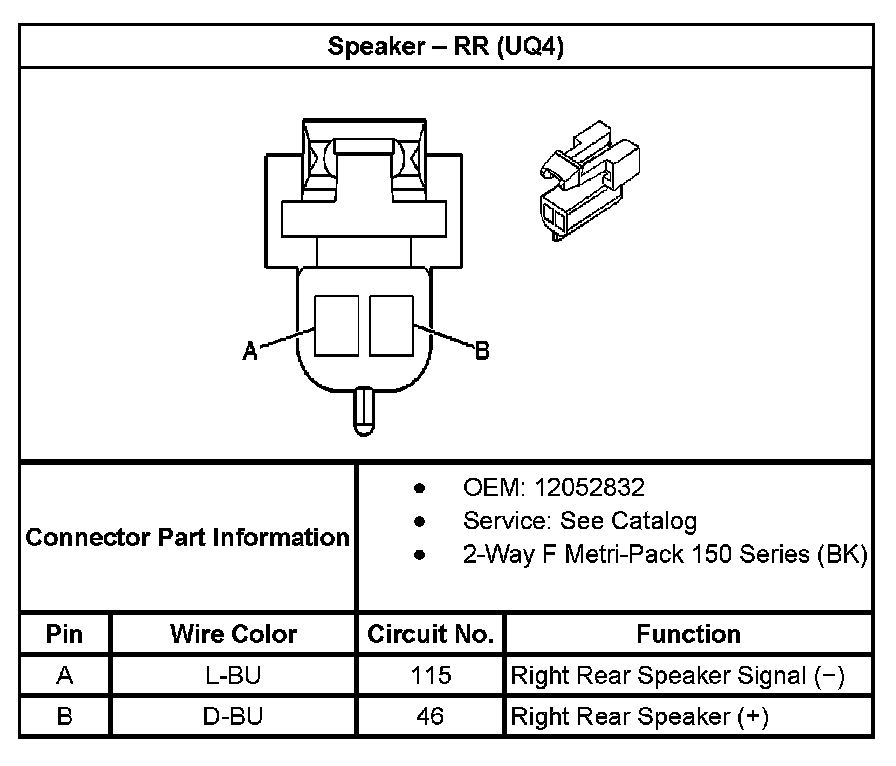

Speaker - RR (With RPO Code UQ4):
