Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> LR

LR

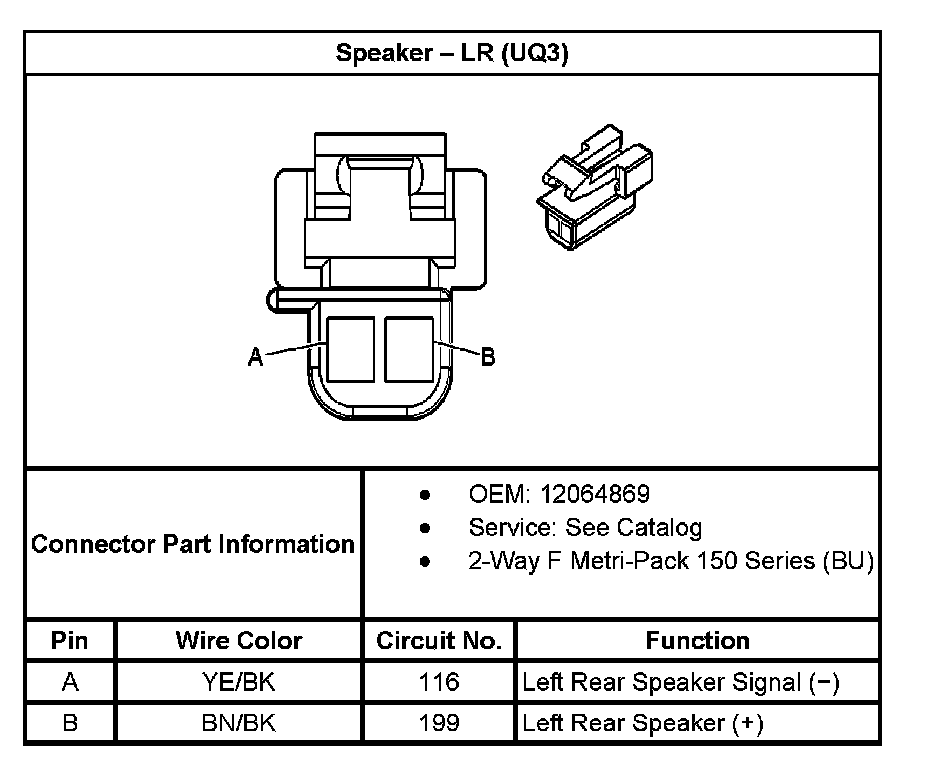

Speaker - LR (With RPO Code UQ3):

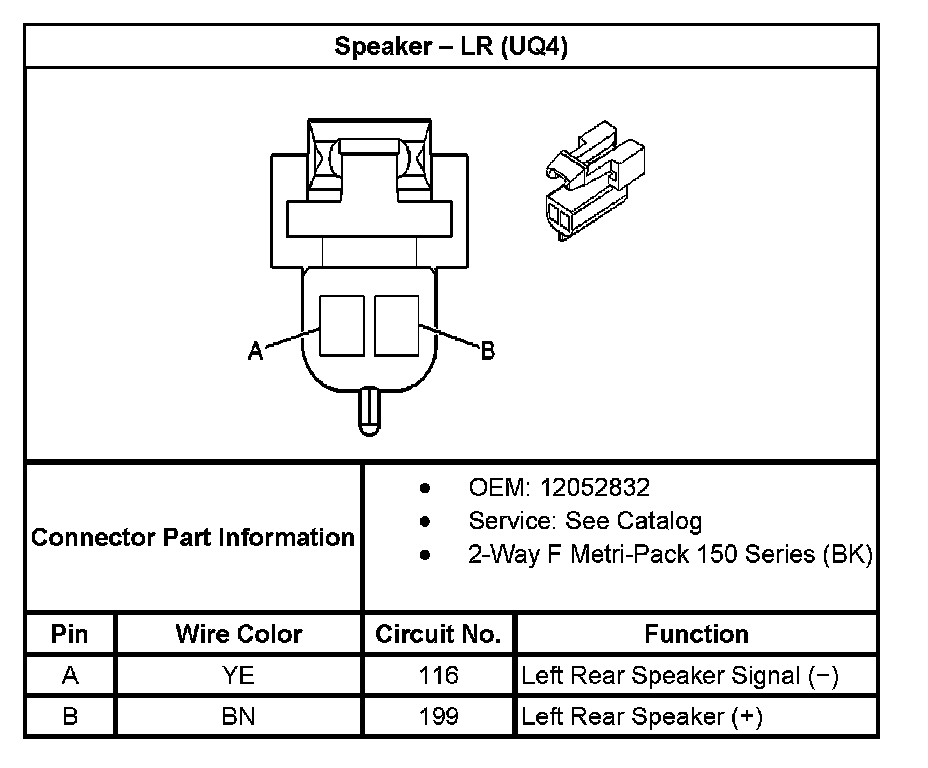

Speaker - LR (With RPO Code UQ4):
