Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> LF Door Tweeter

LF Door Tweeter

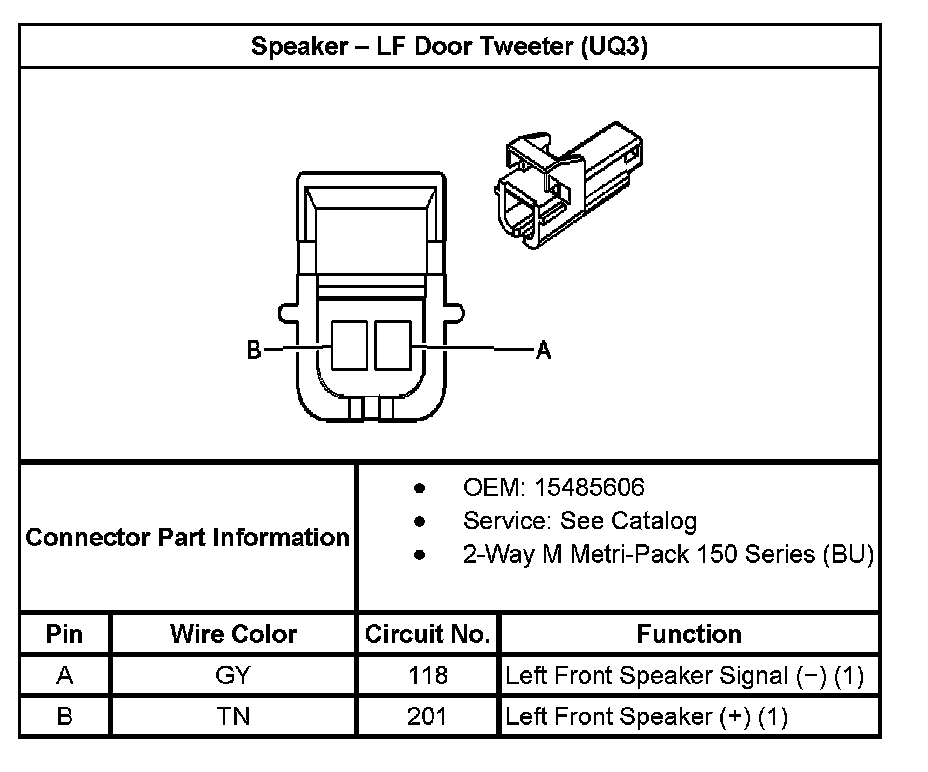

Speaker - LF Door Tweeter (With RPO Code UQ3):
