Speaker
>>
LF Door
LF Door

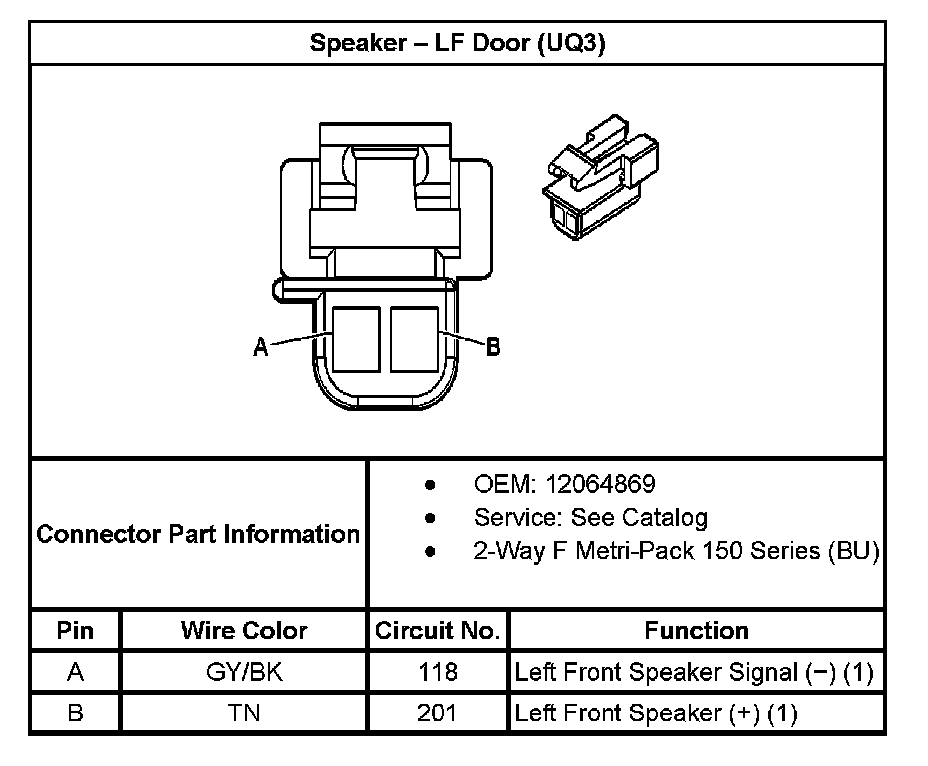

Speaker - LF Door (With RPO Code UQ3):

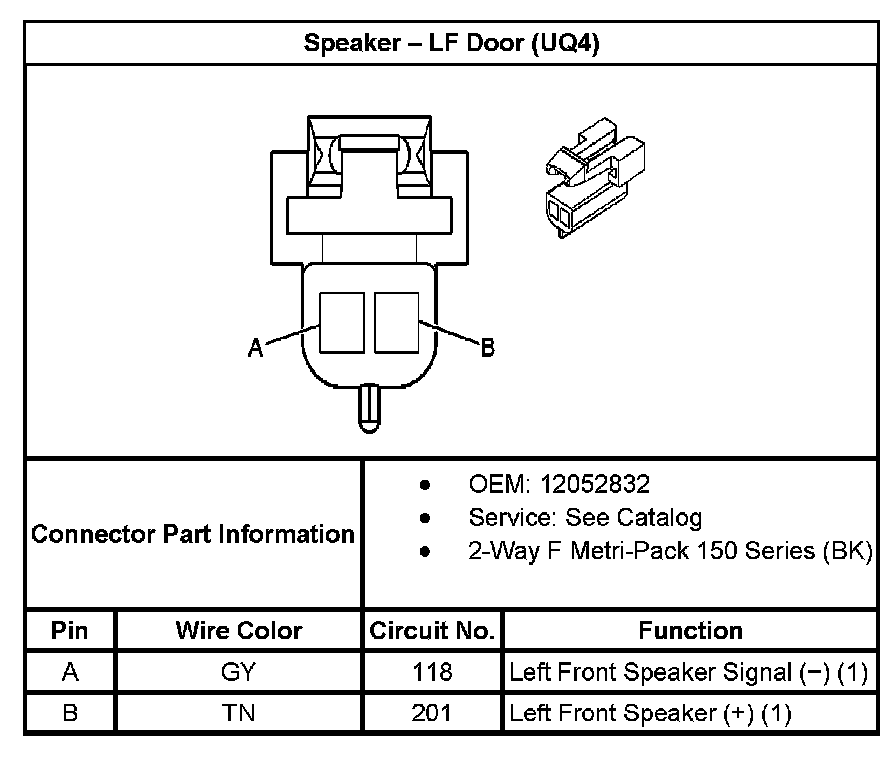

Speaker - LF Door (With RPO Code UQ4):
