Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Digital Radio Receiver

Digital Radio Receiver

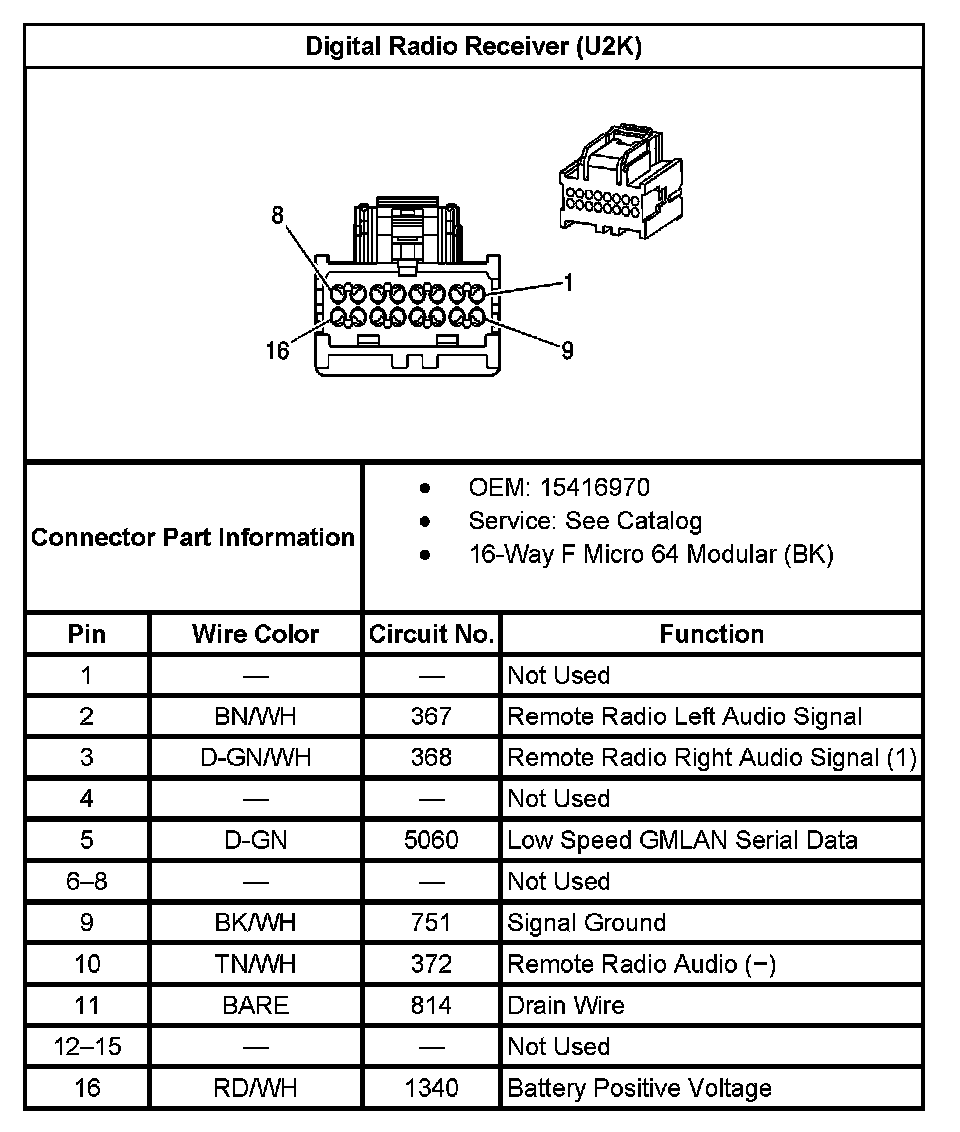

Digital Radio Receiver (With RPO Code U2K):
