Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Window Switch - LR

Window Switch - LR

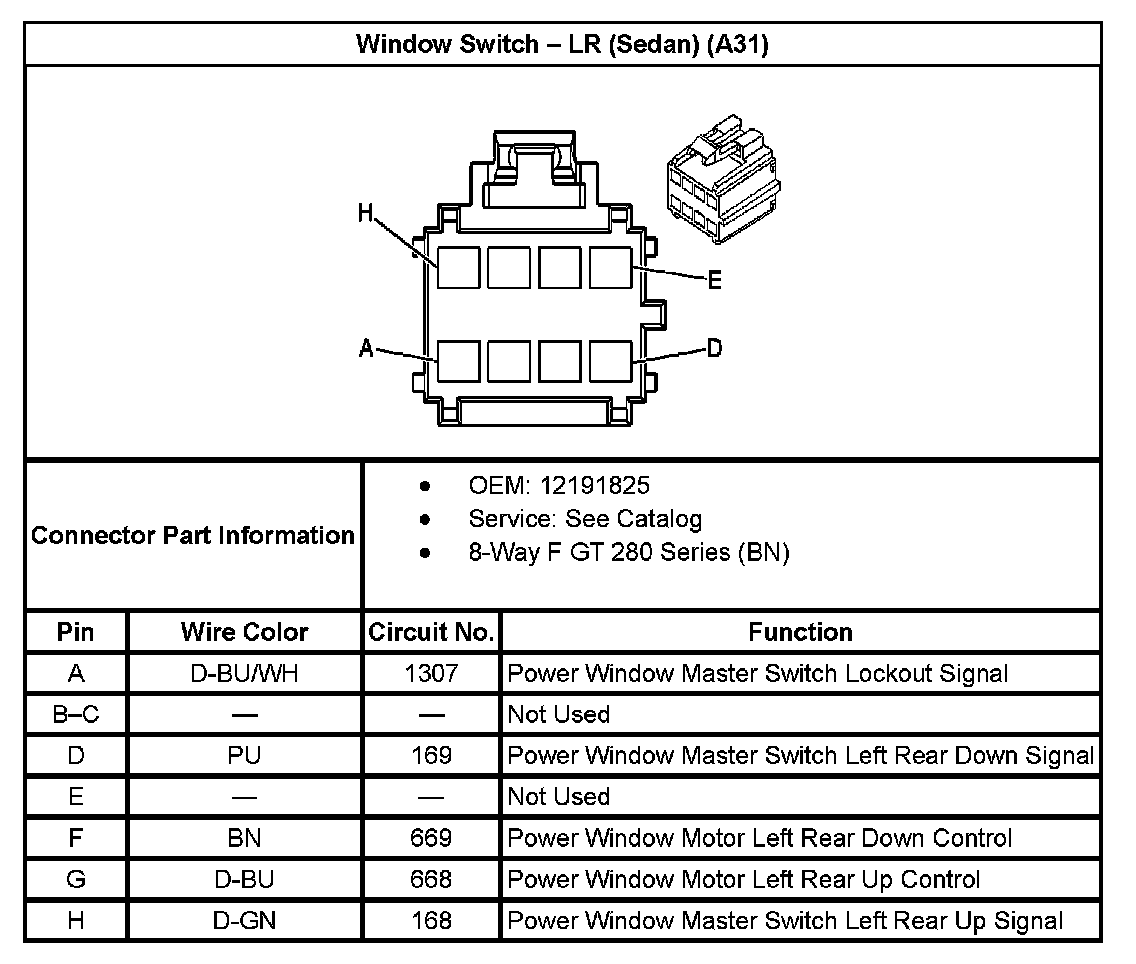

Window Switch - LR (Sedan) (With RPO Code A31):
