Chevrolet
>>
2006
>>
Cobalt L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

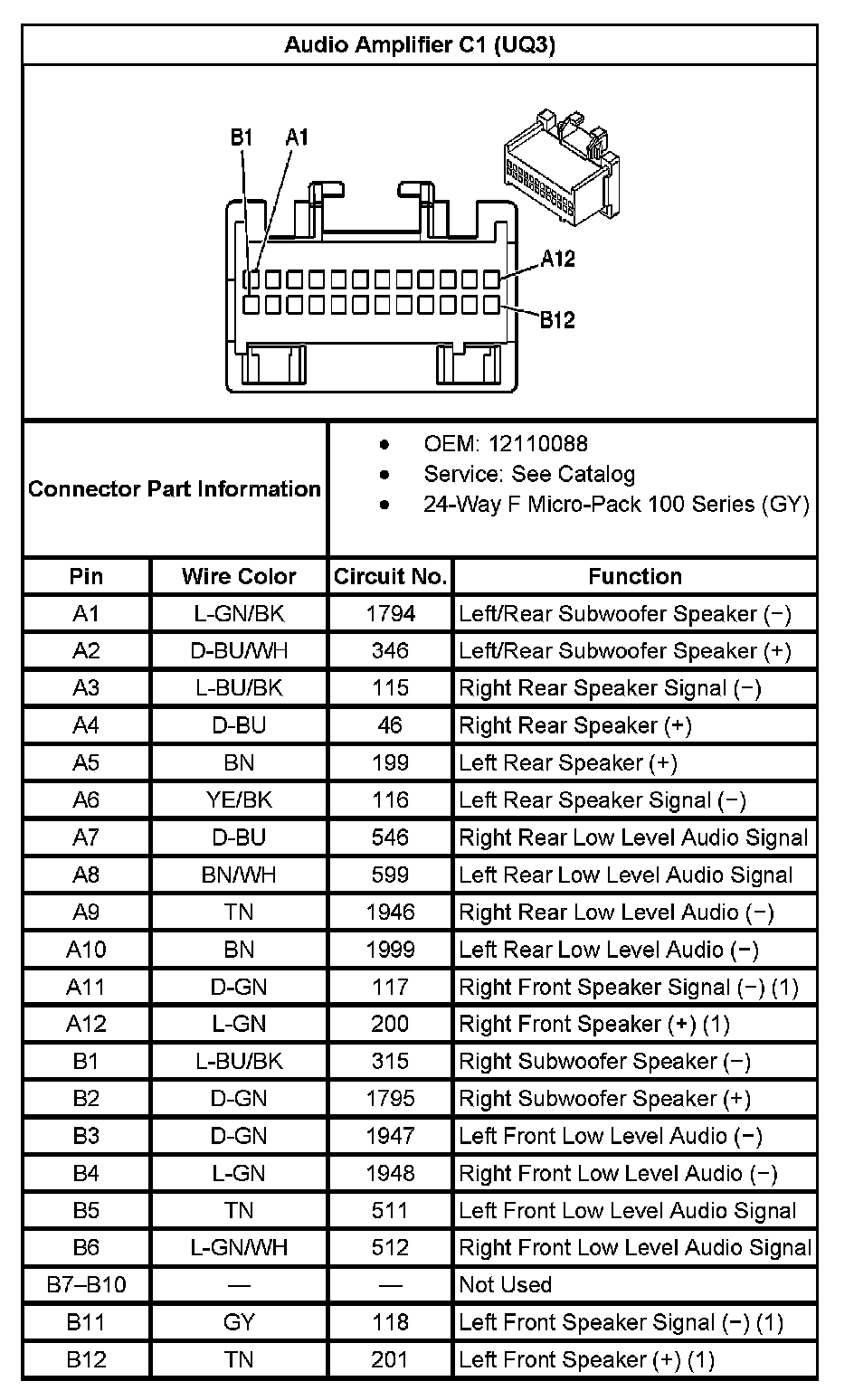

Audio Amplifier C1 (With RPO Code UQ3):

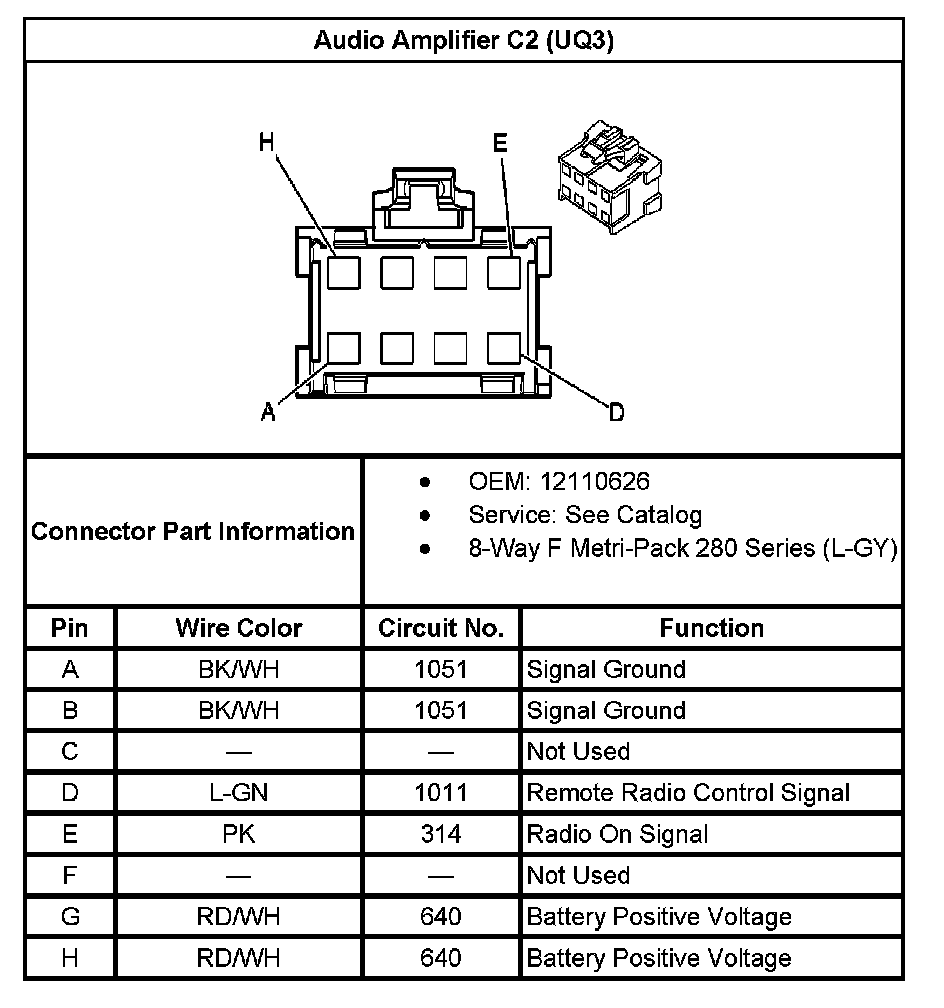

Audio Amplifier C2 (With RPO Code UQ3):
