Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Components

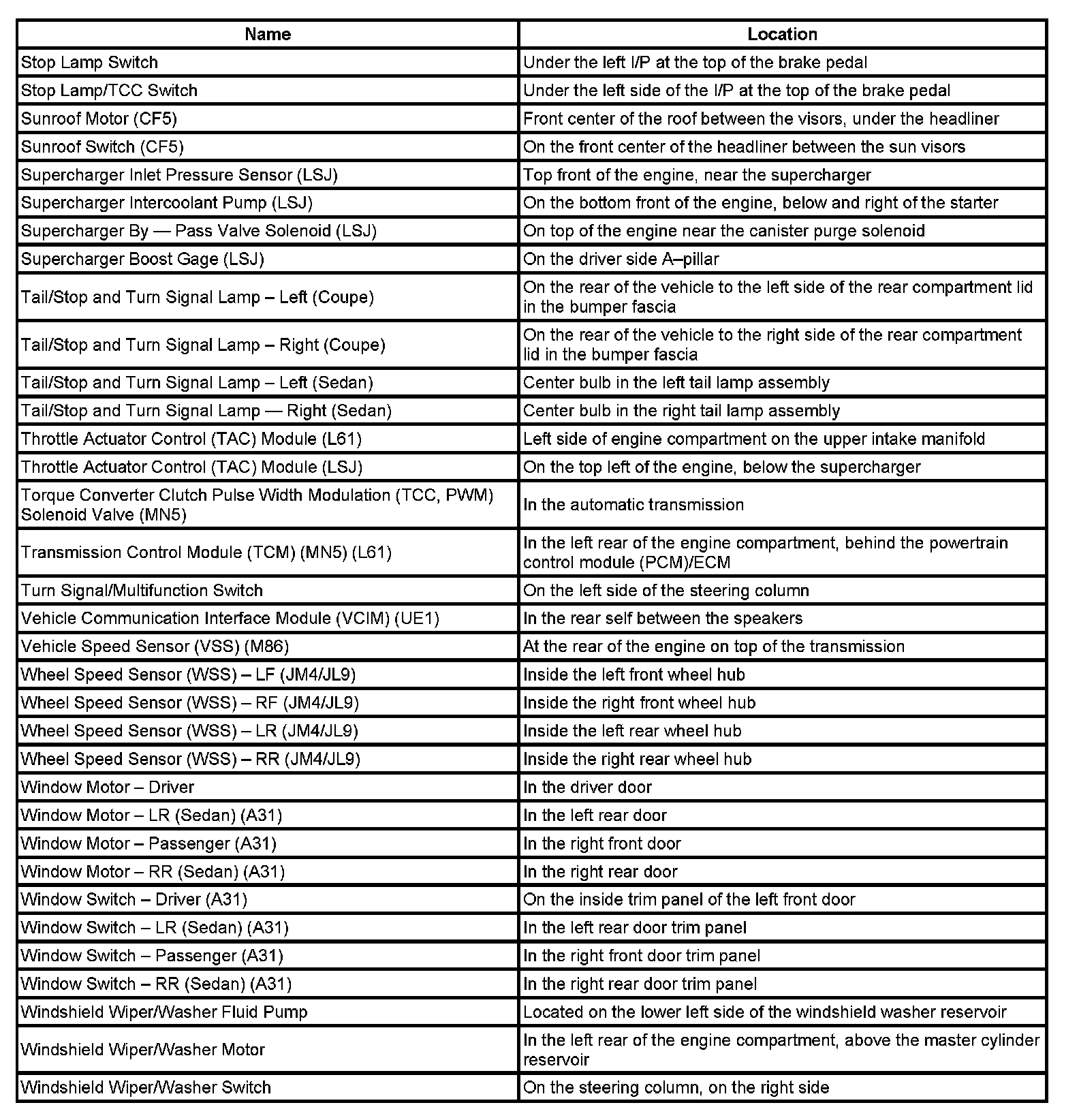

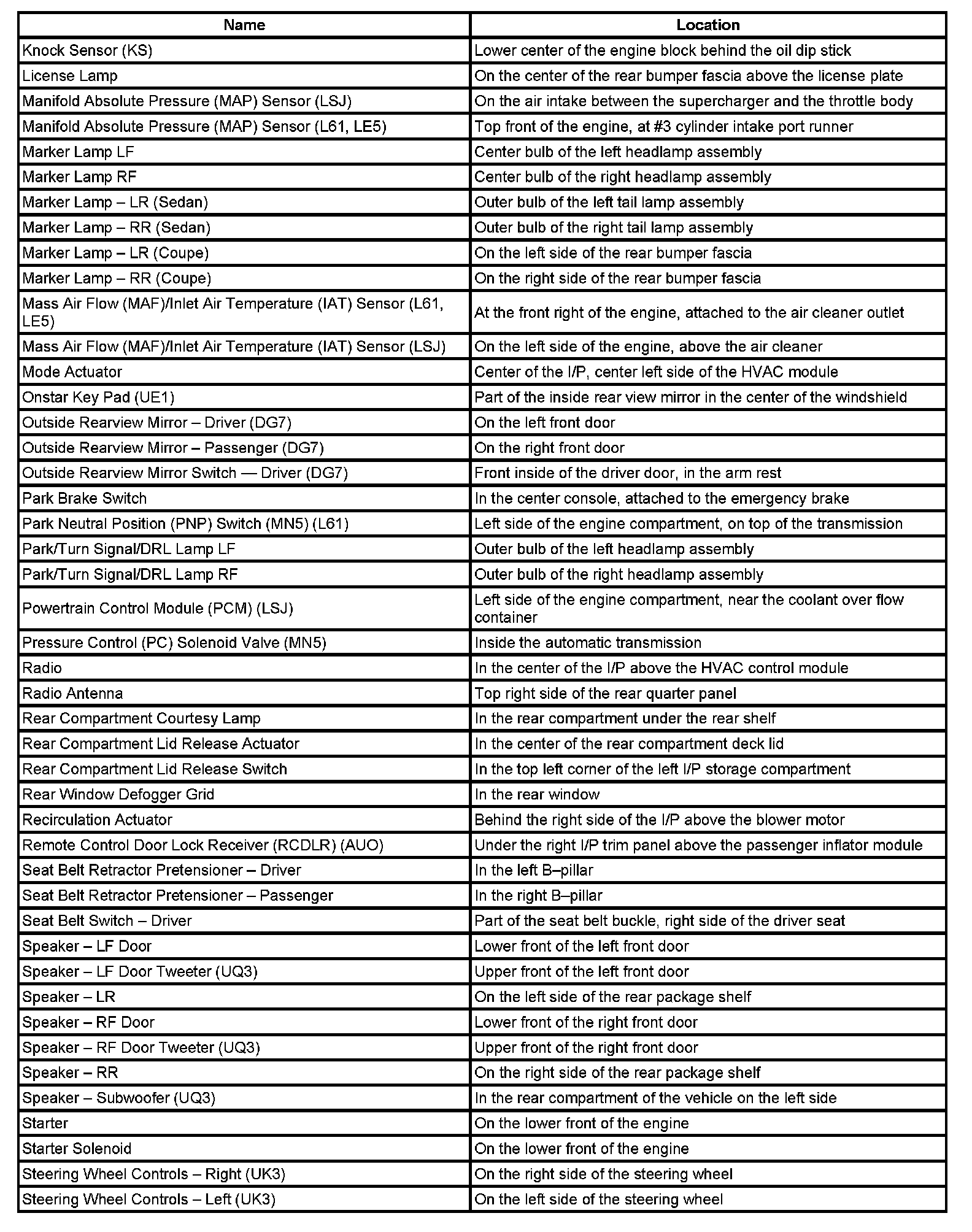

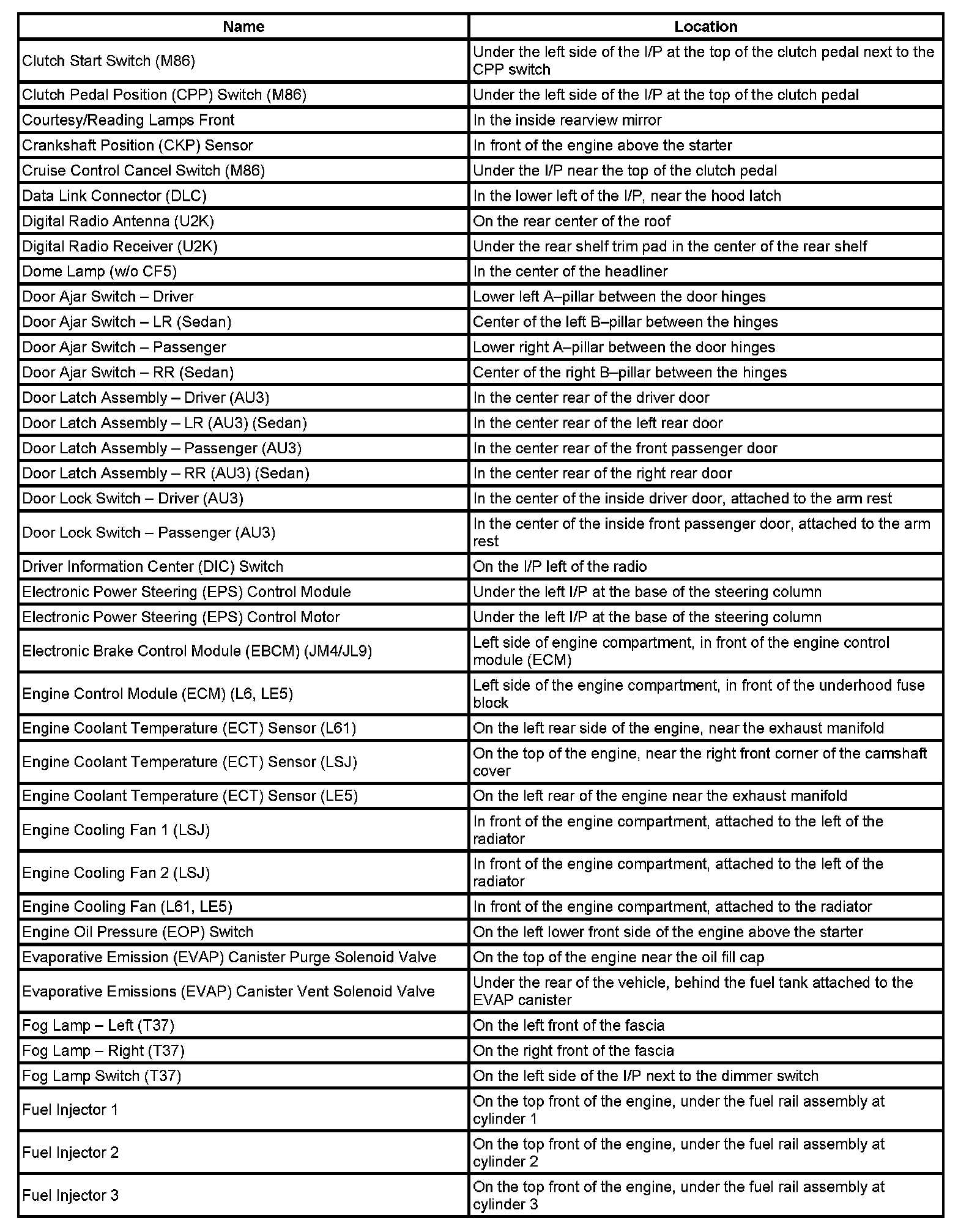

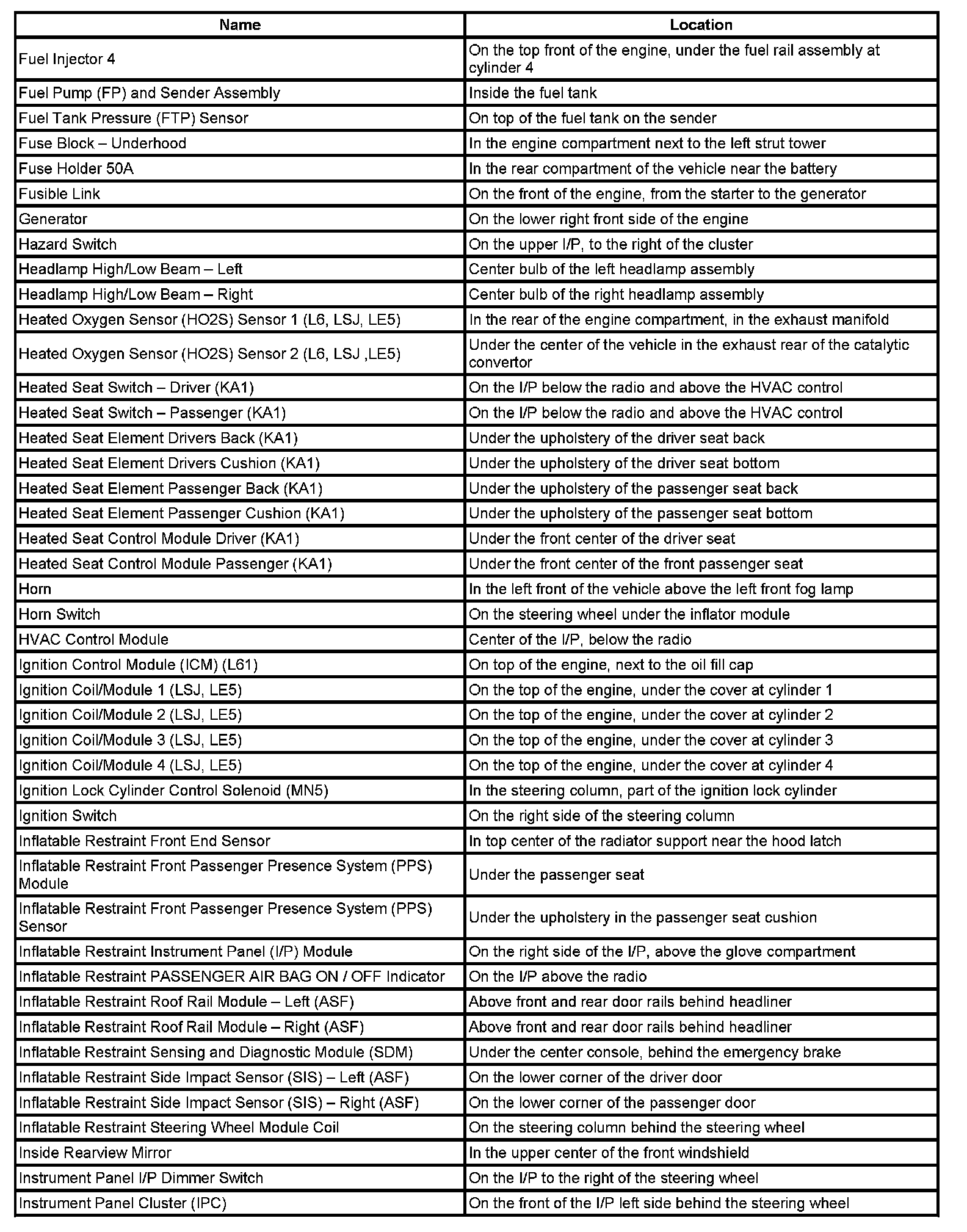

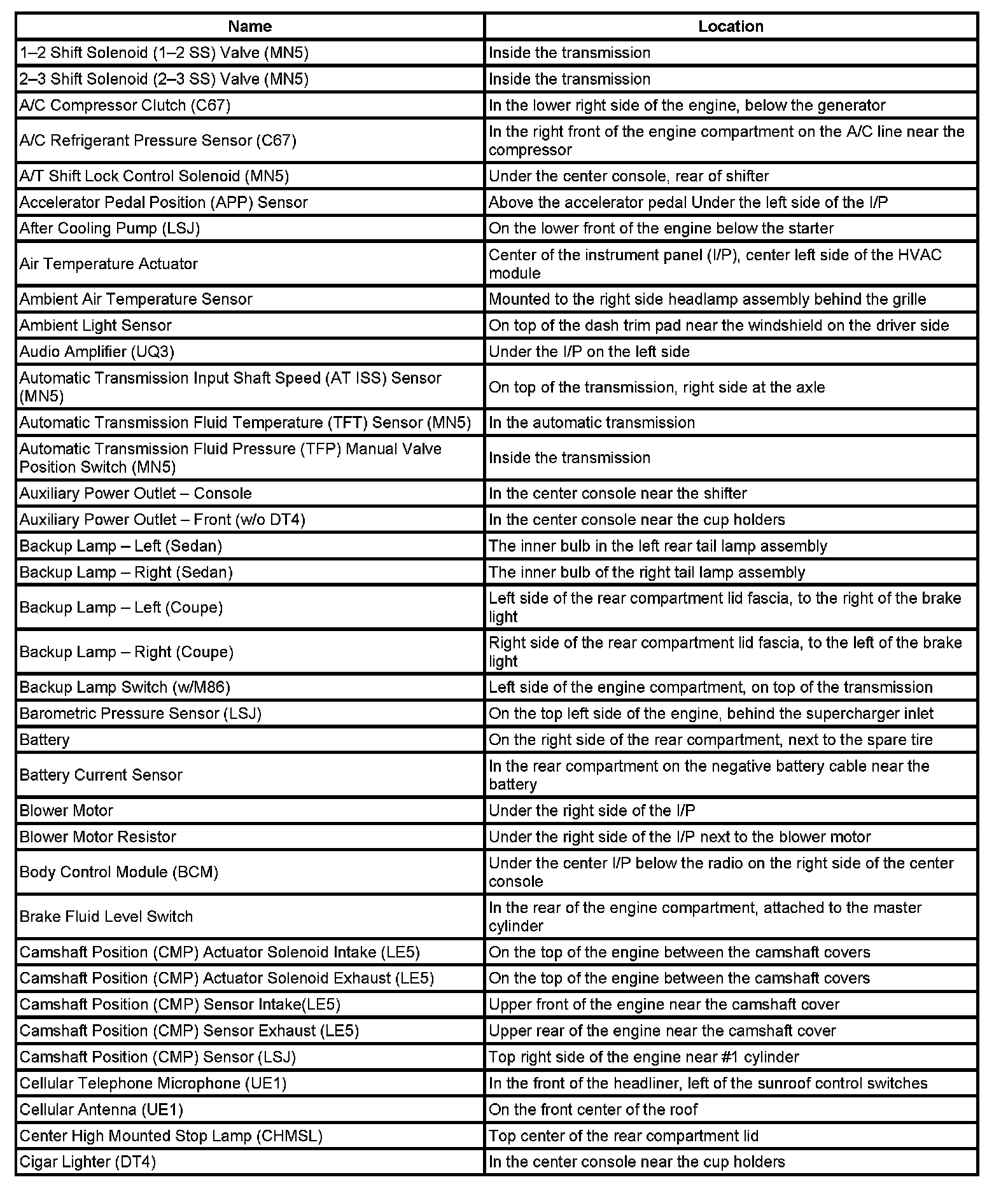

Components

1-2 Sh - Ci:




Cl - Fu:




Fu - In:




Kn - St:




St - Wi:
