Park Brake Cable Replacement - Front

Park Brake Cable Replacement - Front

Removal Procedure
1. Remove the front floor console storage compartment.

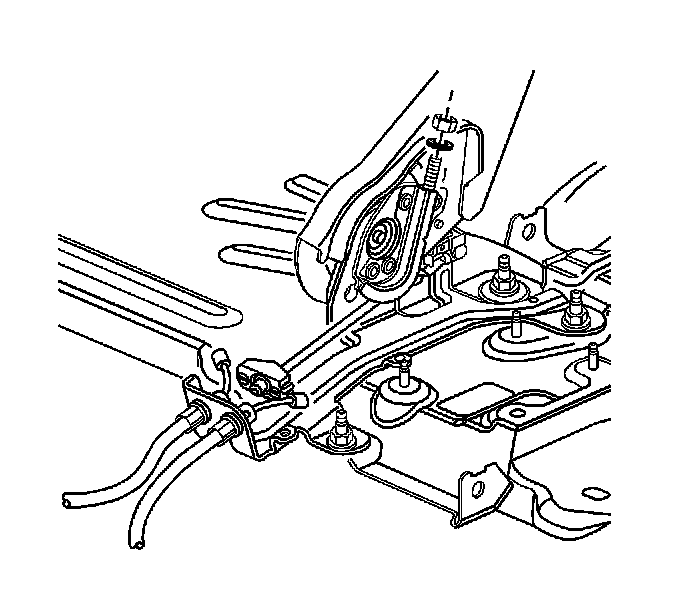

2. With park brake lever in the released position, using ONLY HAND TOOLS, remove the park brake cable adjusting nut and washer.
3. Release the rear park brake cable ends from the cable equalizer on the front cable.
4. Remove the front park brake cable from the park brake lever by pulling the cable rearward.

Installation Procedure





1. Install the front park brake cable to the park brake lever.
2. Install the rear cable ends to the cable equalizer.

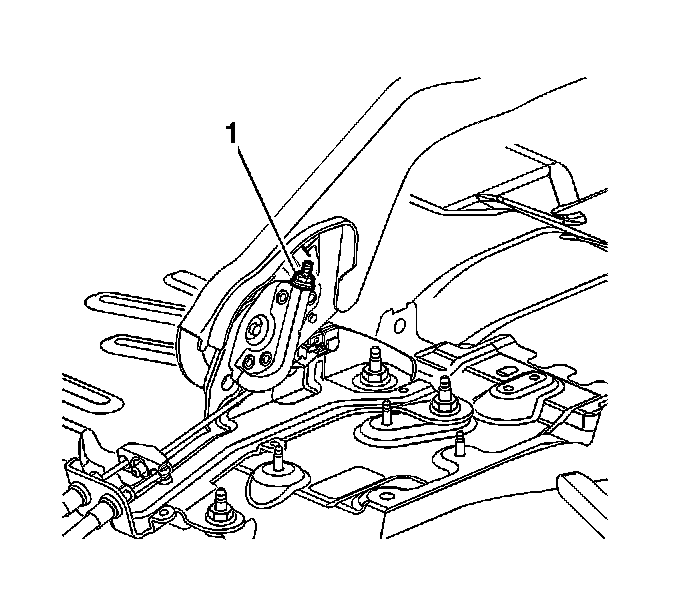

3. Using ONLY HAND TOOLS, install the washer and NEW adjusting nut (1) to the front park brake cable.
4. Adjust the park brake cable tension.
5. Install the front floor console storage compartment.
