Hydraulic Brake System Diagnosis

Step 1 - Step 4:

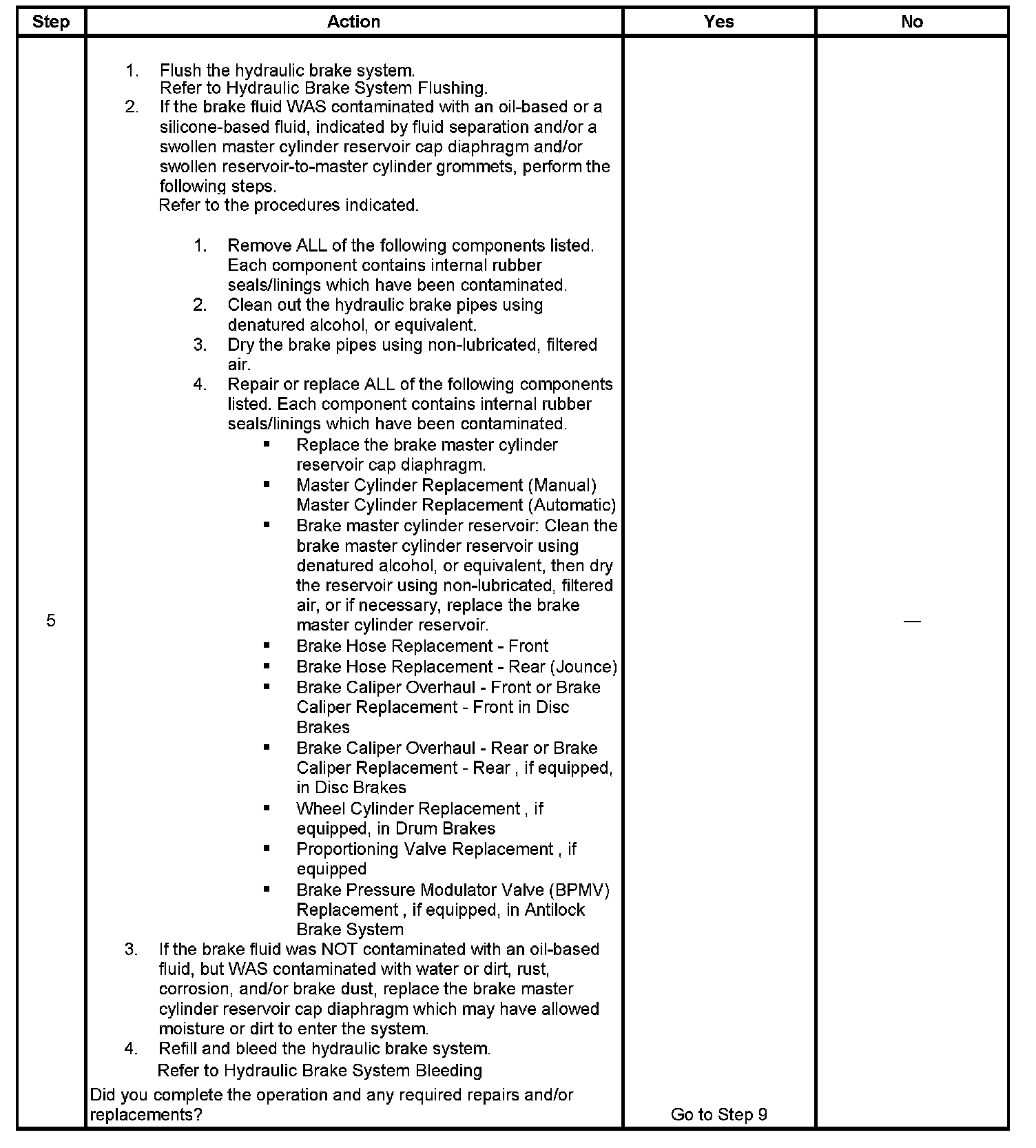

Step 5:

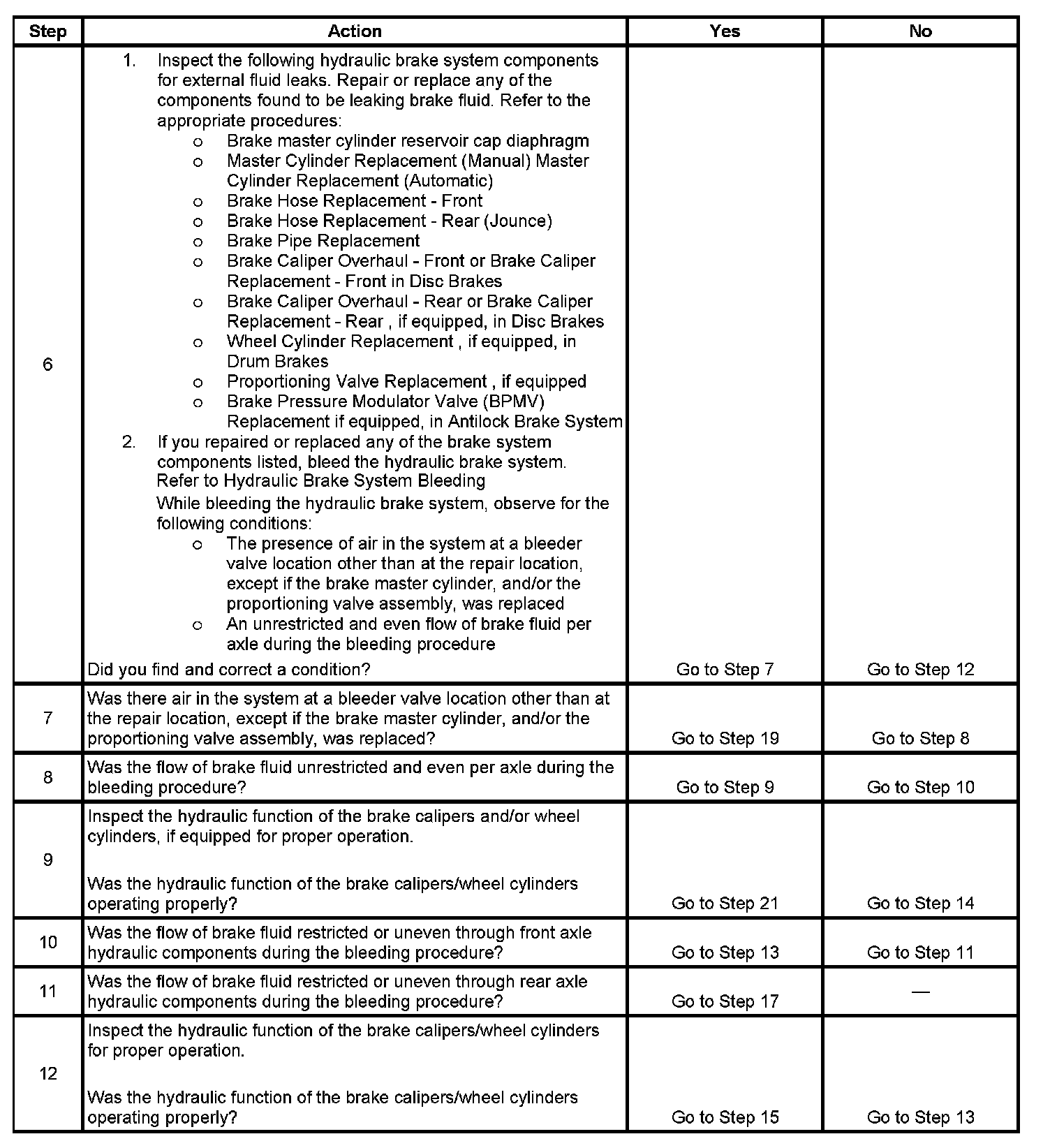

Step 6 - Step 12:

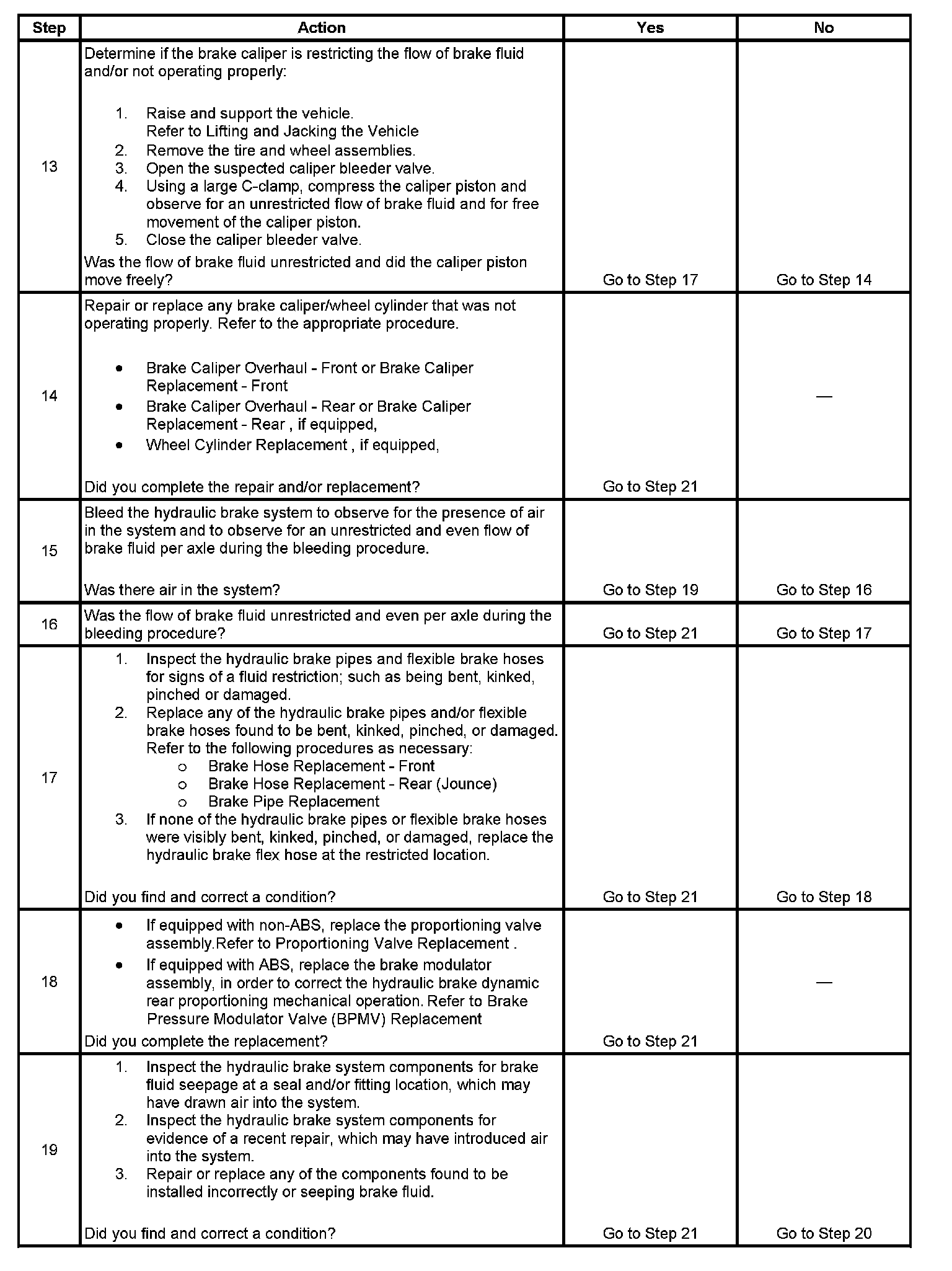

Step 13 - Step 19:

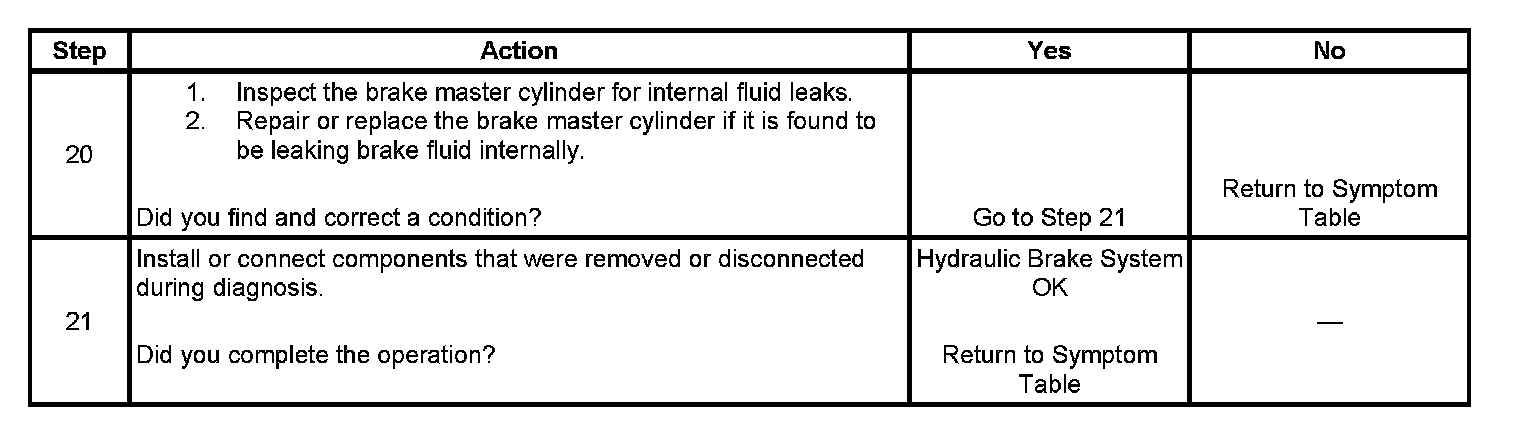

Step 20 - Step 21:
