Drum Brake System Diagnosis

Drum Brake System Diagnosis

Test Description

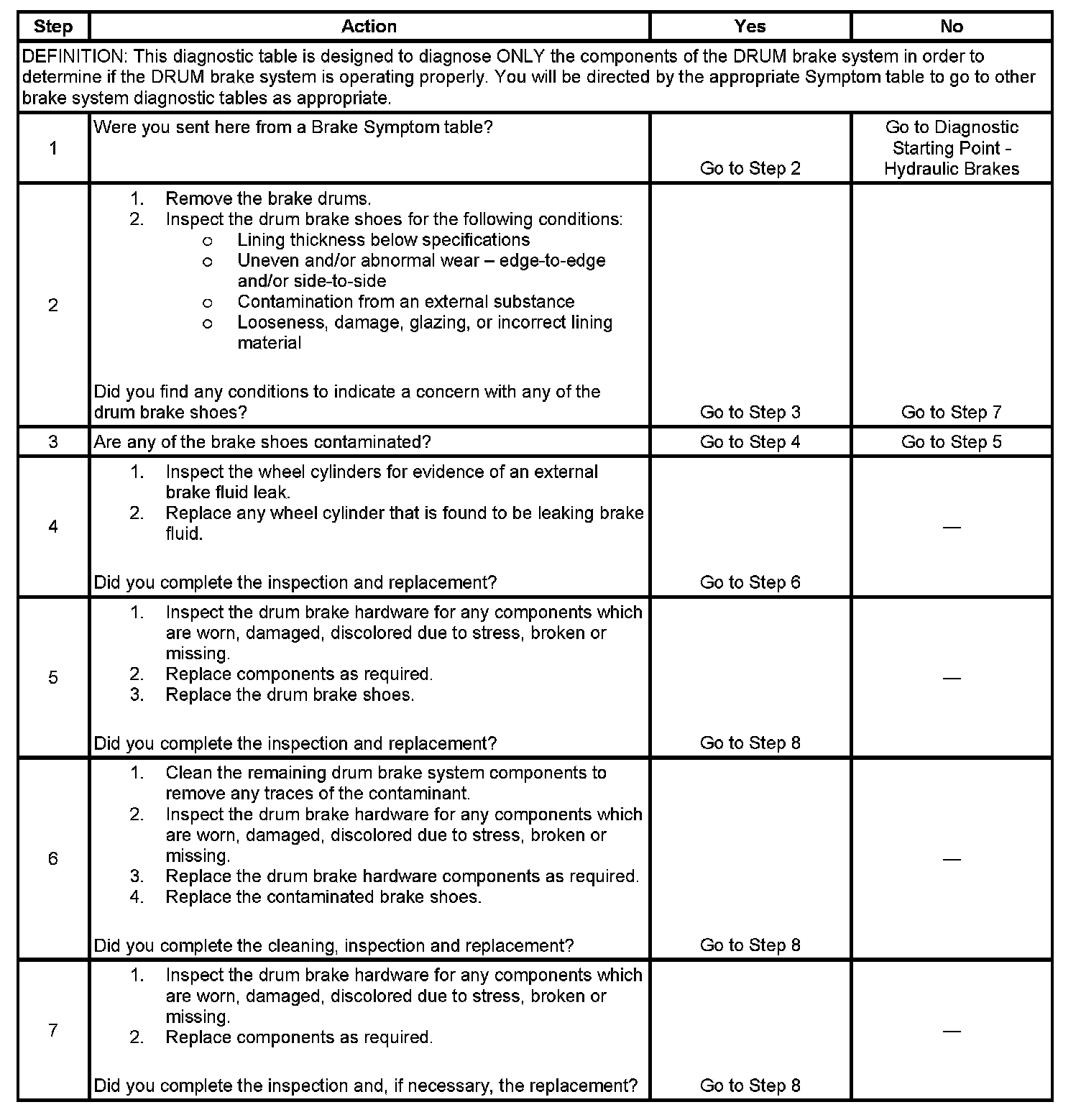

Step 1 - Step 7:

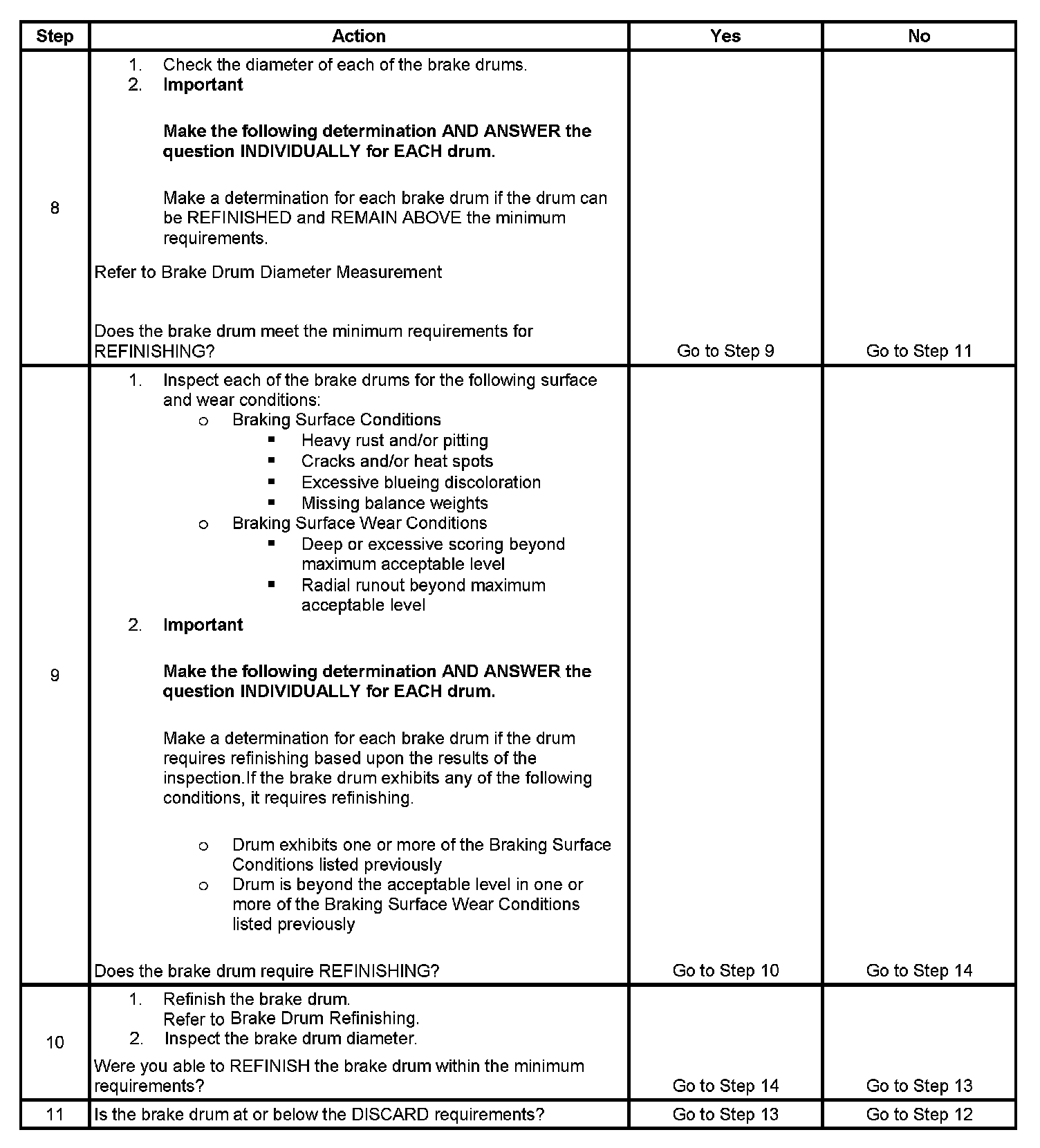

Step 8 - Step 11:

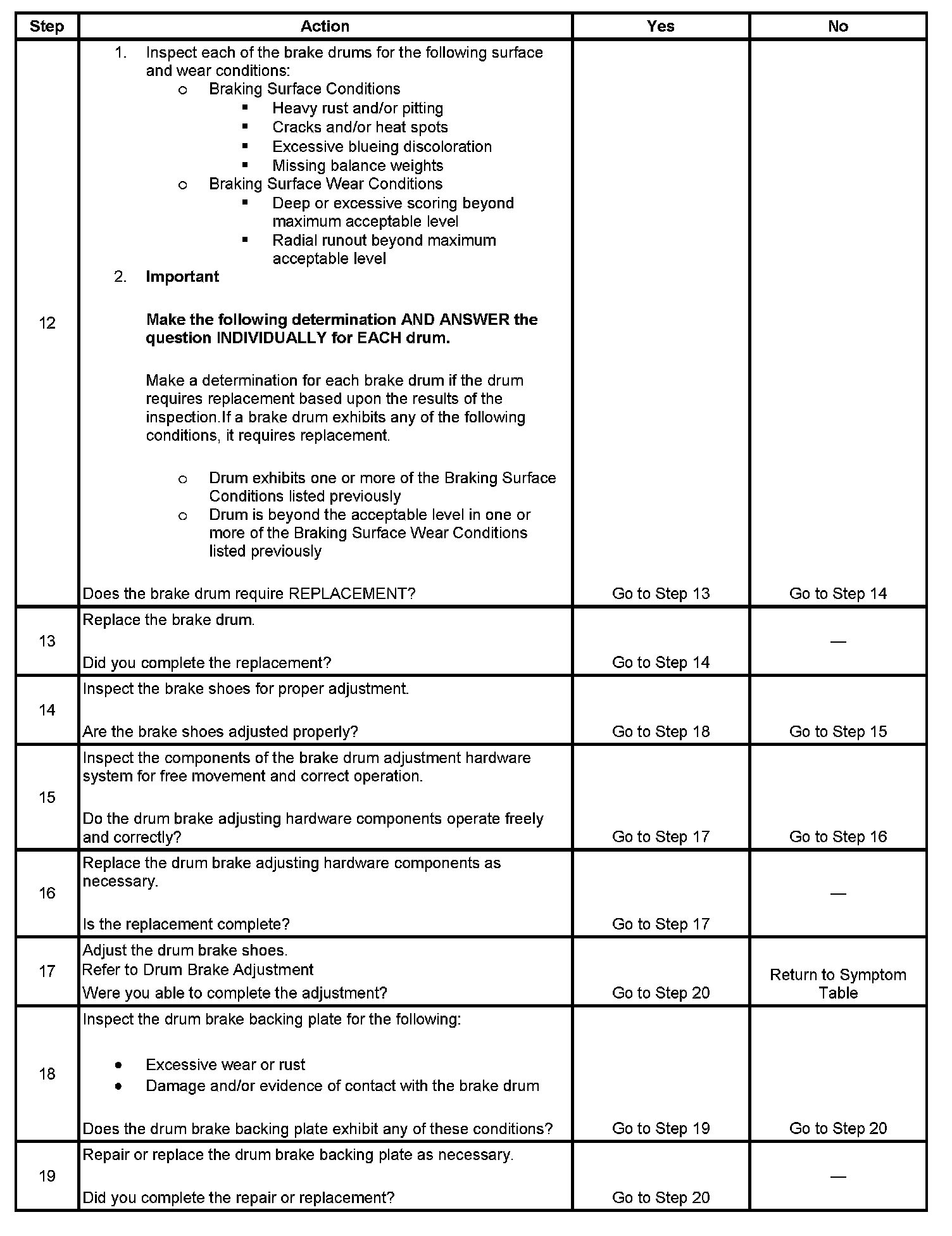

Step 12 - Step 19:

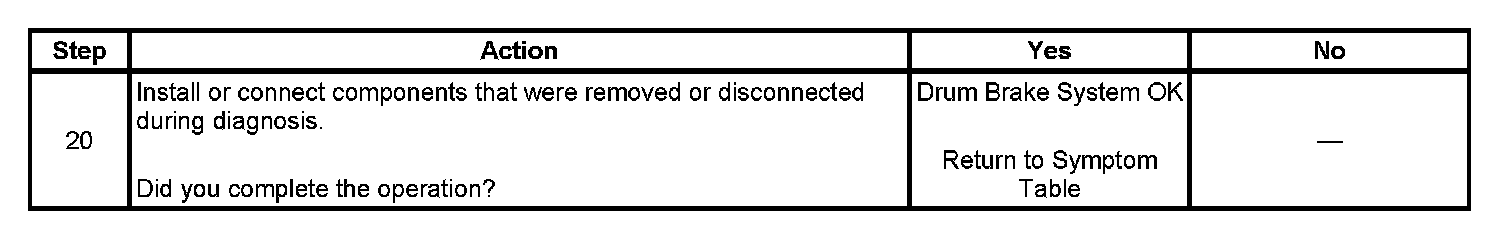

Step 20:

The number below refers to the step number on the diagnostic table:
18. Drum brake backing plates that come in contact with brake drums may cause brake system noise.
