Electrical Diagrams

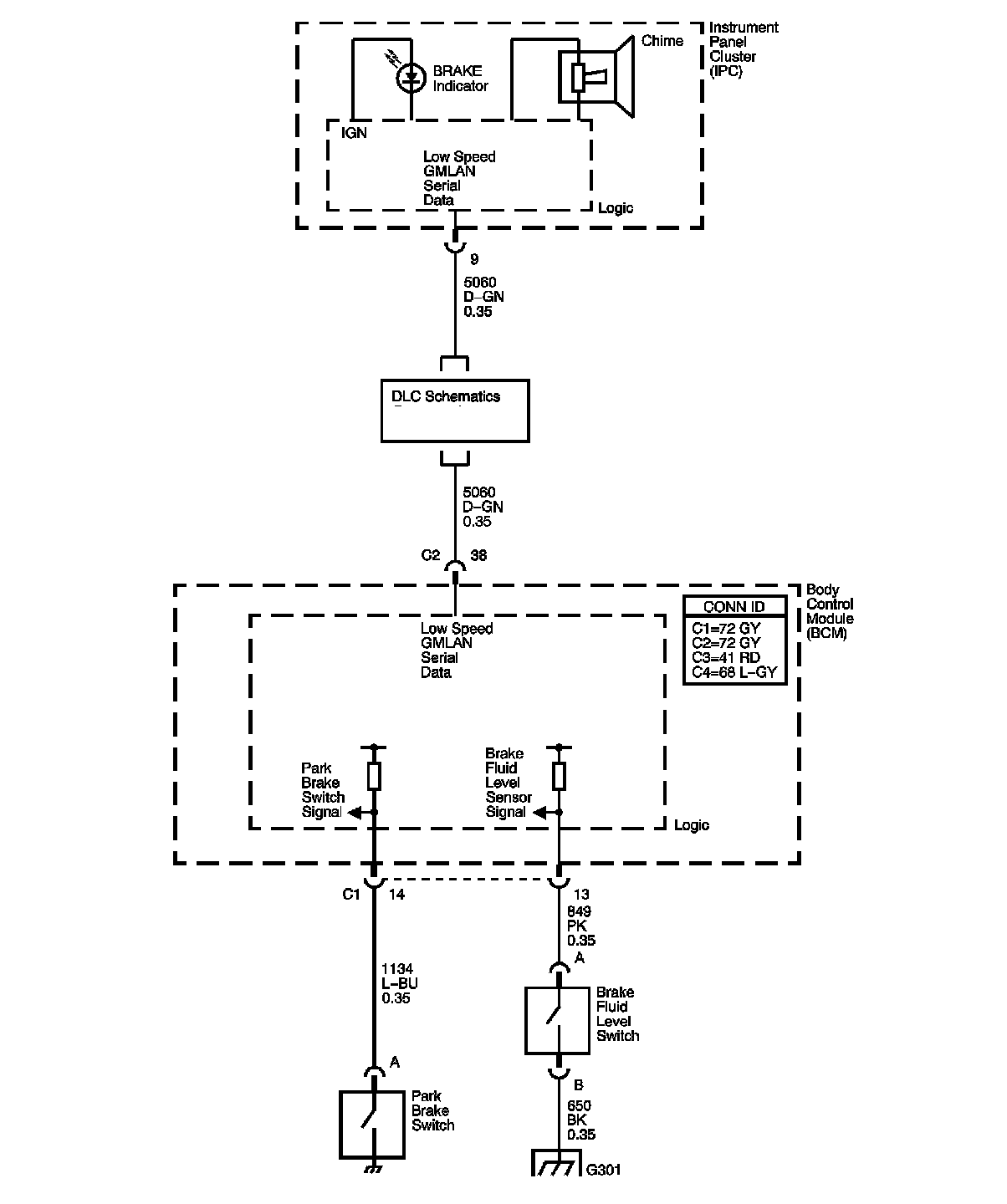

Brake Warning System Diagrams

Brake Warning System Diagrams:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
