ABS Indicator Always On

ABS Indicator Always On

Circuit Description
The instrument cluster controls the operation of the ABS indicator. The electronic brake control module (EBCM) reports the desired status of the ABS indicator via serial data messages.

Diagnostic Aids
The malfunction must be present during diagnosis in order to prevent unnecessary parts replacement. Always begin diagnosis with Diagnostic System Check - Vehicle.

Test Description

Step 1 - Step 6:

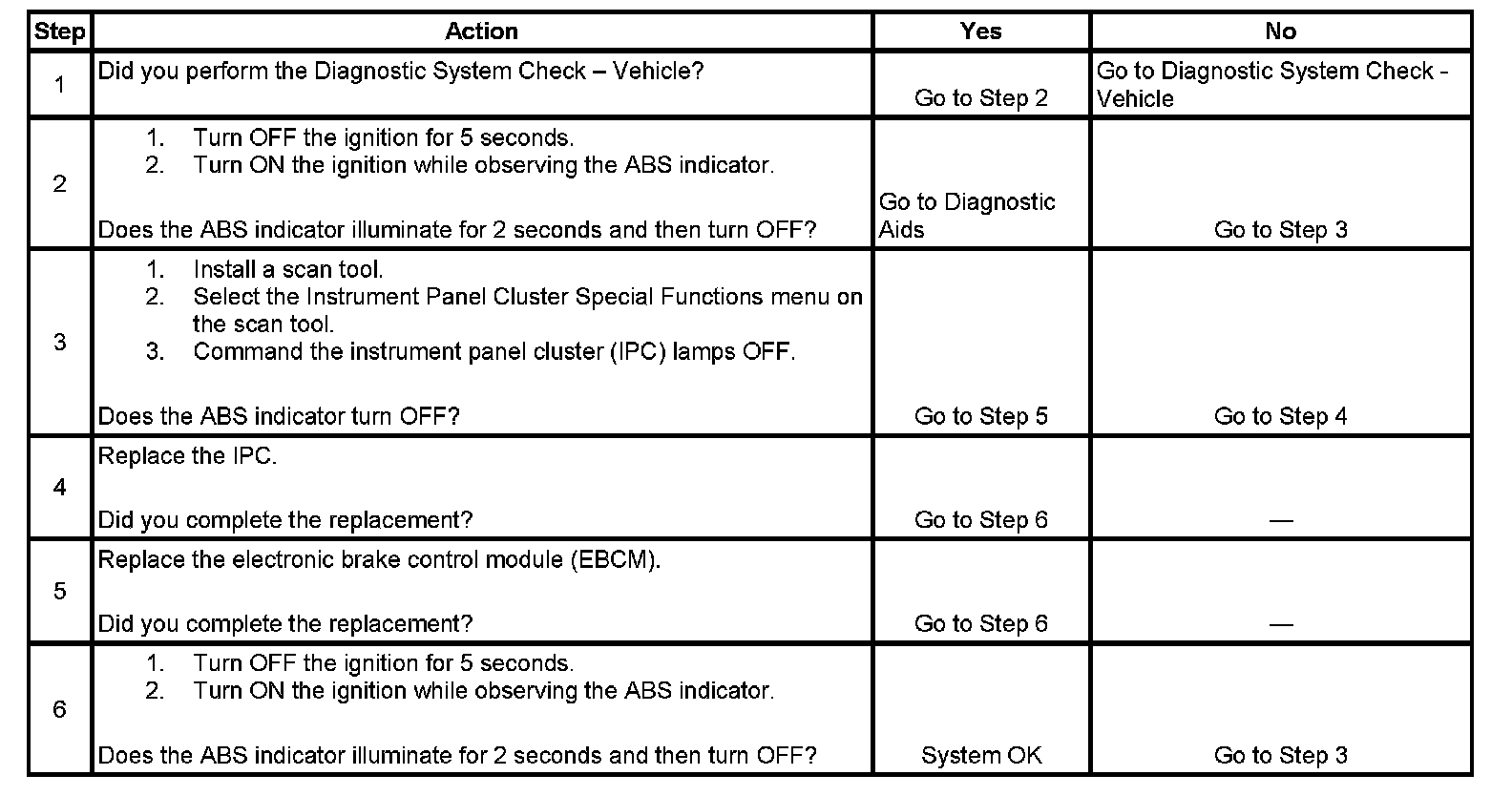

The number below refers to the step number on the diagnostic table.
3. This step tests if the instrument panel cluster (IPC) is able to turn OFF the ABS indicator.
