Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List

Scan Tool Data List

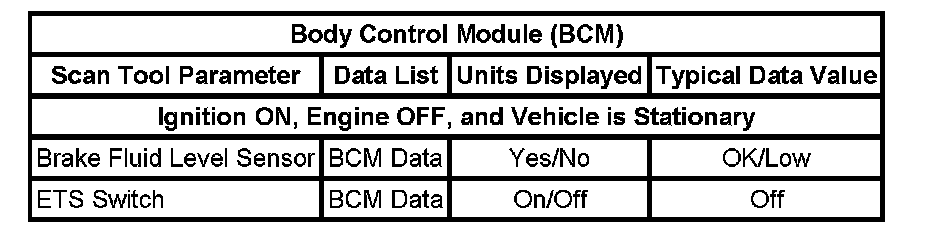

Body Control Module (BCM):

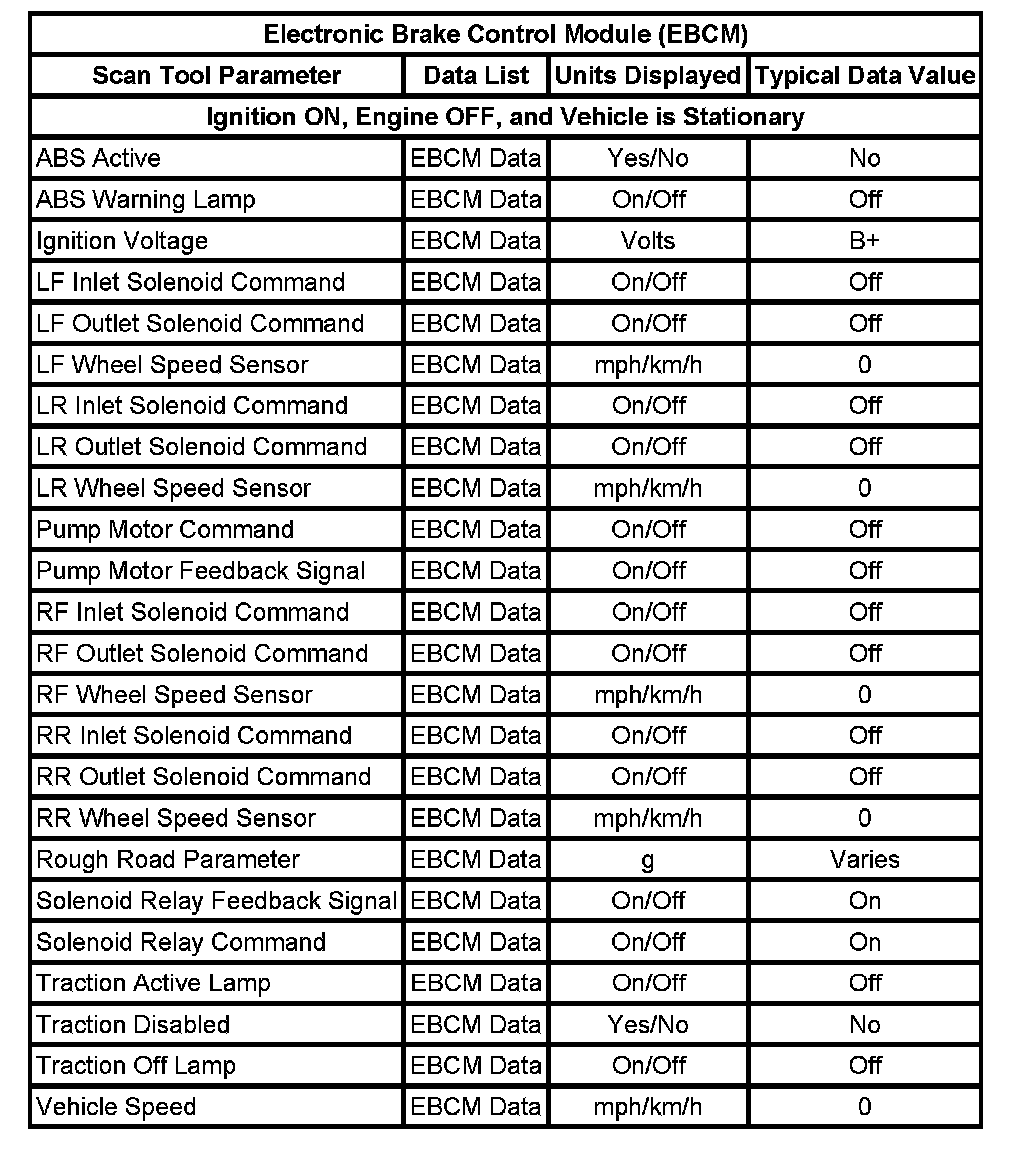

Electronic Brake Control Module (EBCM):



Powertrain Control Module (PCM):
