Seat Temperature Element: Diagrams

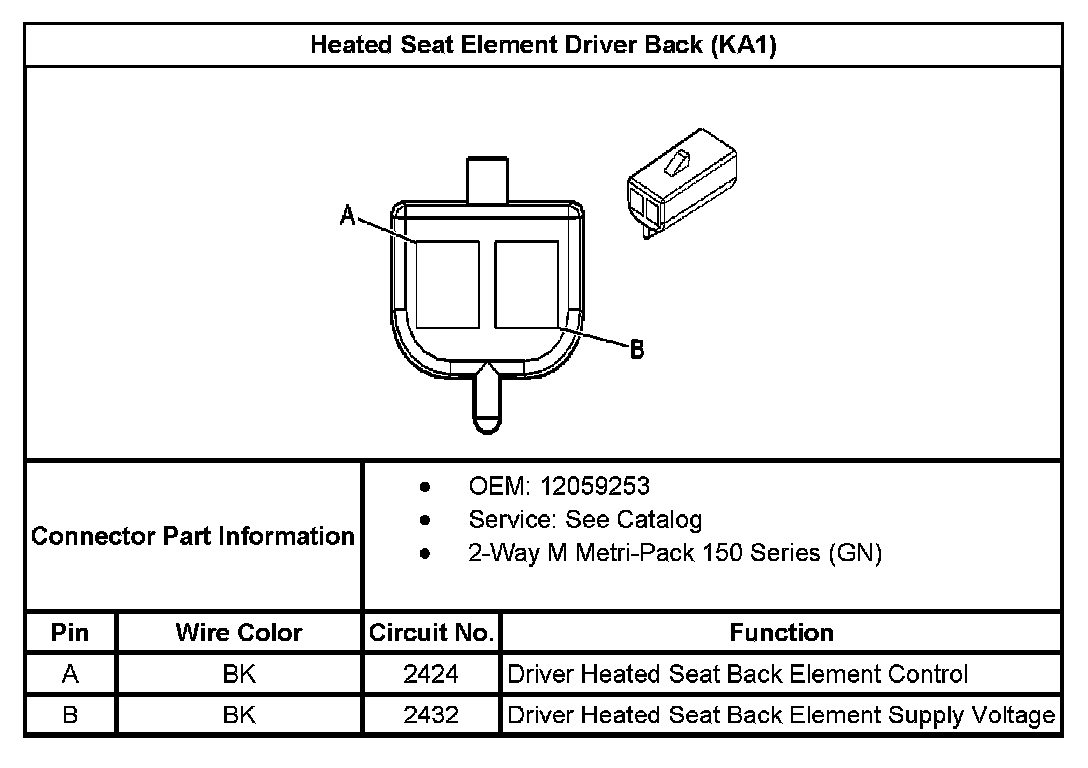

Heated Seat Element Driver Back (With RPO Code KA1):

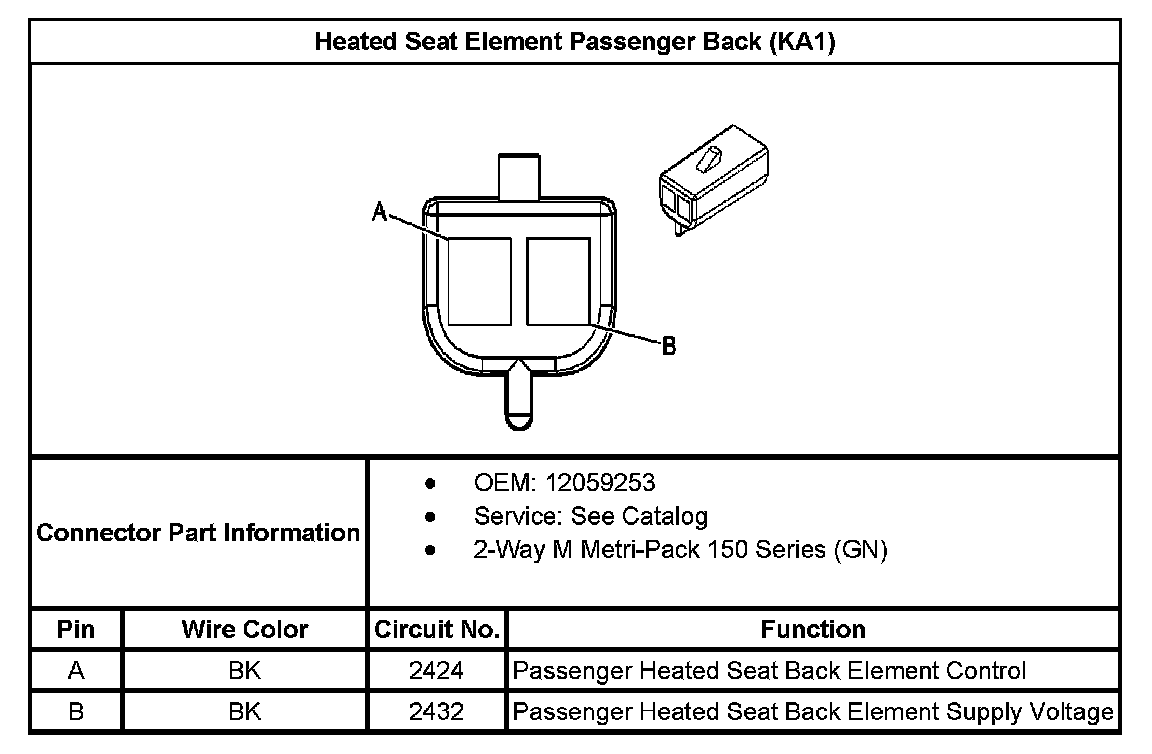

Heated Seat Element Passenger Back (With RPO Code KA1):

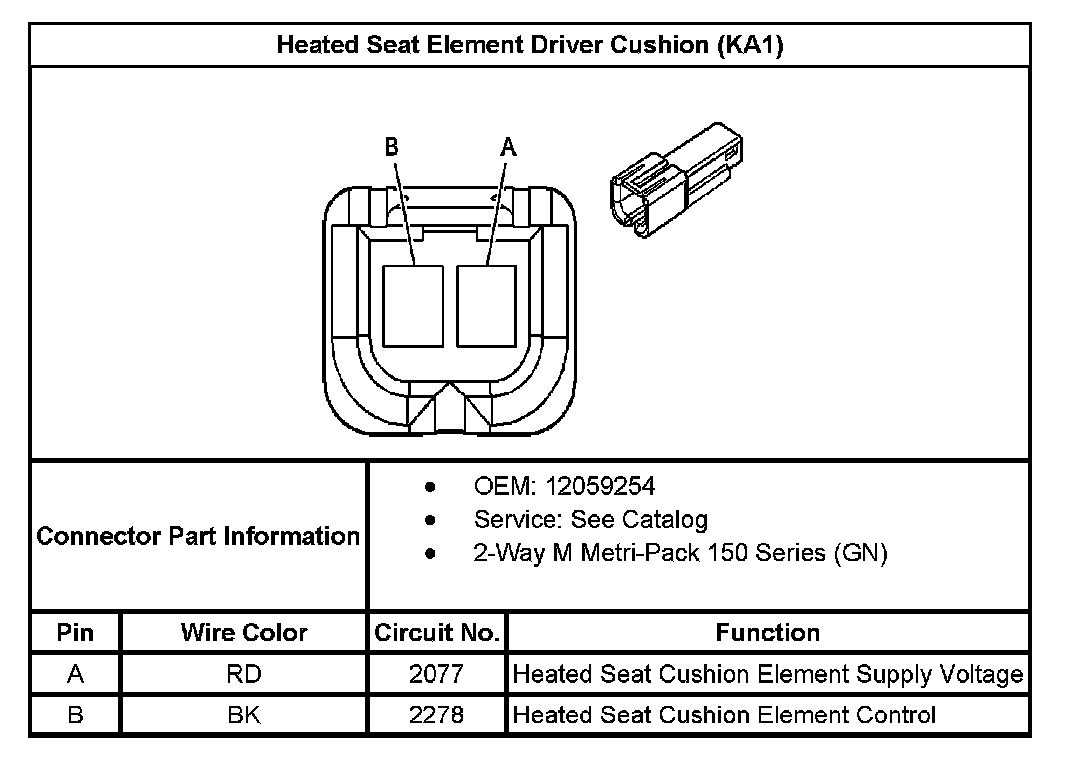

Heated Seat Element Driver Cushion (With RPO Code KA1):

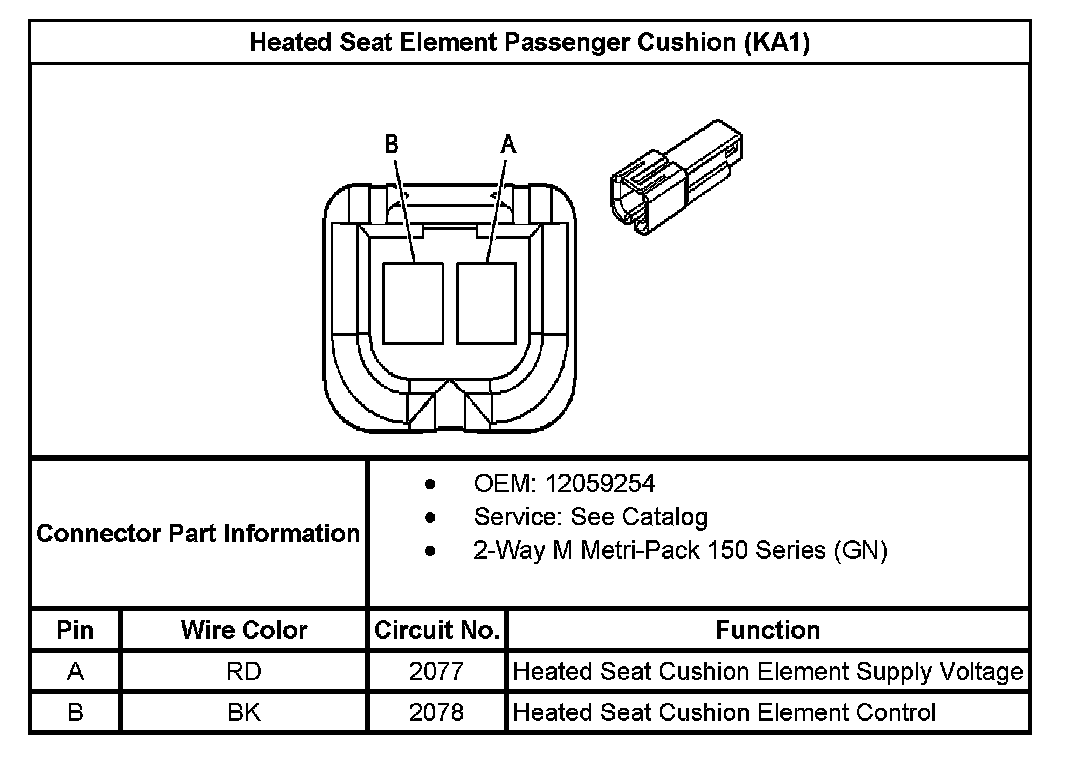

Heated Seat Element Passenger Cushion (With RPO Code KA1):
