Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Back >> Service and Repair >> Procedures >> Seat Back Replacement - Rear Split Folding

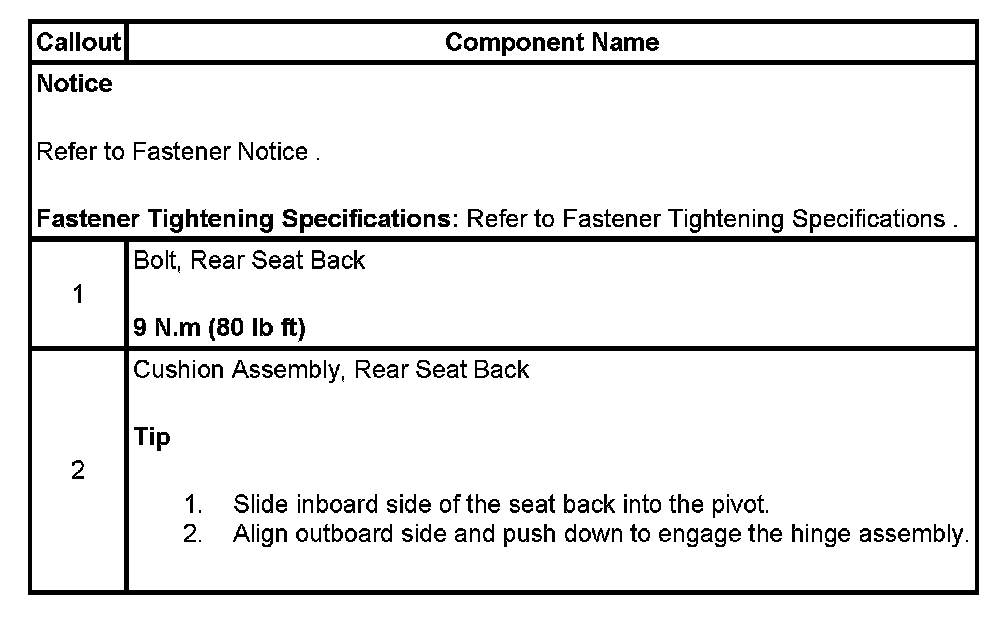

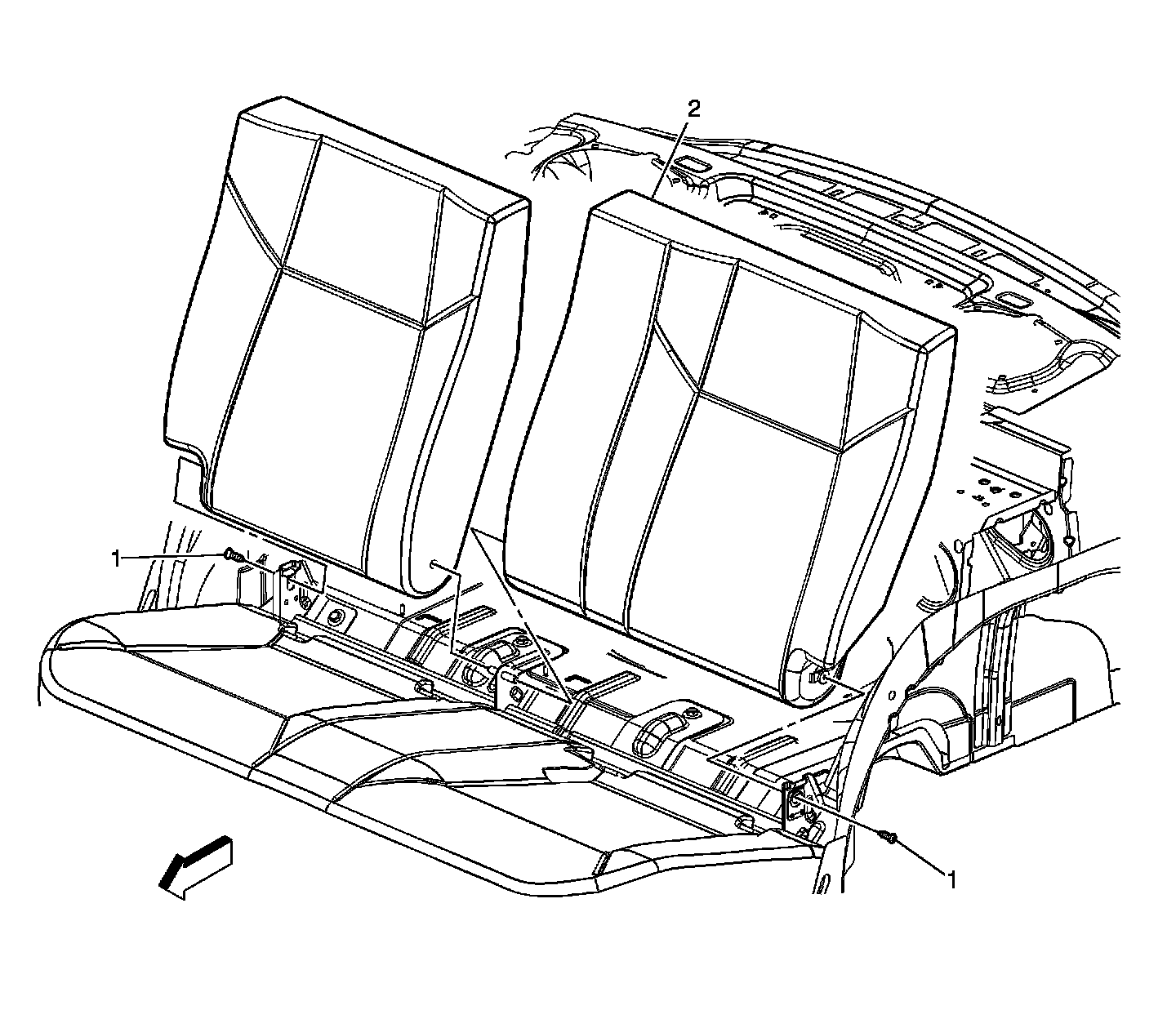

Seat Back Replacement - Rear Split Folding



SEAT BACK REPLACEMENT - REAR SPLIT FOLDING
