Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> Procedures >> Latch Replacement - Console Compartment Door

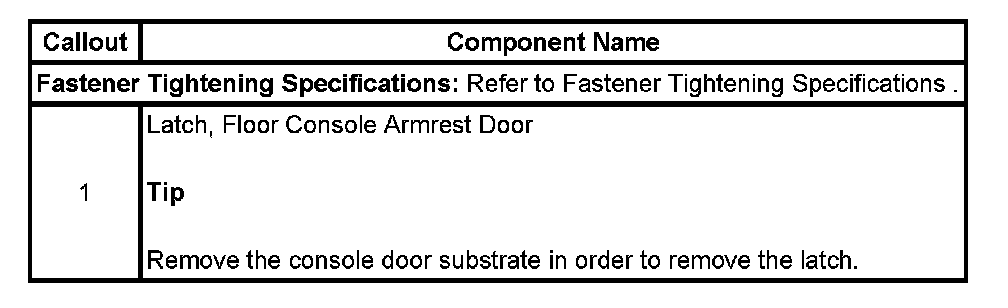

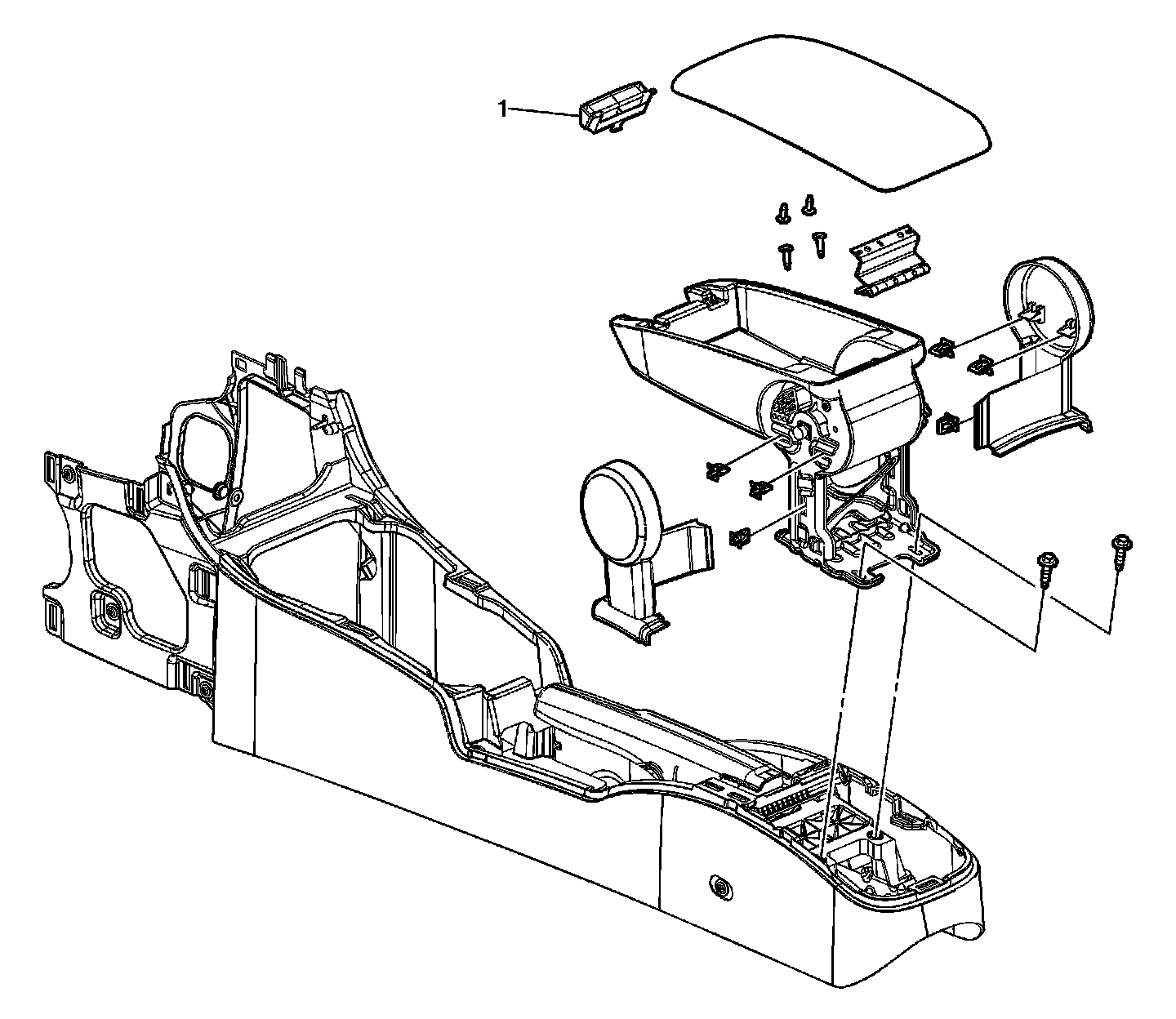

Latch Replacement - Console Compartment Door



LATCH REPLACEMENT - CONSOLE COMPARTMENT DOOR
