P0833

DTC P0833

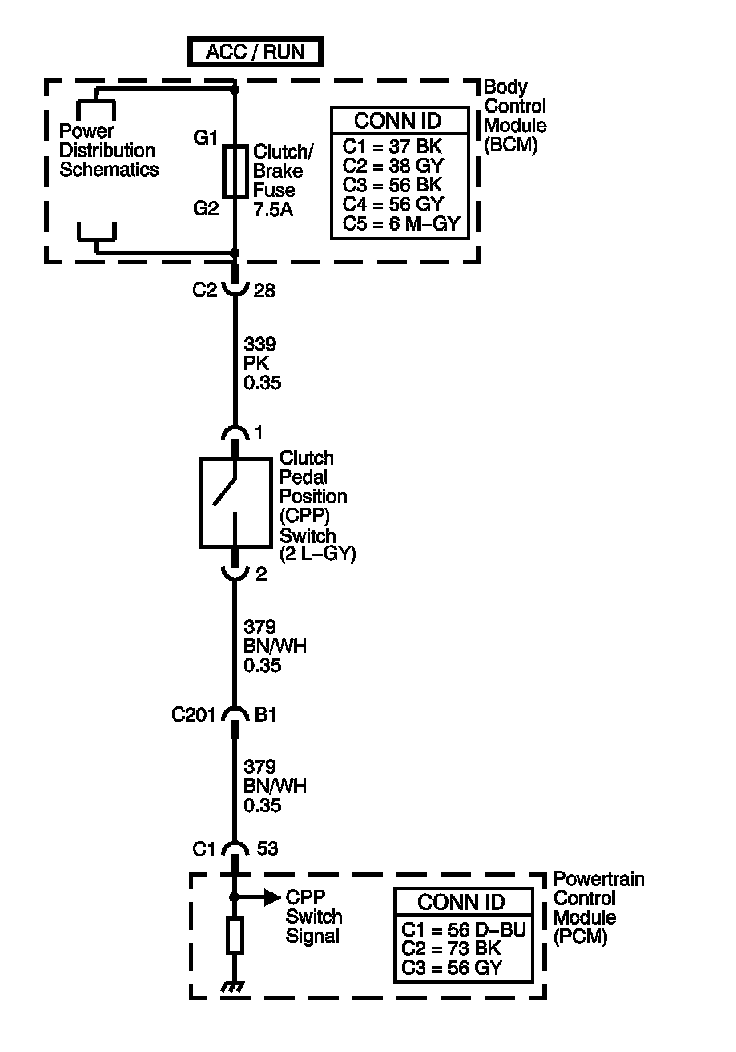

Circuit Description
Battery voltage is supplied from the clutch brake fuse to the clutch switch. The clutch switch is a normally closed switch. When the clutch pedal is released, the clutch pedal position switch signal circuit is pulled up to B+. When the clutch pedal is applied, the switch opens, and the voltage drops to 0 volts.

When the powertrain control module (PCM) detects a large number of gear changes without detecting a clutch switch transition, DTC P0833 sets. DTC P0833 is a type C DTC.

DTC Descriptor
This diagnostic procedure supports the following DTC:

DTC P0833 Clutch Pedal Switch 2 Circuit

Conditions for Running the DTC
No VSS DTCs P0502 or P0503.

Conditions for Setting the DTC
The PCM detects 7 changes in vehicle speed 0- 38 km/h (0-24 mph) without the PCM detecting a clutch pedal transition.

Action Taken When the DTC Sets
^ The PCM does not illuminate the malfunction indicator lamp (MIL).
^ The PCM disables cruise control.
^ The PCM records the operating conditions when the Conditions for Setting the DTC are met. The PCM stores this information as Failure Records.
^ The PCM stores DTC P0833 in PCM history.

Conditions for Clearing the DTC
^ A scan tool can clear the DTC.
^ The PCM clears the DTC from PCM history if the vehicle completes 40 warm-up cycles without a non-emission related diagnostic fault occurring.
^ The PCM cancels the DTC default actions when the fault no longer exists and the DTC passes.

Test Description

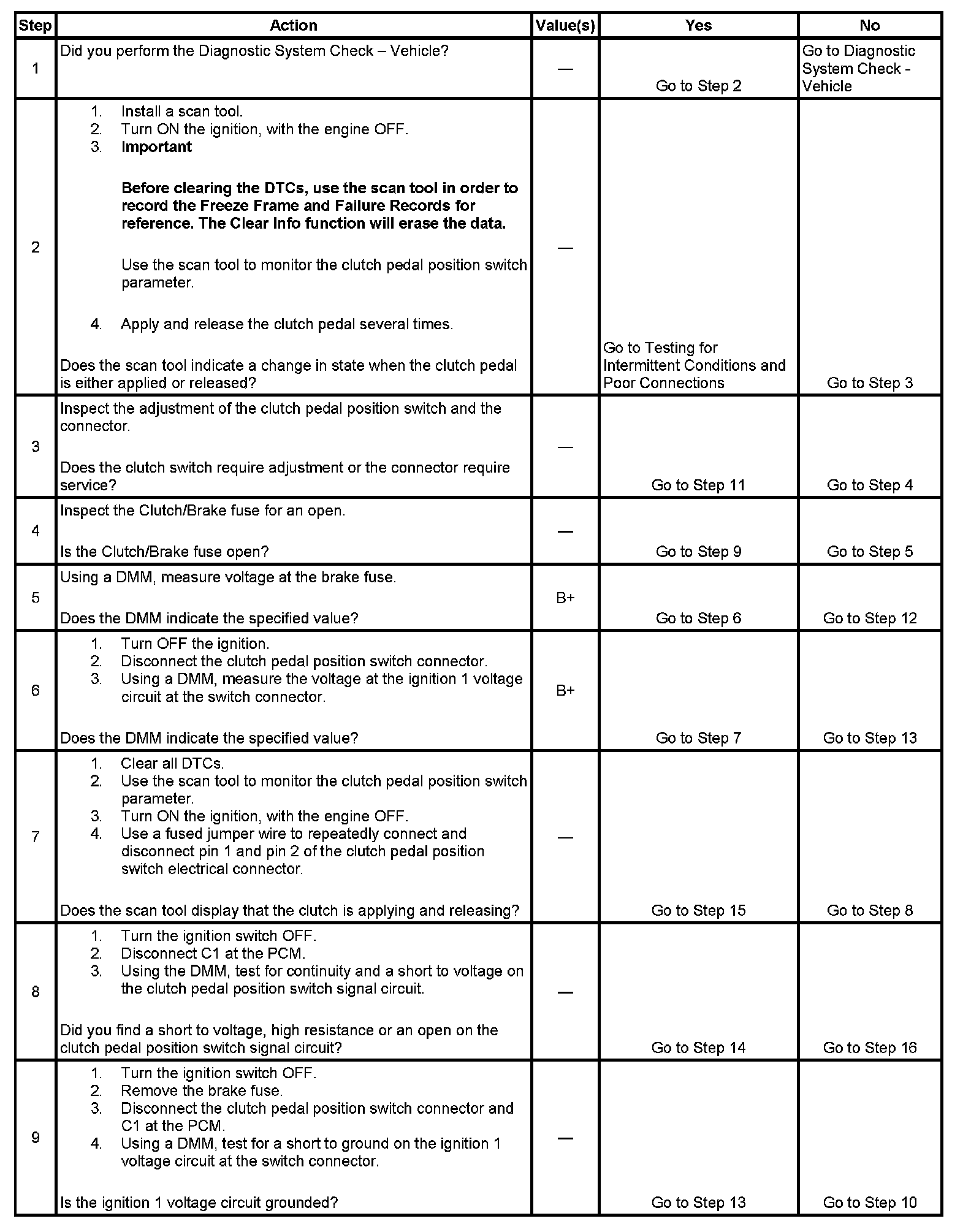

Step 1 - Step 9:

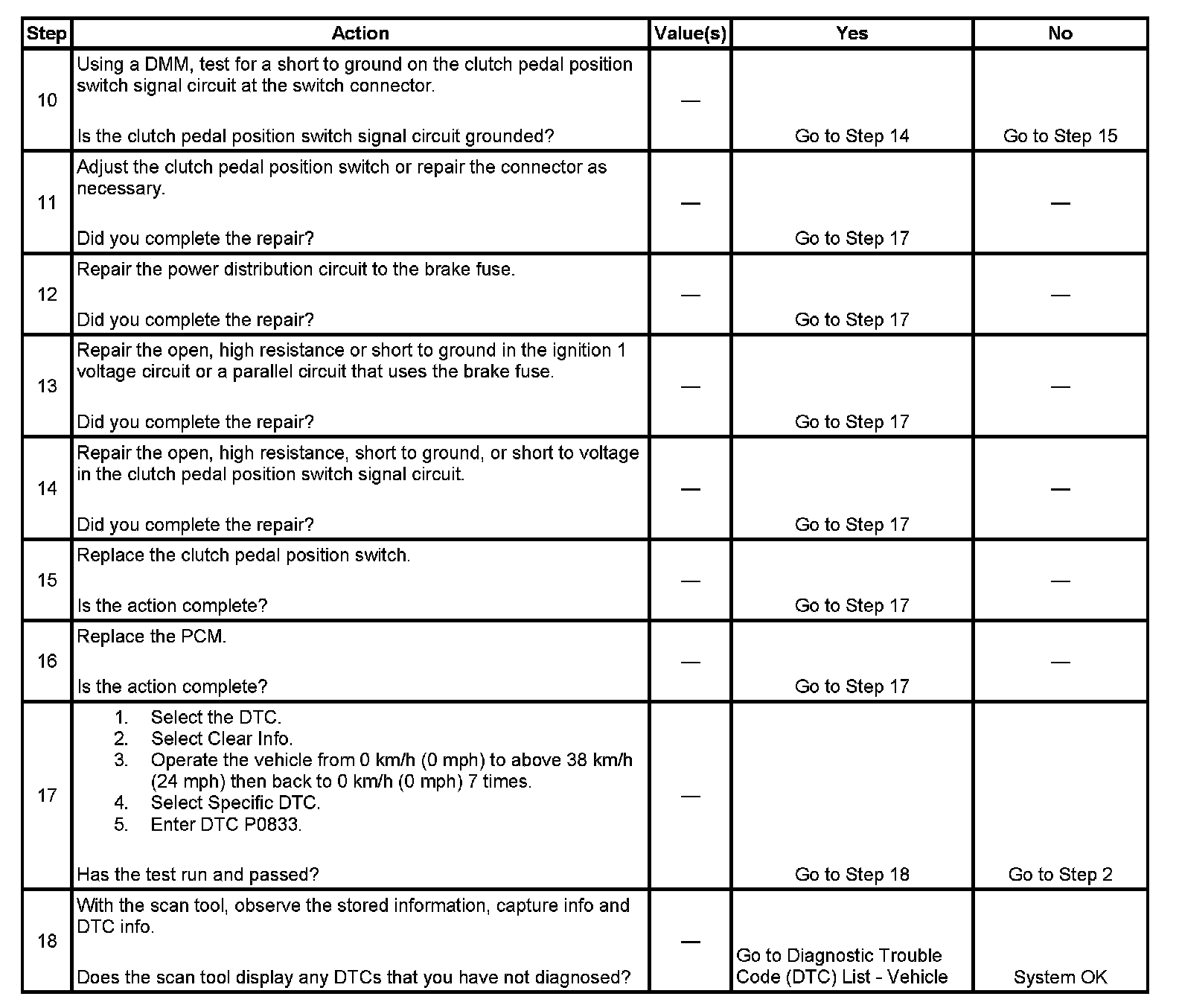

Step 10 - Step 18:

The numbers below refer to the step numbers on the diagnostic table.
2. This test confirms if the scan tool is receiving a clutch switch position signal.
3. This step inspects the clutch pedal connector and adjustment.
