Diagnostic Trouble Code (DTC) List - Vehicle

DIAGNOSTIC TROUBLE CODE (DTC) LIST

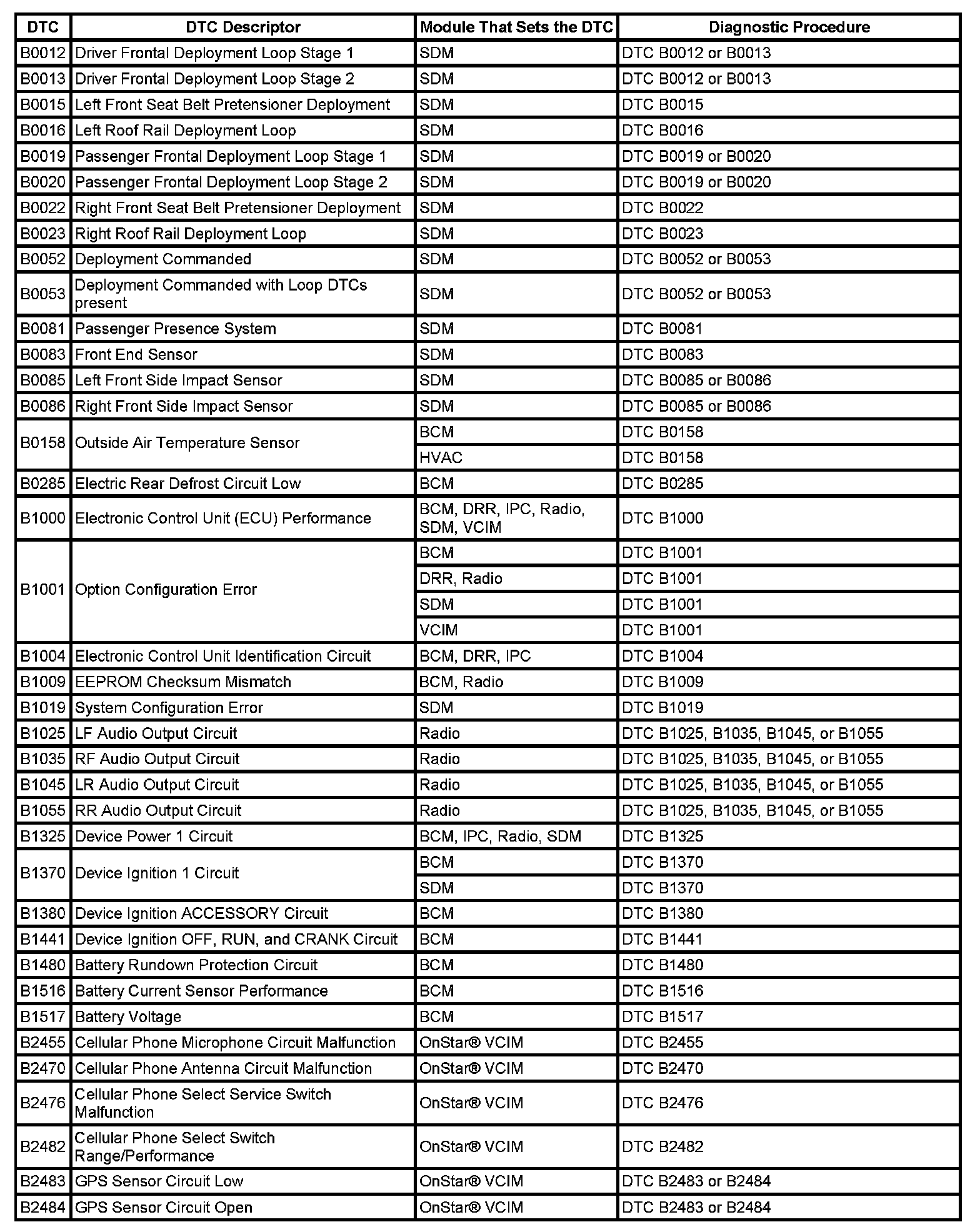

DTCs B0012 - B2484:

DTCs B2530 - C0242:

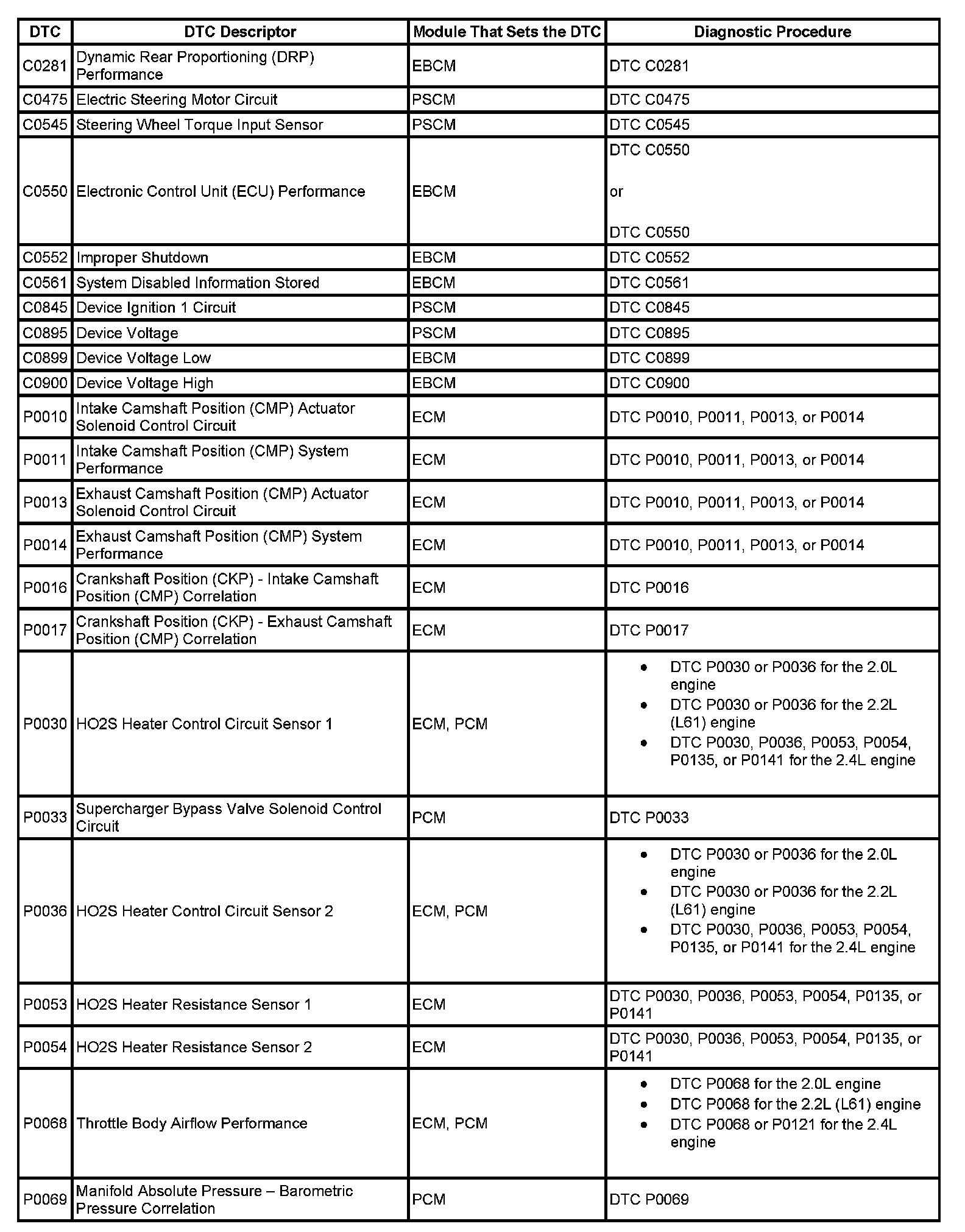

DTCs C0281 - P0069:

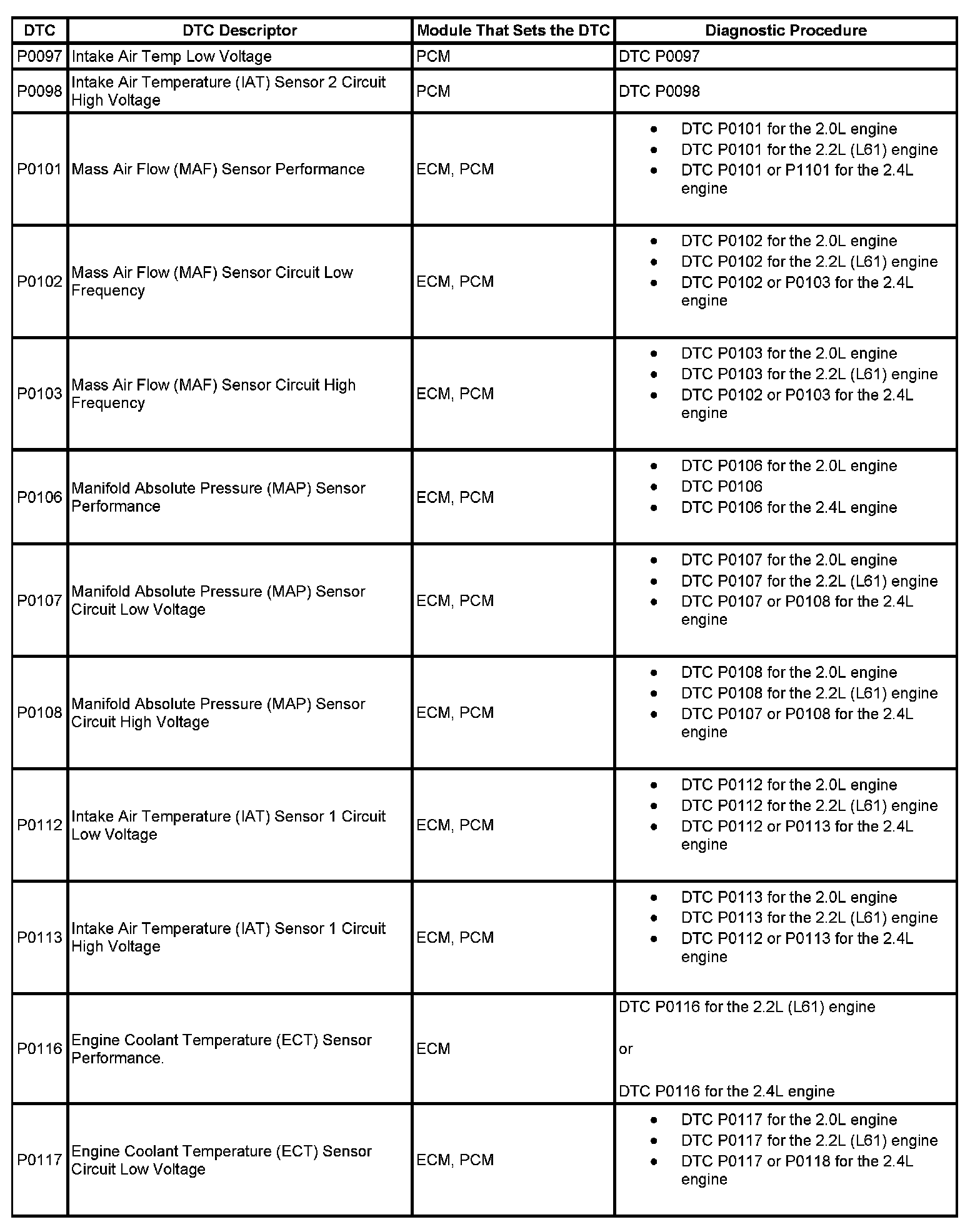

DTCs P0097 - P0117:

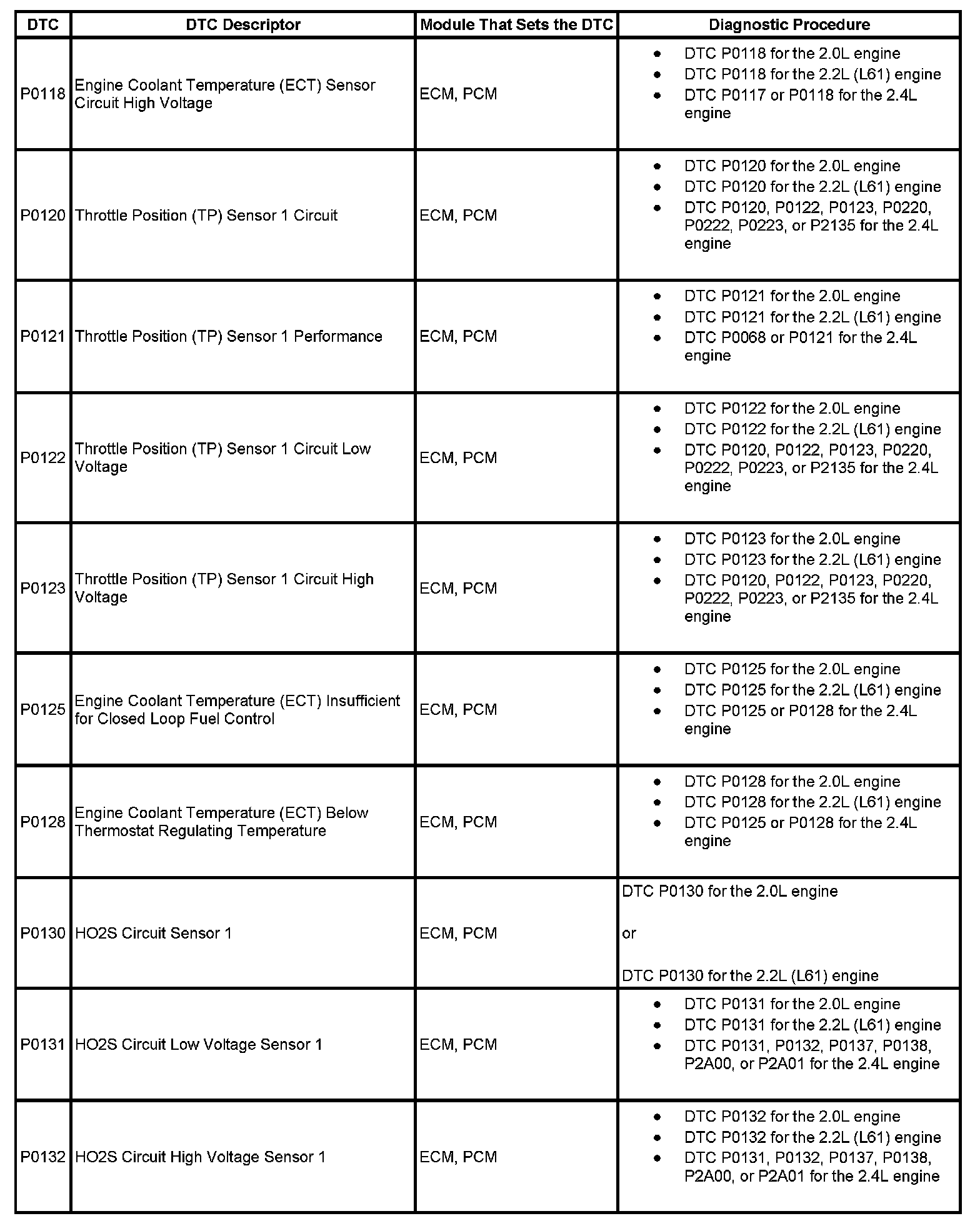

DTCs P0118 - P0132:

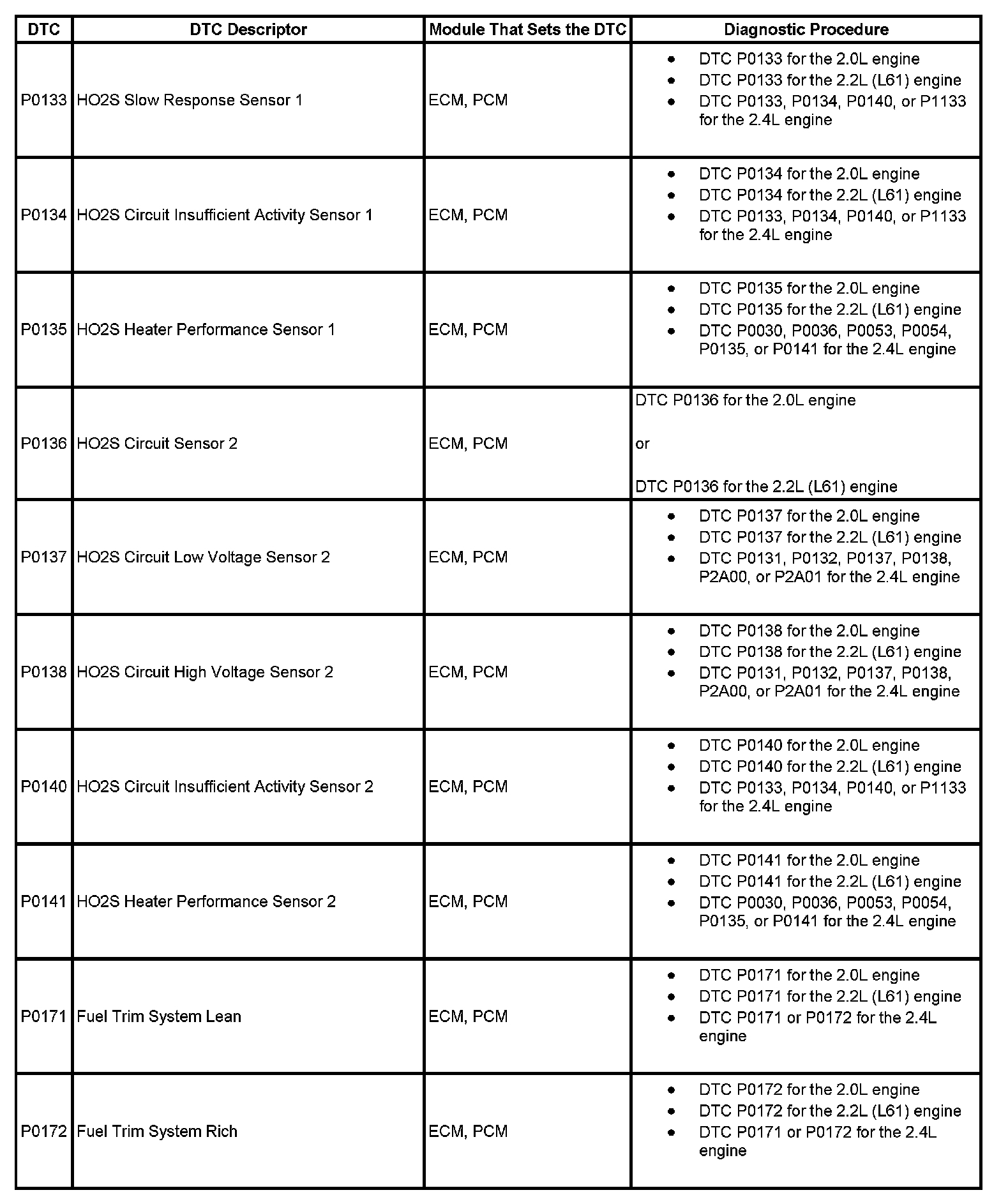

DTCs P0133 - P0172:

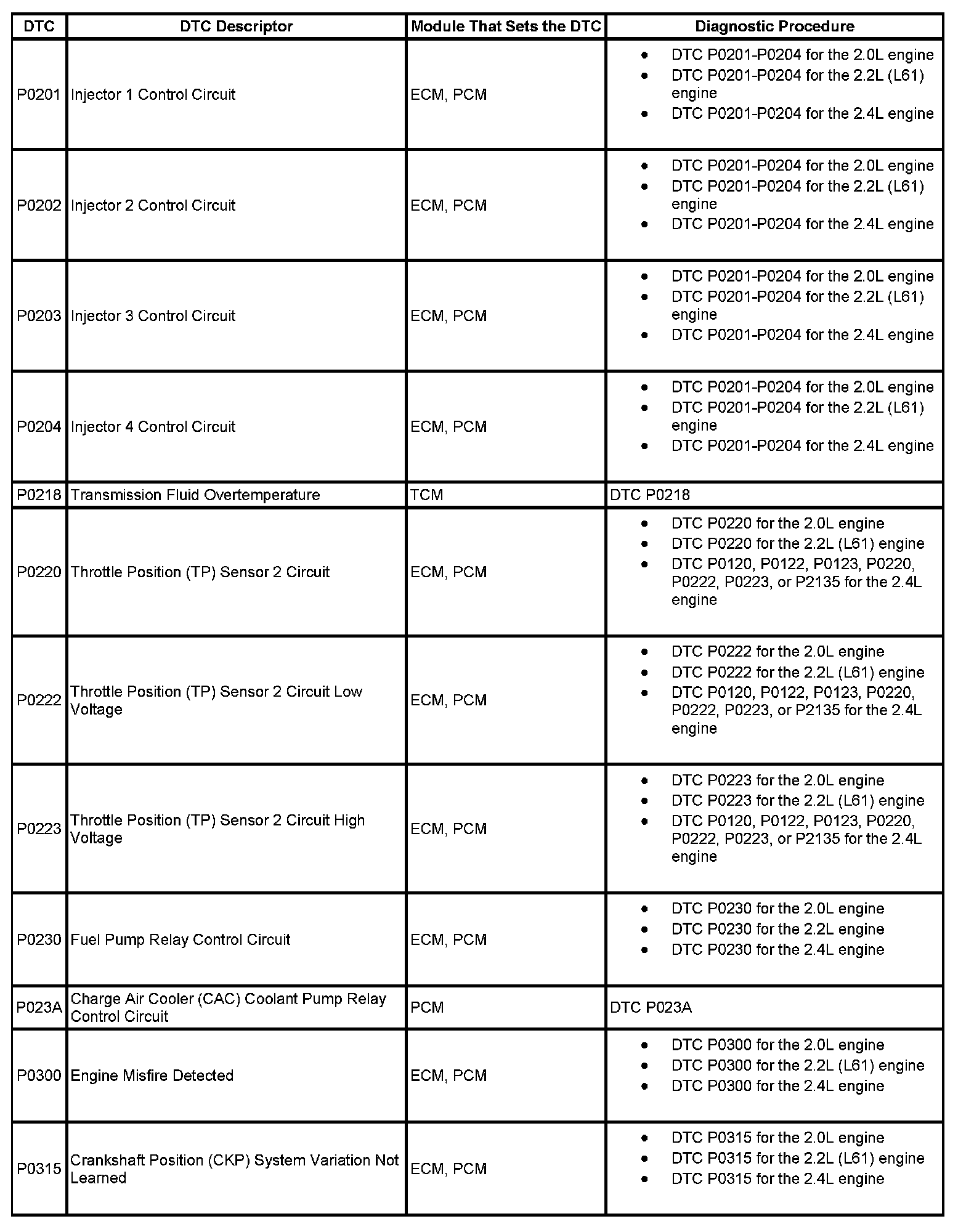

DTCs P0201 - P0315:

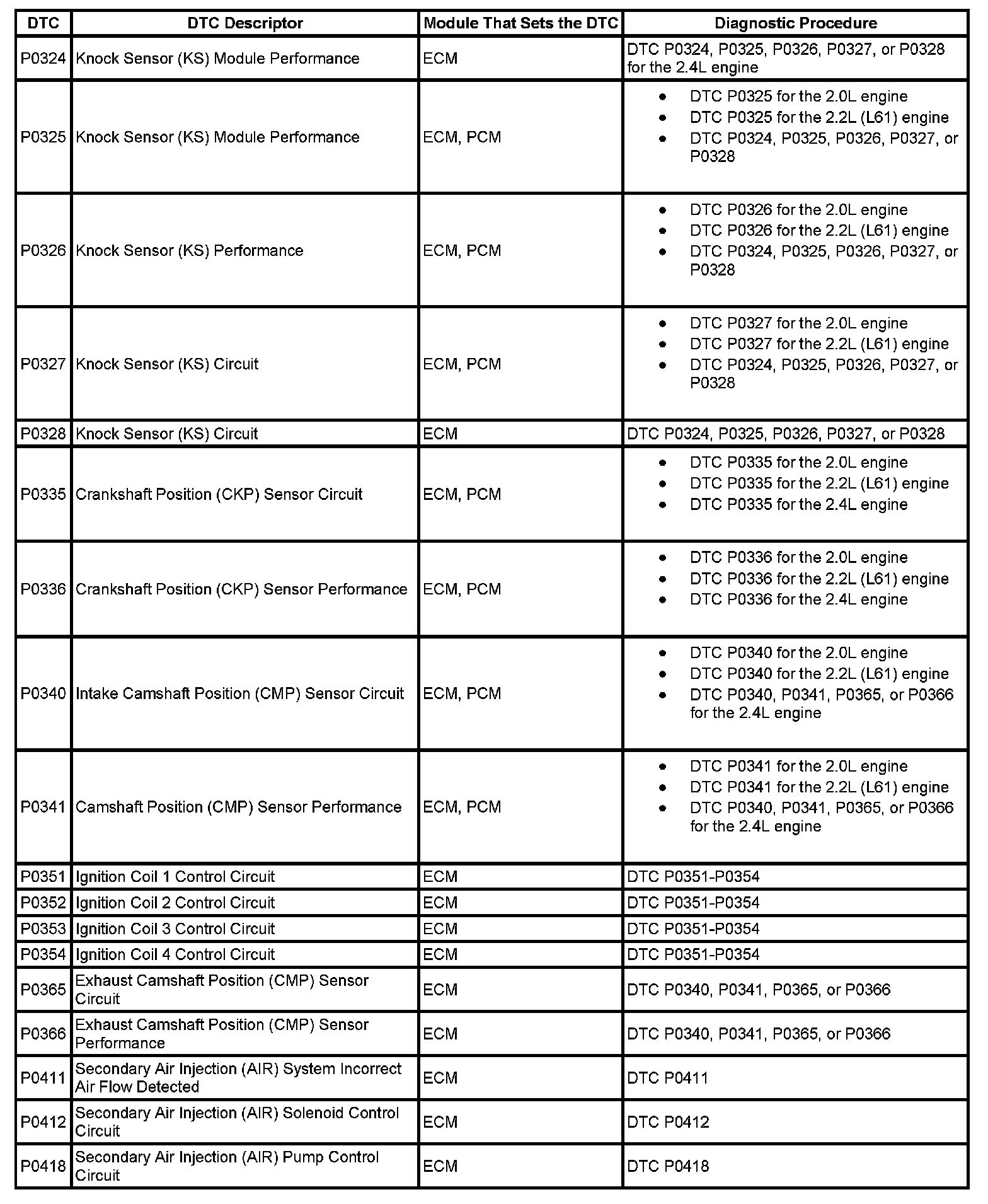

DTCs P0324 - P0418:

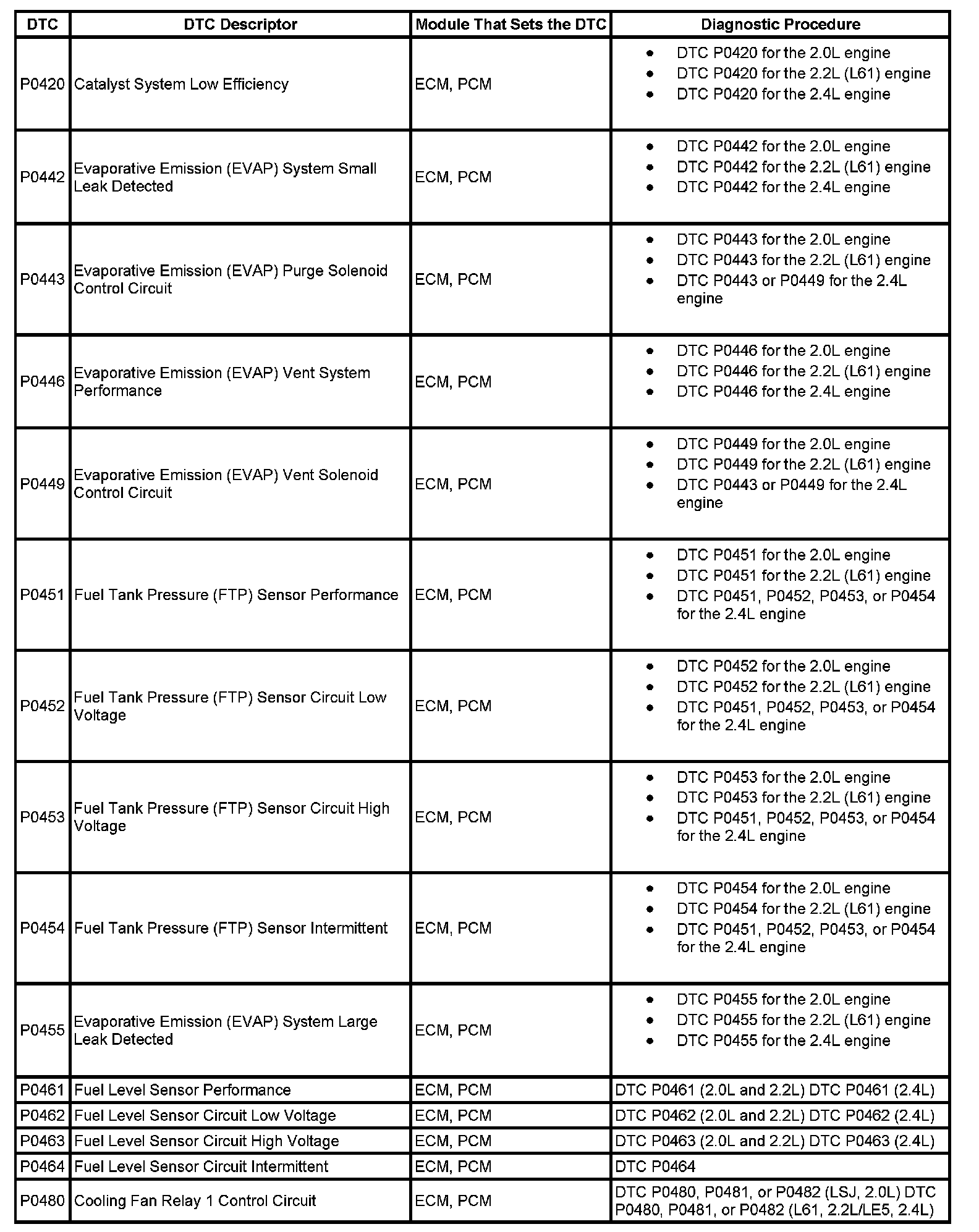

DTCs P0420 - P0480:

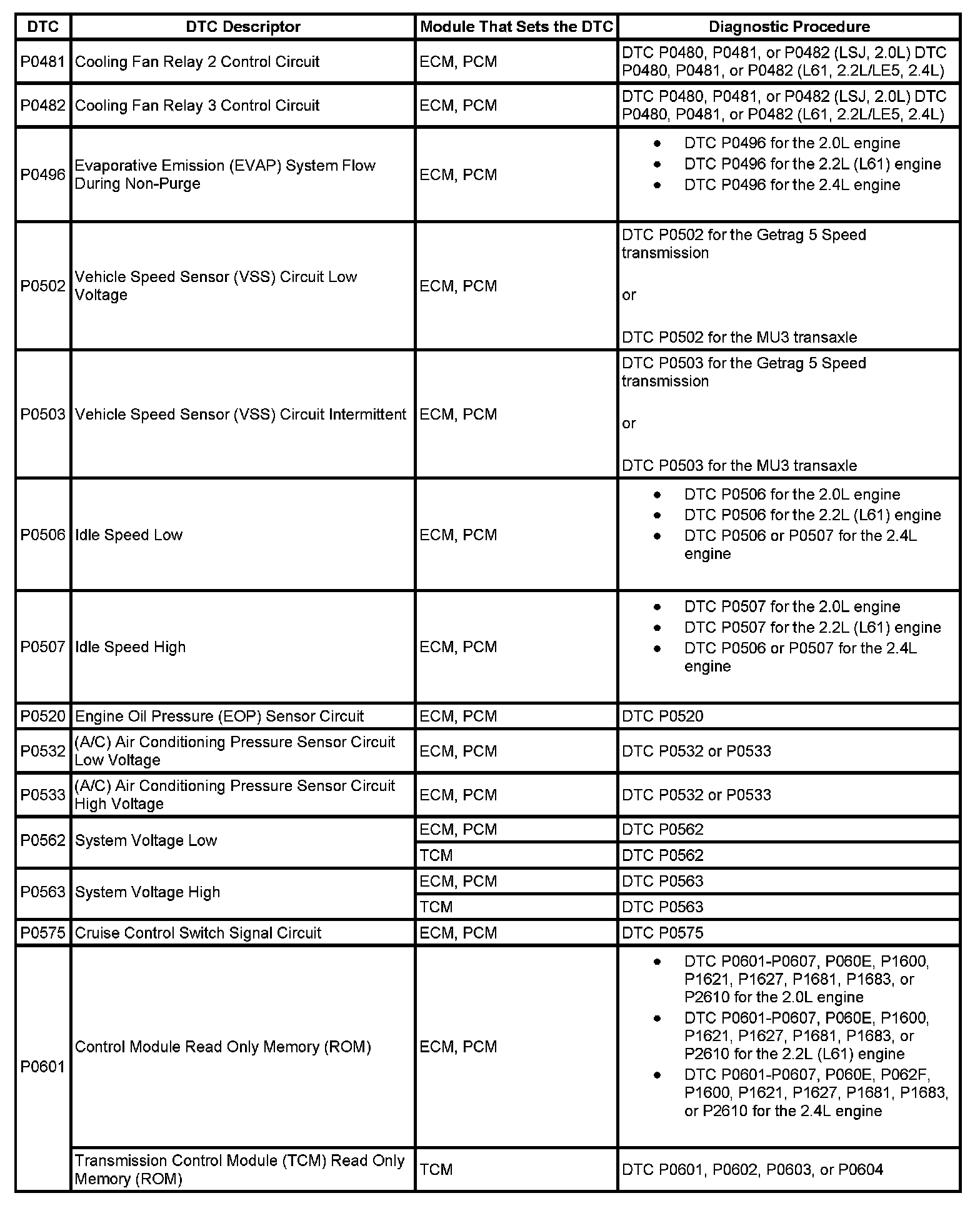

DTCs P0481 - P0601:

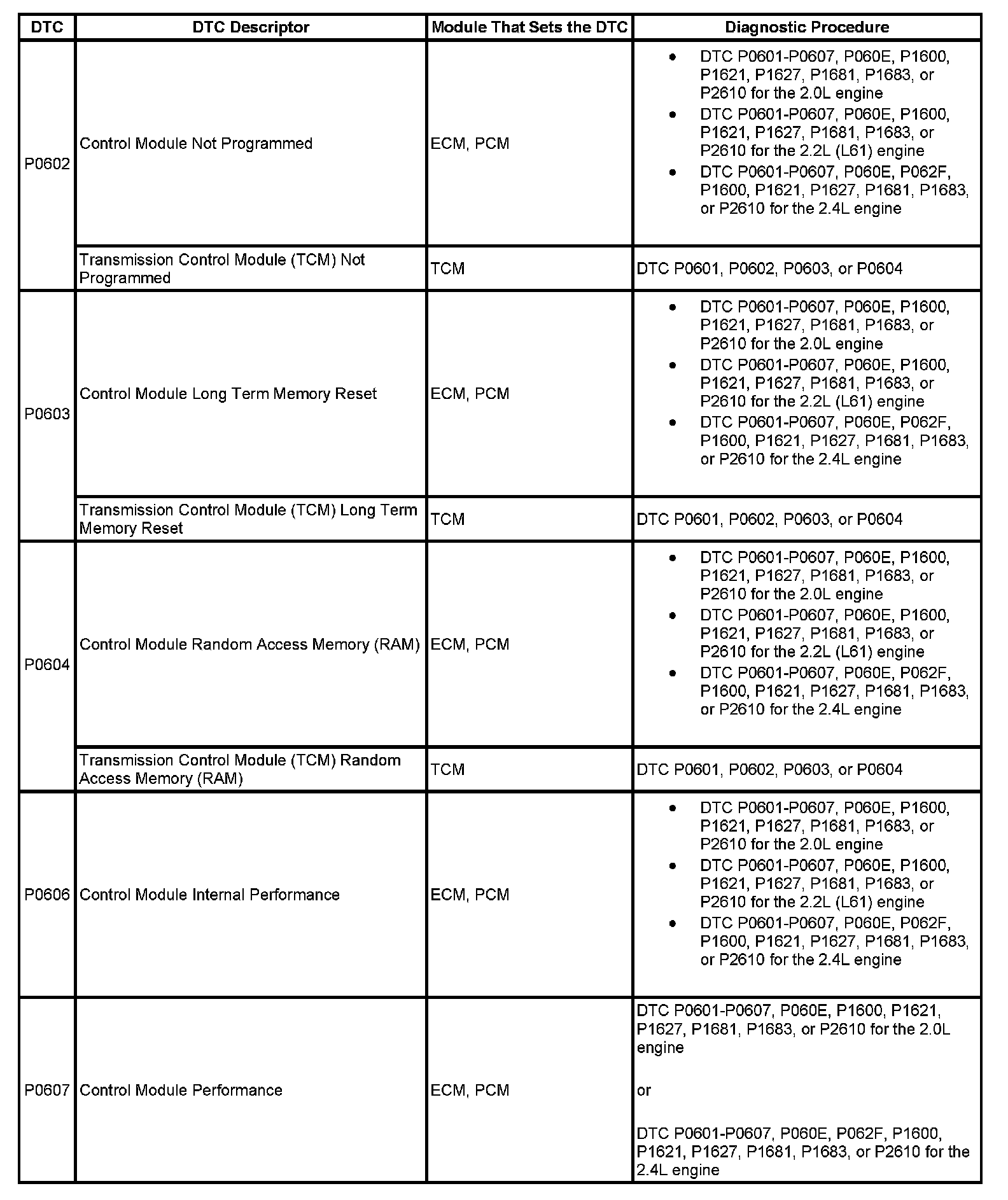

DTCs P0602 - P0607:

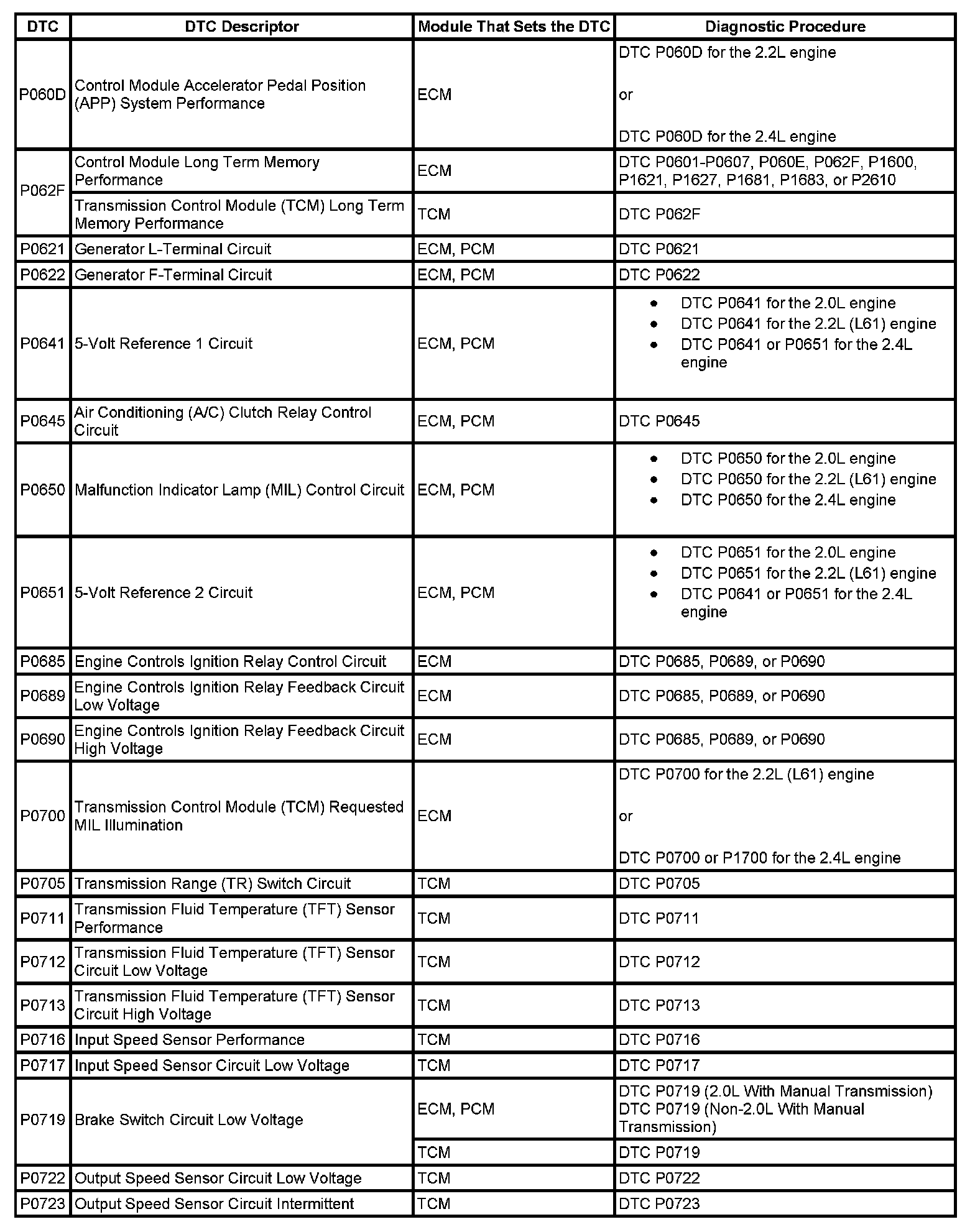

DTCs P060D - P0723:

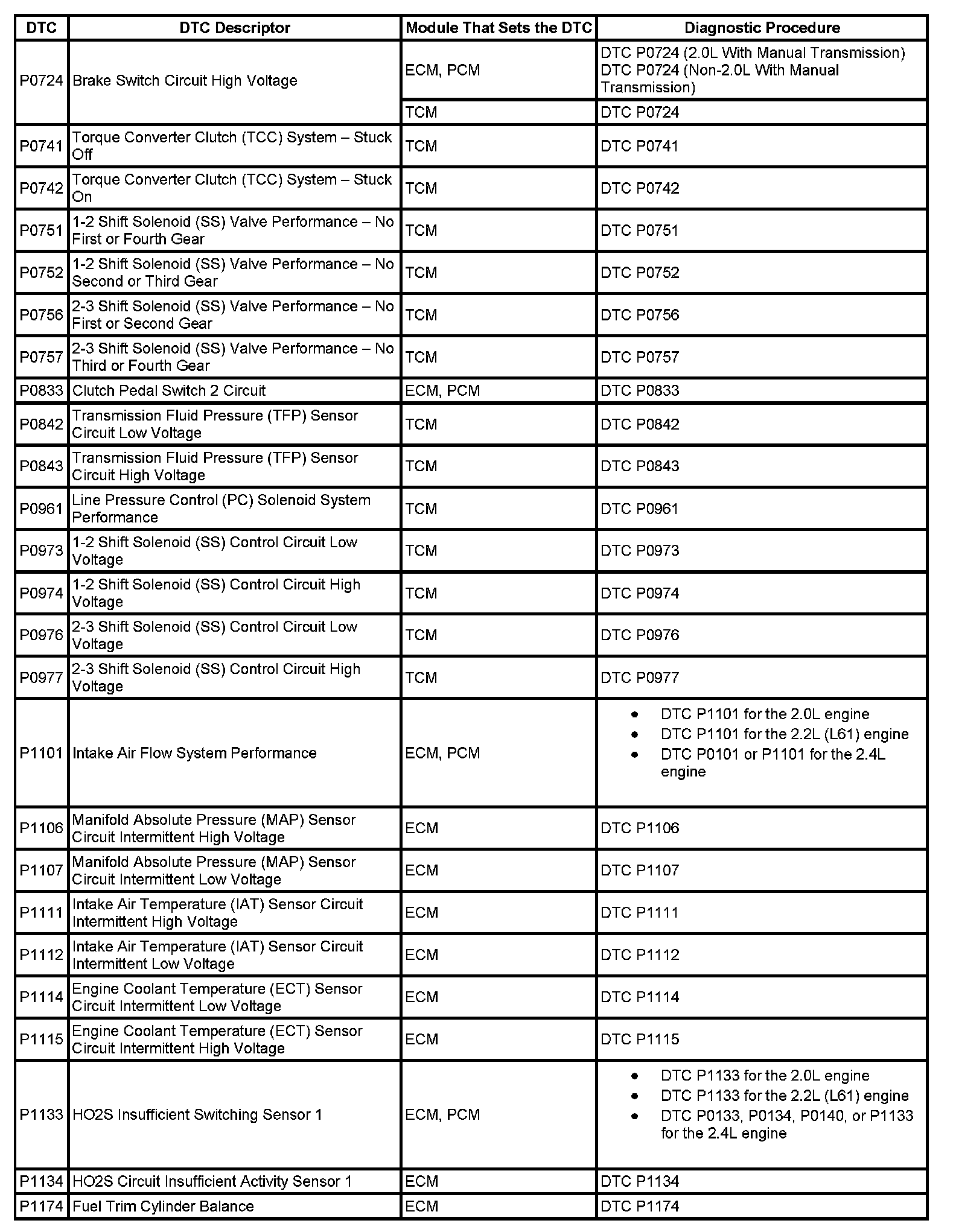

DTCs P0724 - P1174:

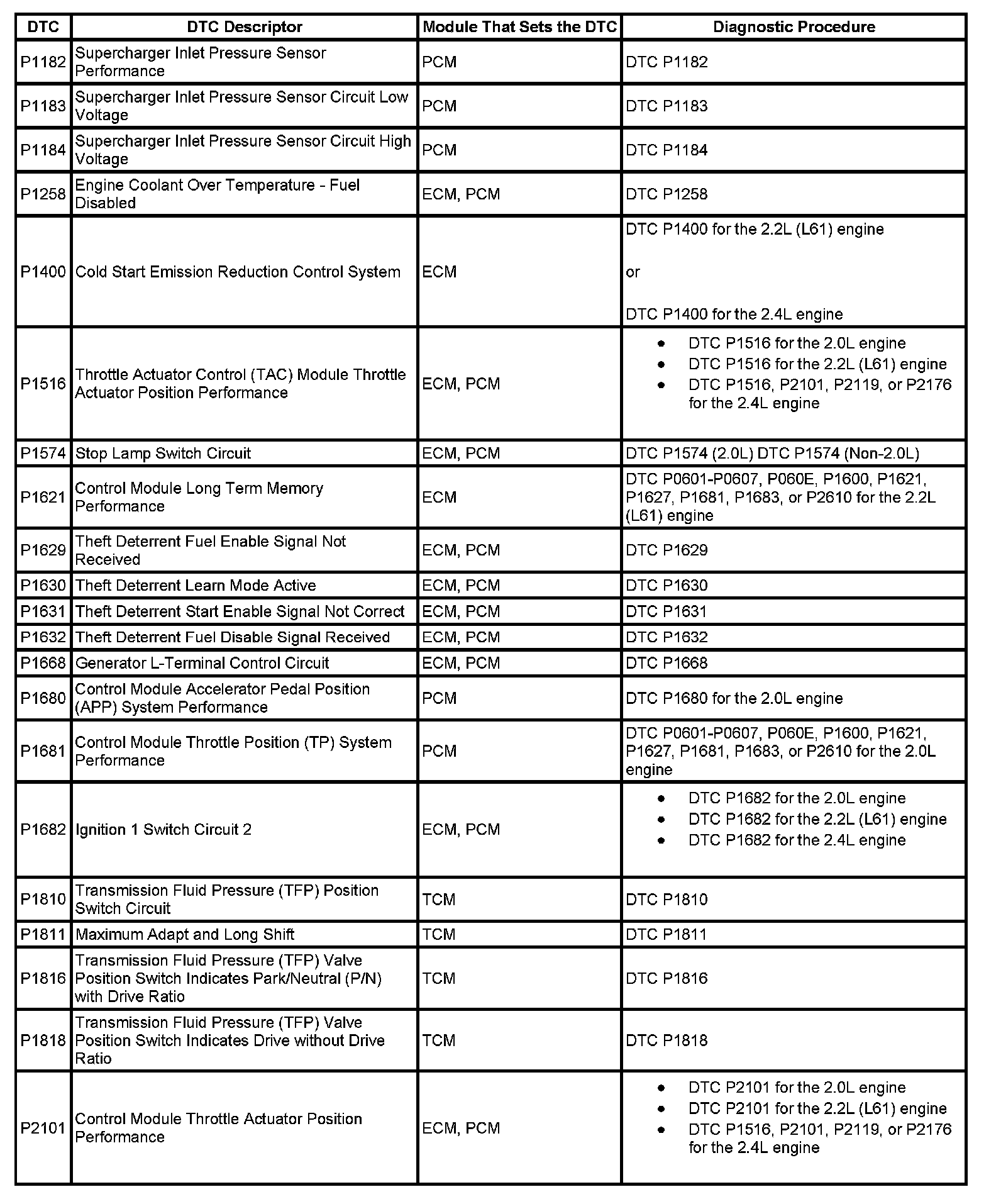

DTCs P1182 - P2101:

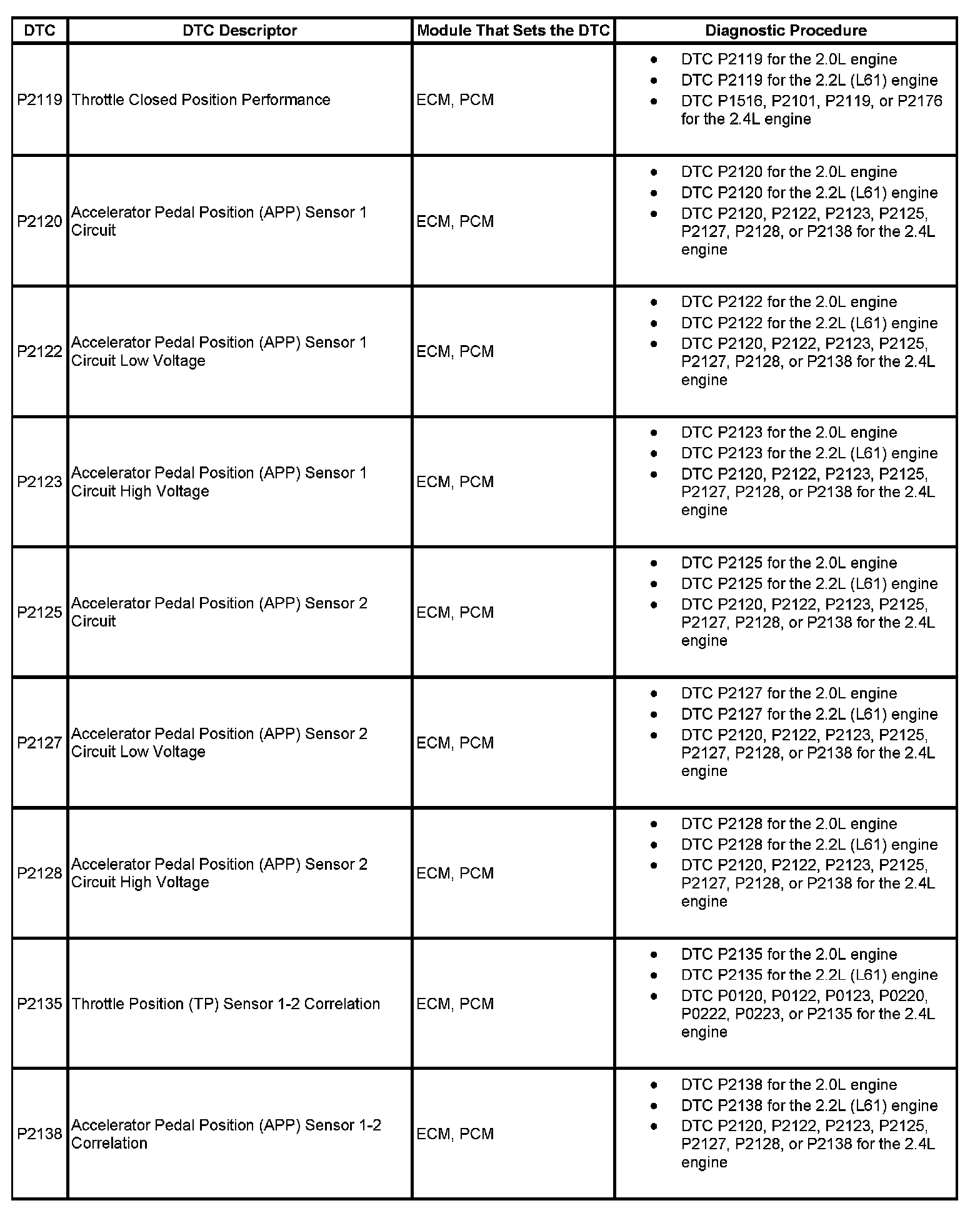

DTCs P2119 - P2138:

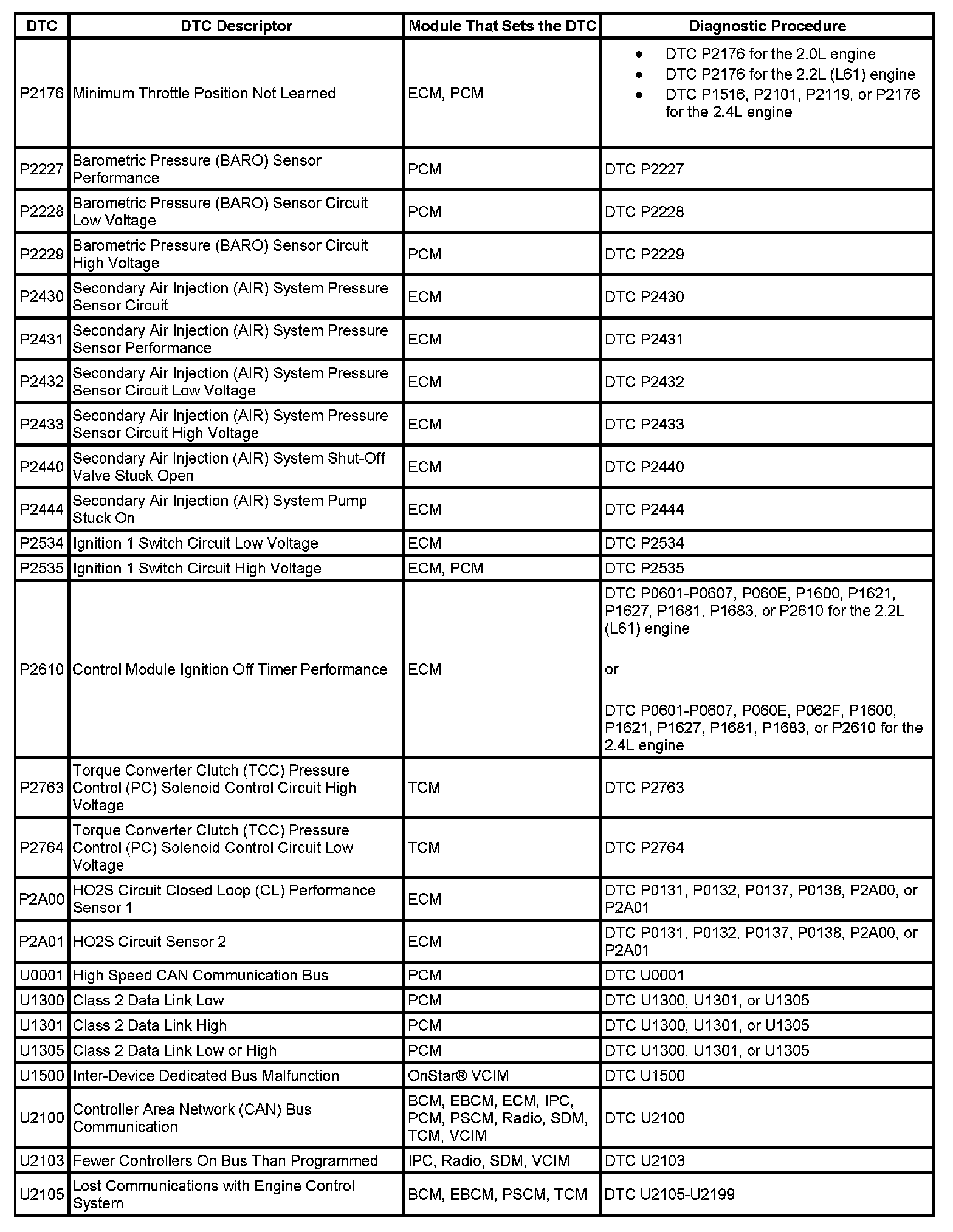

DTCs P2176 - U2105:

DTCs U2106 - 065:

This master DTC list includes all applicable DTCs in alphanumeric order with descriptors.

The GMLAN modules on this vehicle also support DTC Symptom information. Refer to DTC Symptom Description for additional information on DTC Symptoms. DTC Symptom Description
