B3976

DTC B3976

CIRCUIT DESCRIPTION
When the theft deterrent control module is in the learn coded key mode or learn more keys mode and the crypt valet mode is enabled, the theft deterrent control module checks the passkey III plus key to ensure it has been configured as a master key or a valet key.

DTC DESCRIPTOR




This diagnostic procedure supports the following DTC:
DTC B3976 Unconfigured Transponder

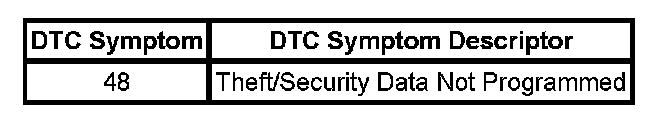

This vehicle has DTCs which include DTC symptoms. For more information on DTC symptoms, refer to DTC Symptom Description. DTC Symptom Description

CONDITION FOR RUNNING THE DTC
- The ignition switch is in the ACC or Run position.
- The theft deterrent control module is in the learn coded key mode or learn more keys mode.
- The crypt valet mode is enabled in the theft deterrent control module.

CONDITIONS FOR SETTING THE DTC
The theft deterrent control module has determined that the passkey III+ (PK3+) key has not been configured as a master key or a valet key.

ACTION TAKEN WHEN THE DTC SETS
- The vehicle will not start.
- The security indicator will illuminate.

CONDITIONS FOR CLEARING THE MIL/DTC
- The Theft Deterrent control module clears the current DTC when the condition for setting is not present and the ignition is cycled from OFF to ON.
- A history DTC will clear after 100 malfunction-free ignition cycles.
- The DTC can be cleared by using a scan tool.

TEST DESCRIPTION

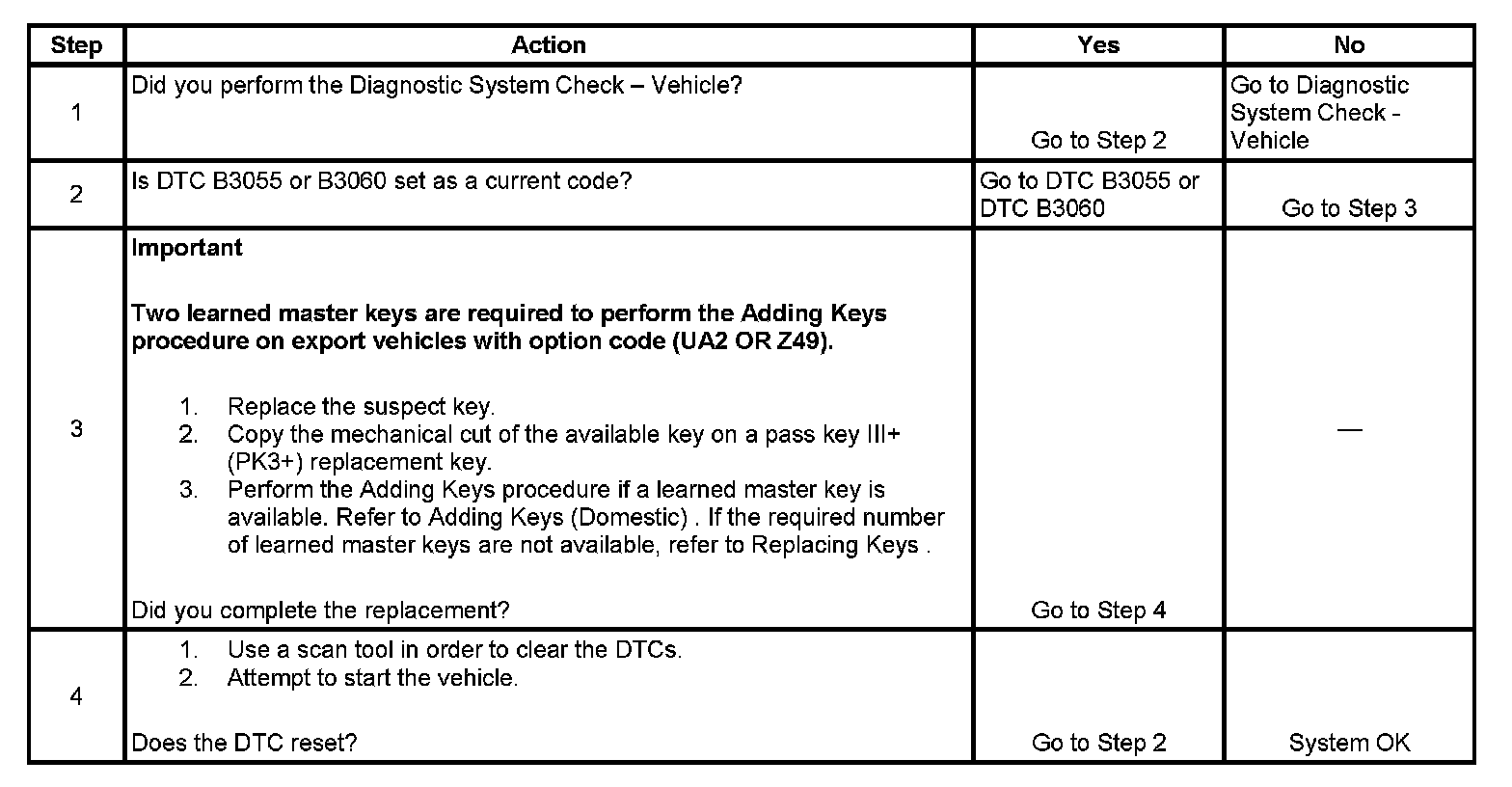

Step 1 - Step 4:

The numbers below refer to the step numbers on the diagnostic table:
2. This step verifies that the conditions for setting DTC B3055 or B3060 are not current.
3. The key must have the proper mechanical cut and the theft deterrent control module must "learn" the transponder value.
