Electrical Diagrams

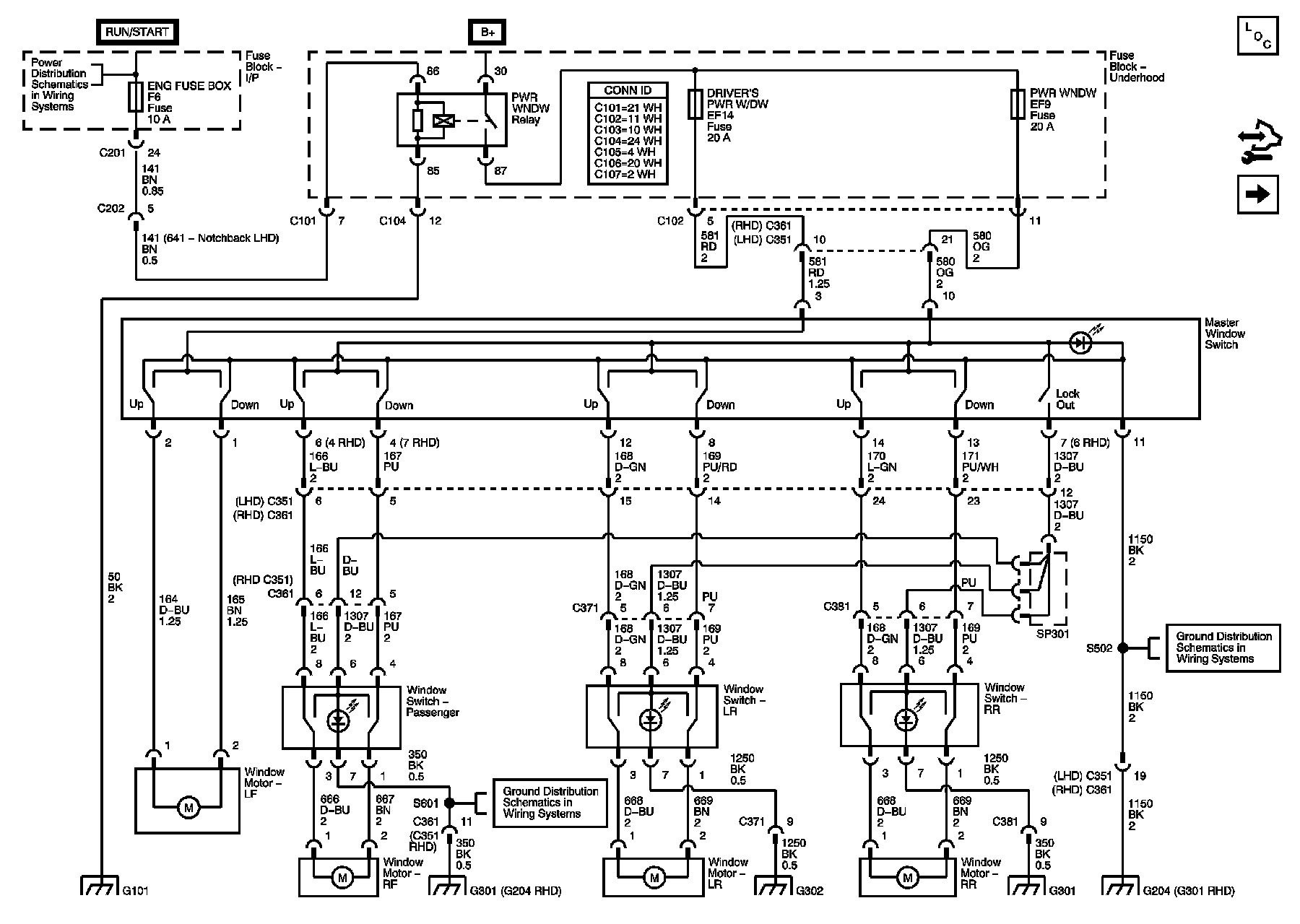

Power Window Schematics

Front/Rear Power Windows





Master Electrical Component List
Front Power Windows
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
G402
G303, G401
G101
G302
G303, G401
G302
G402

Front Power Windows





Master Electrical Component List
Front/Rear Power Windows
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
G402
G303, G401
G101
G302
G402
