D20 - Manual Transmission

Drive Axle Seal Replacement

Tools Required

KM-519 Ring Installer

Removal Procedure

Important:
Do not damage the bearing adjusting ring with the pry bar.






1. Remove the drive axle from the transaxle. Refer to Front Drive Axle Inner Shaft Replacement (Manual) Front Drive Axle Inner Shaft Replacement (Manual)Front Drive Axle Inner Shaft Replacement (Automatic) Front Drive Axle Inner Shaft Replacement (Automatic).

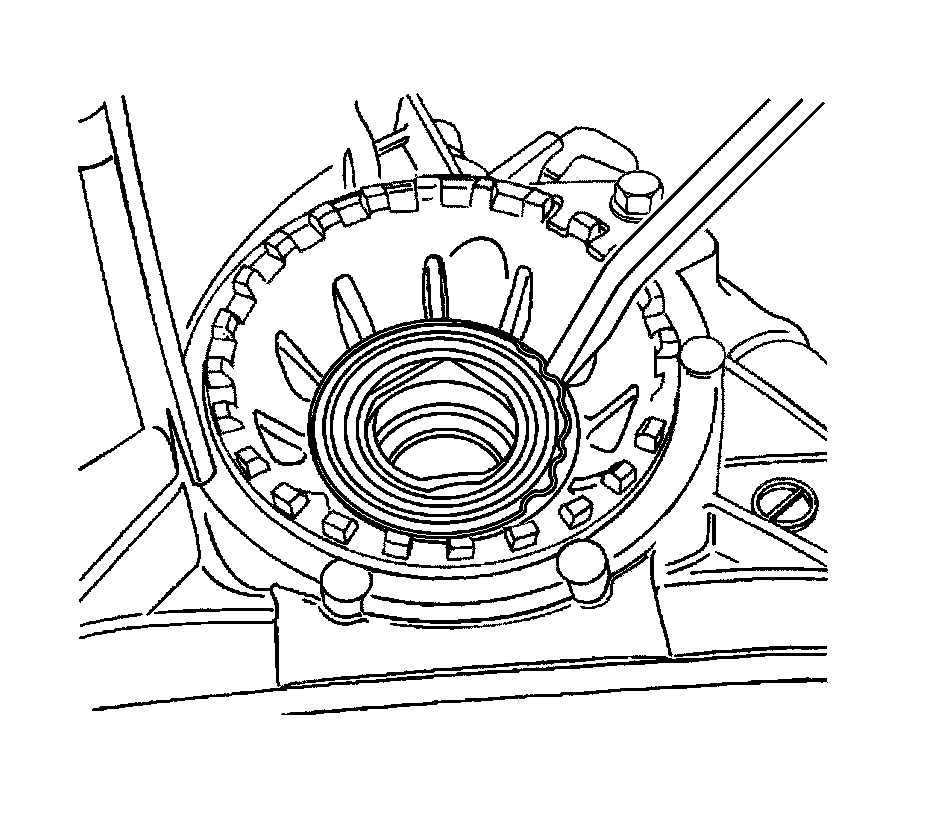

2. Remove the drive axle seal by lifting the outer lip of the seal with a pry bar.

Installation Procedure

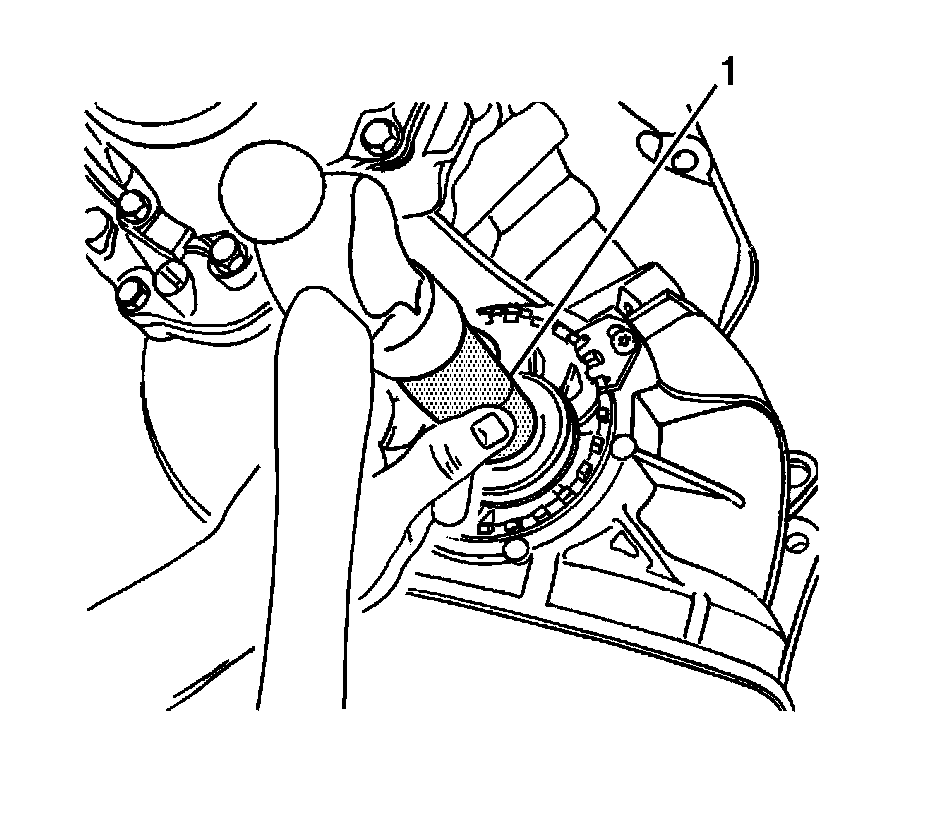

1. Install the new drive axle seal using the KM-519 (1) and a hammer.

2. Coat the seal lip with the transaxle fluid.

3. Install the drive axle. Refer to Front Drive Axle Inner Shaft Replacement (Manual) Front Drive Axle Inner Shaft Replacement (Manual)Front Drive Axle Inner Shaft Replacement (Automatic) Front Drive Axle Inner Shaft Replacement (Automatic).
