Electrical Diagrams

Shift Lock Control Schematics

Automatic Transmission Shift Lock Control Schematics - w/o Ignition Lock Cylinder Control Actuator





Master Electrical Component List
w/Ignition Lock Cylinder Control Actuator
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
G203
G203

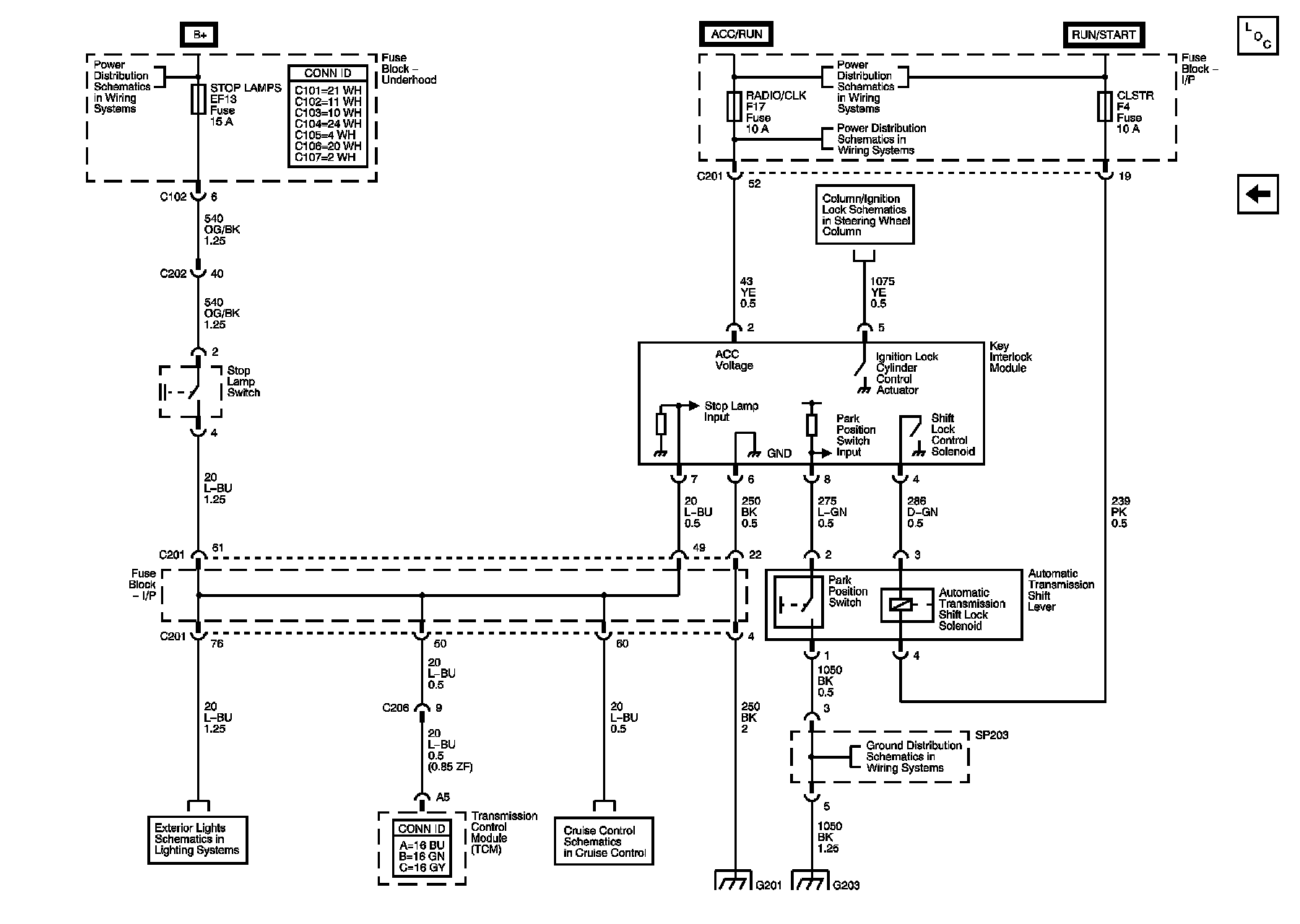

Automatic Transmission Shift Lock Control Schematics - With Ignition Lock Cylinder Control Actuator





Master Electrical Component List
w/o Ignition Lock Cylinder Control Actuator
Underhood Fuse Block IP FUSE, DR/LOCK and STOP LAMP Fuses
I/P Fuse Block RADIO/CLK, AUX LTR, and LTR Fuses
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
Column/Ignition Lock Schematics
G203
Stop Lamps Notchback
Stop Lamps Hatchback
Manual Transmission
Automatic Transmission
G201 (2 of 2)
G203
