23. One Way Clutch Assemble

One Way Clutch Assemble





1. Install the retainer on the 2nd brake hub.

2. Install the one-way clutch.





3. Using a screwdriver, install the snap ring.





4. Install the one-way clutch and thrust washer to the rear planetary sun gear.

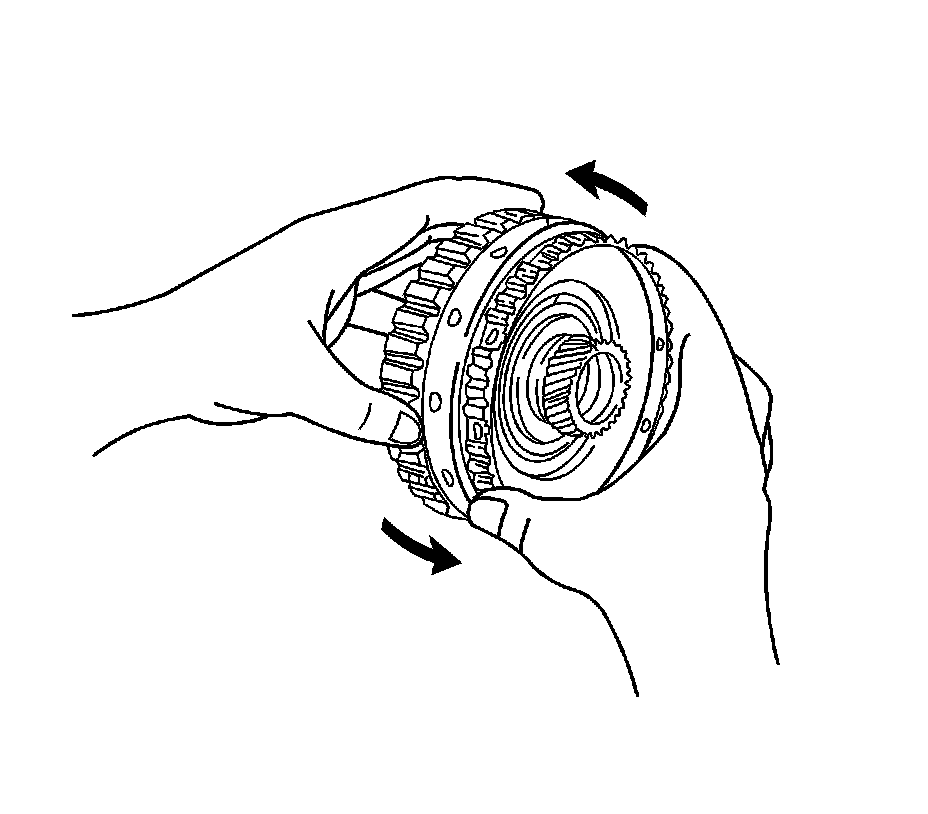

5. Hold the rear planetary sun gear and turn the one-way clutch. The one-way clutch should turn freely counterclockwise and should lock clockwise.
