Control Arm Bushing: Service and Repair

Control Arm Bushing Replacement

Tools Required

KM-158 Remover/Installer

Removal Procedure





1. Remove the control arm. Refer to Control Arm Replacement Service and Repair.

2. Remove the split sleeves from the rear control arm bushing.





3. Press off the control arm rear damping bushing using a press and the KM-158.

Installation Procedure

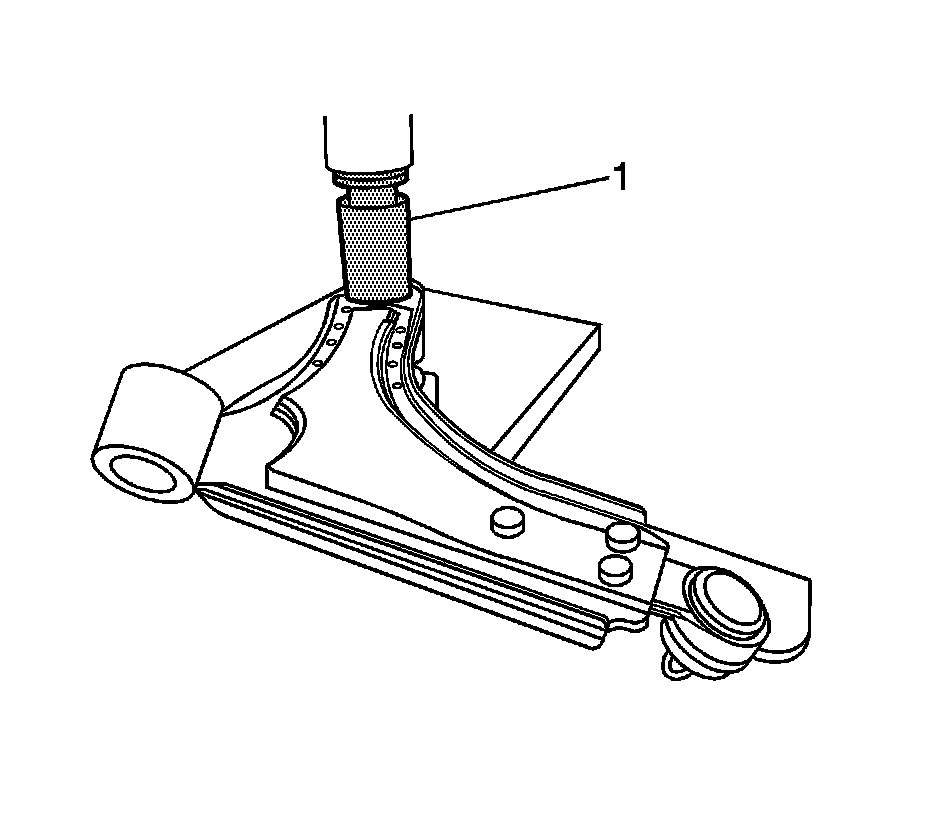

1. Press the control arm rear damping bushing into the control arm using KM-158 (1).

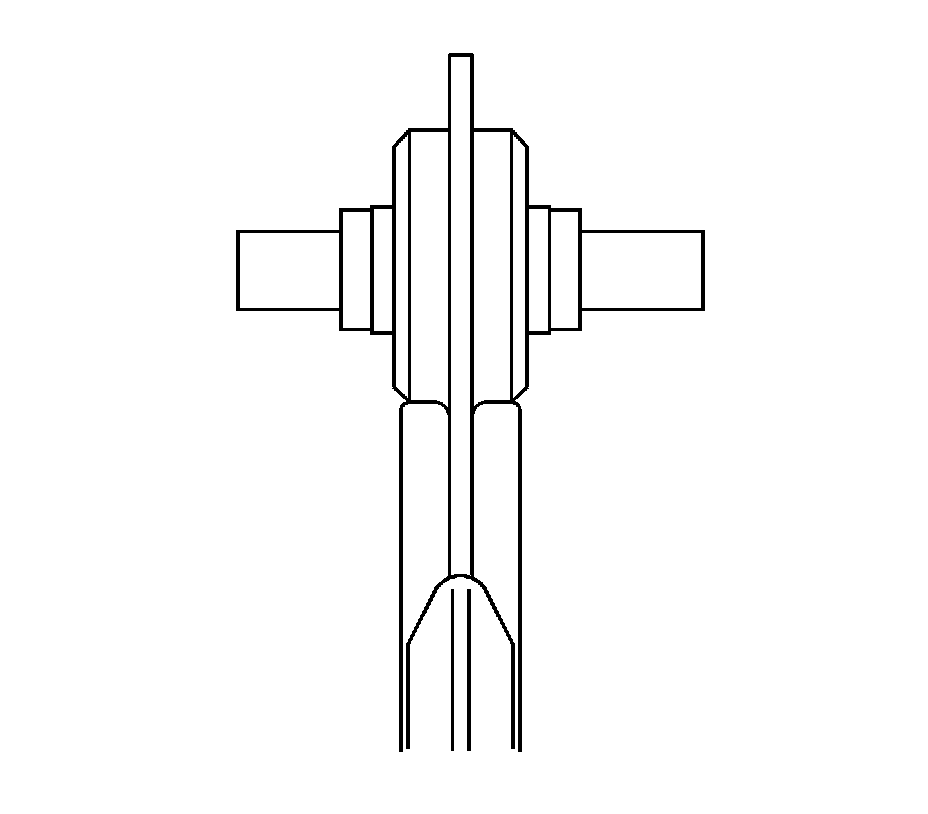

2. Install the split sleeves into the rear control arm bushing.

3. Install the control arm. Refer to Control Arm Replacement Service and Repair.
