Home >> Chevrolet >> 2005 >> Optra (CANADA) L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Auxiliary Power Outlet >> Diagrams >> Electrical Diagrams

Electrical Diagrams

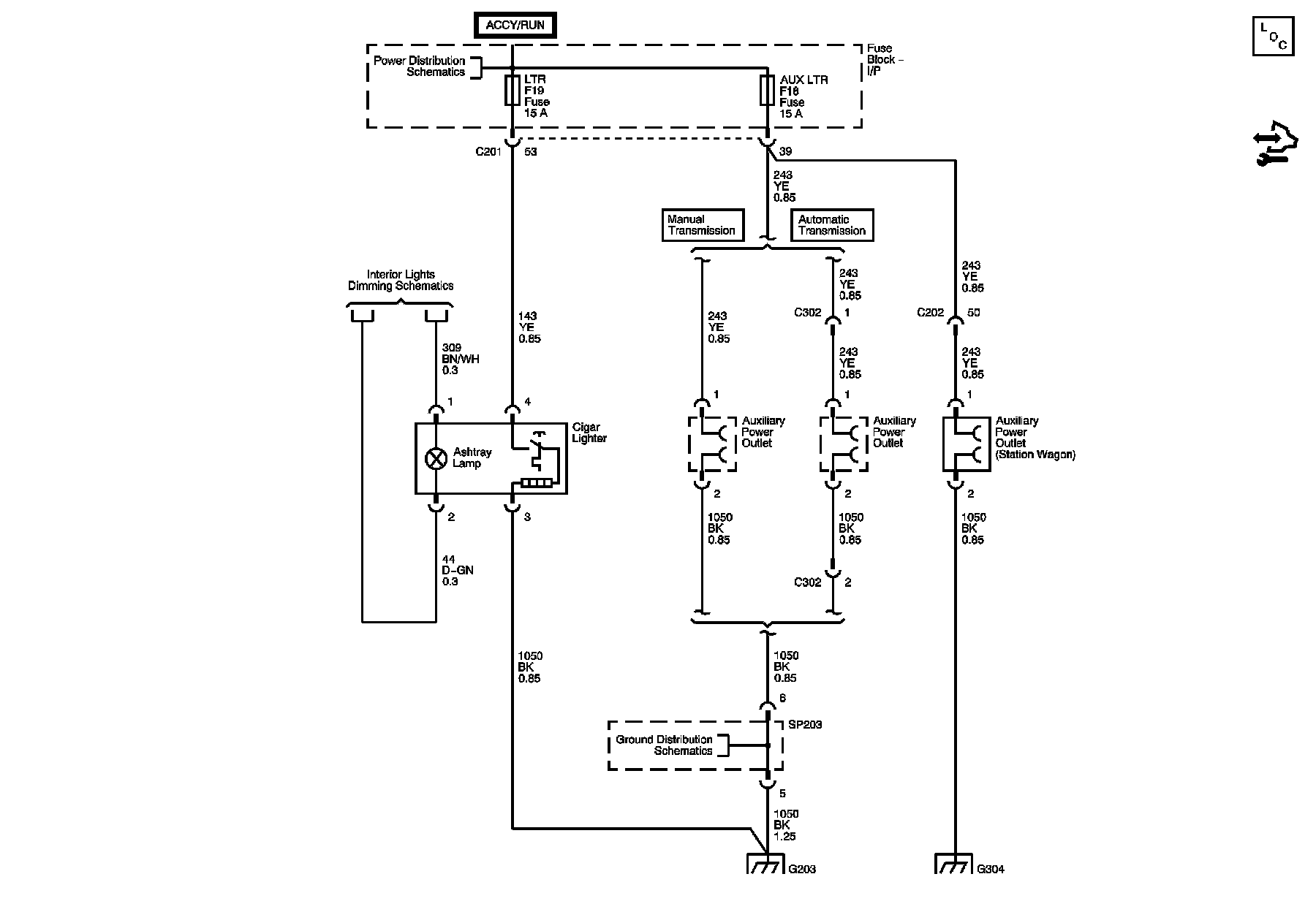

Cigar Lighter/Power Outlet Schematics





Master Electrical Component List
I/P Fuse Block RADIO/CLK, AUX LTR, and LTR Fuses
Interior Lights Schematics
G203
G203
