SIR Schematics

SIR Schematics

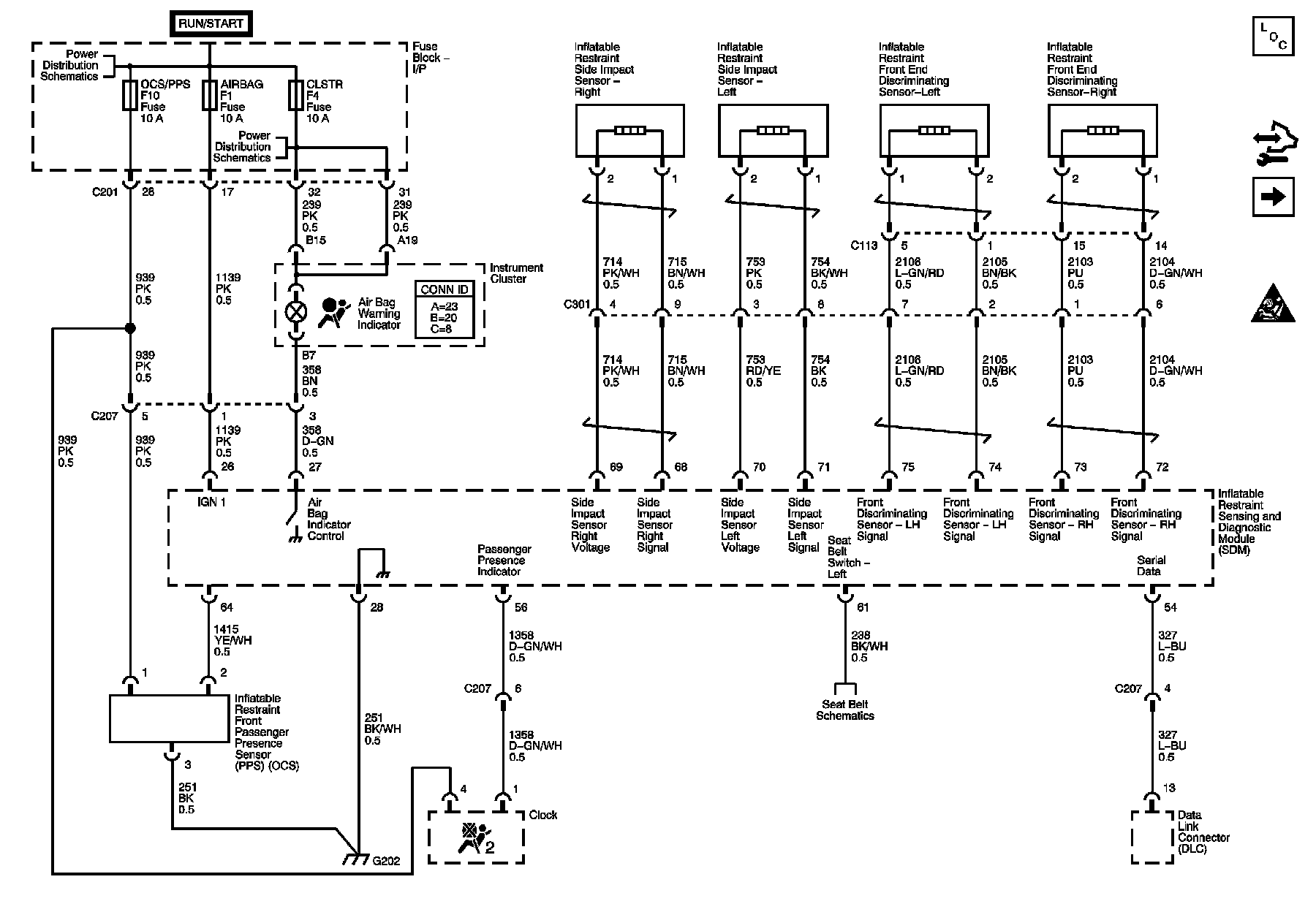

Dual Stage SIR 1 of 2





Master Electrical Component List

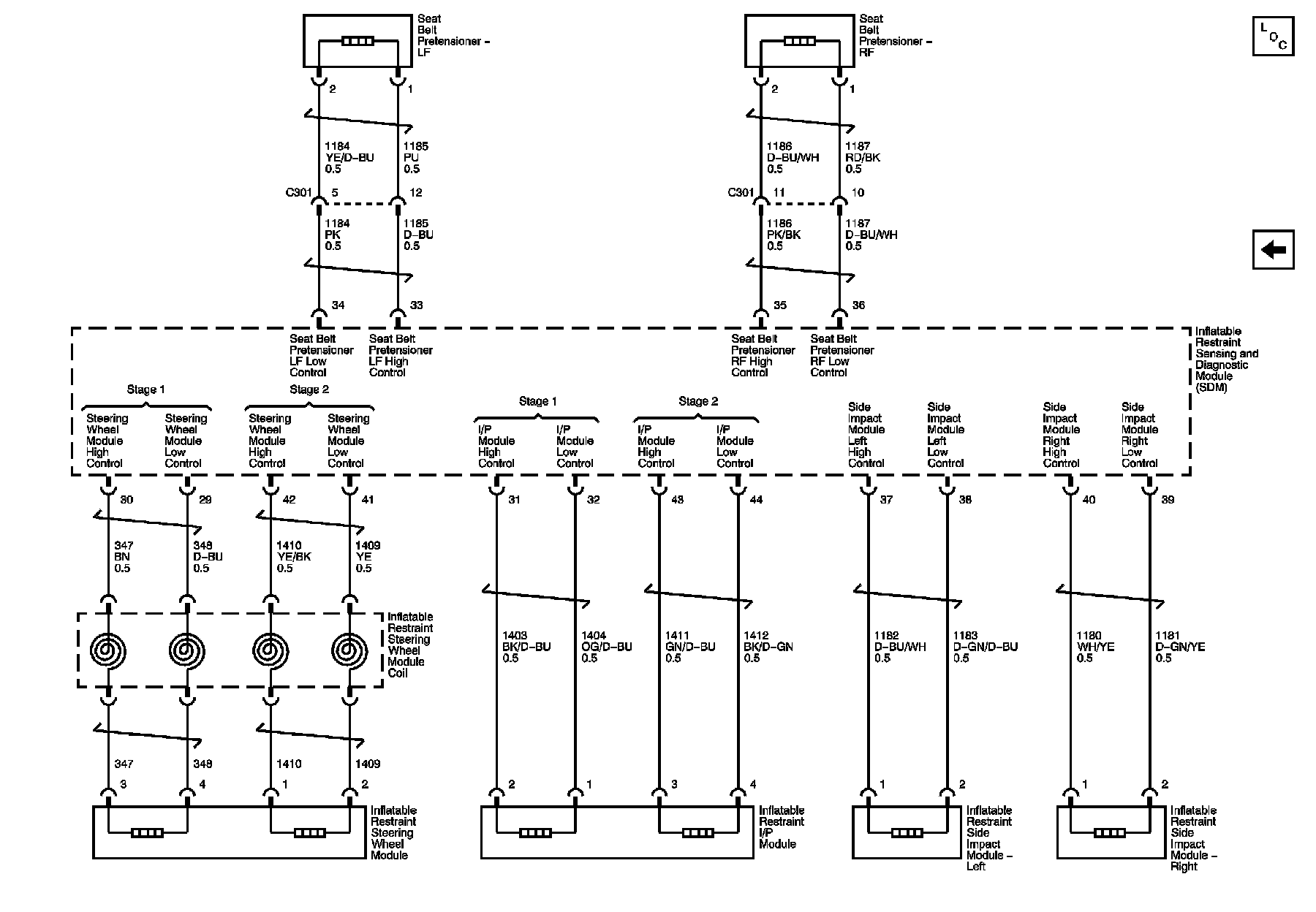

Dual Stage 2 of 2
SIR Caution
I/P Fuse Block ABS IMMOBILIZER, WRP, and TRN SIG LAMPS Fuses
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
Seat Belt Schematics
G202, G204

Dual Stage SIR 2 of 2





Master Electrical Component List
Dual Stage SIR 1 of 2

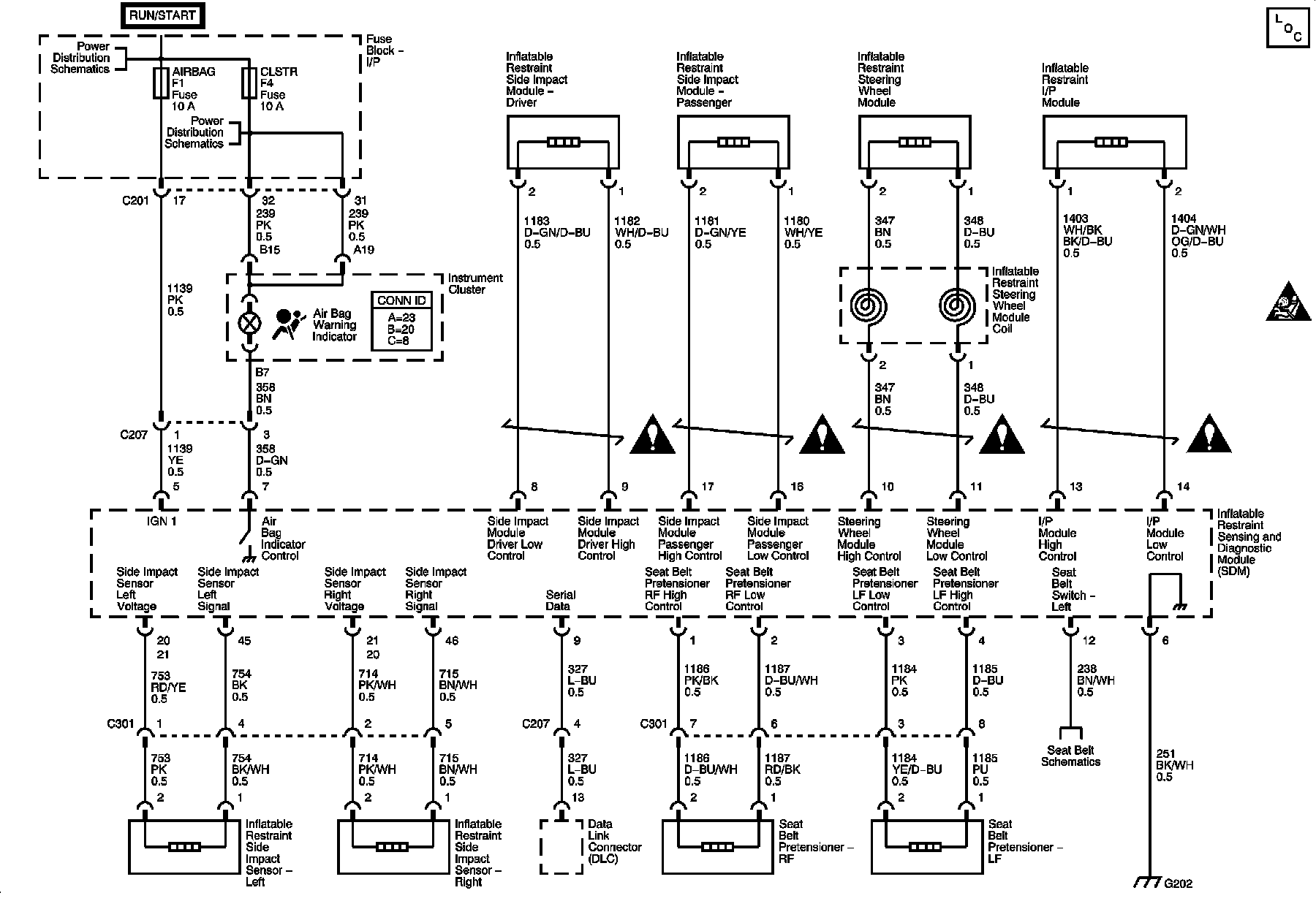

Single Stage SIR System





Master Electrical Component List
SIR Caution
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
G202, G204
