Shift Interlock Solenoid: Service and Repair

Shift Lock Control Solenoid Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Remove the floor console. Refer to Front Floor Console Replacement Service and Repair.

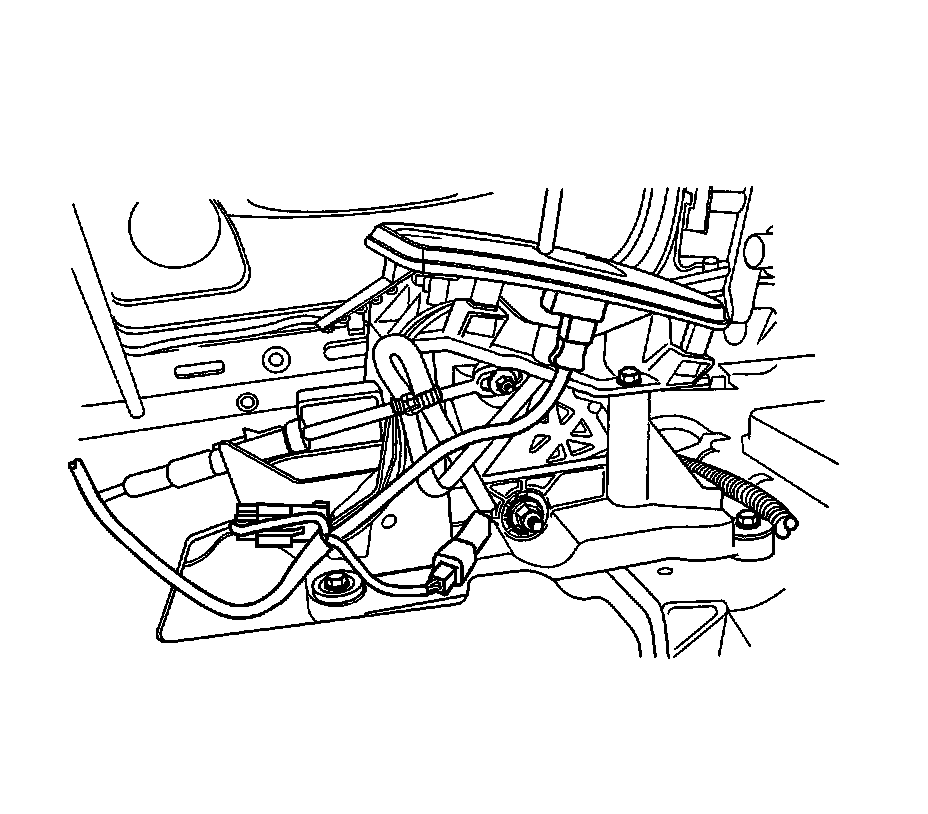

3. Disconnect the wiring harness connectors from the shift control lever.

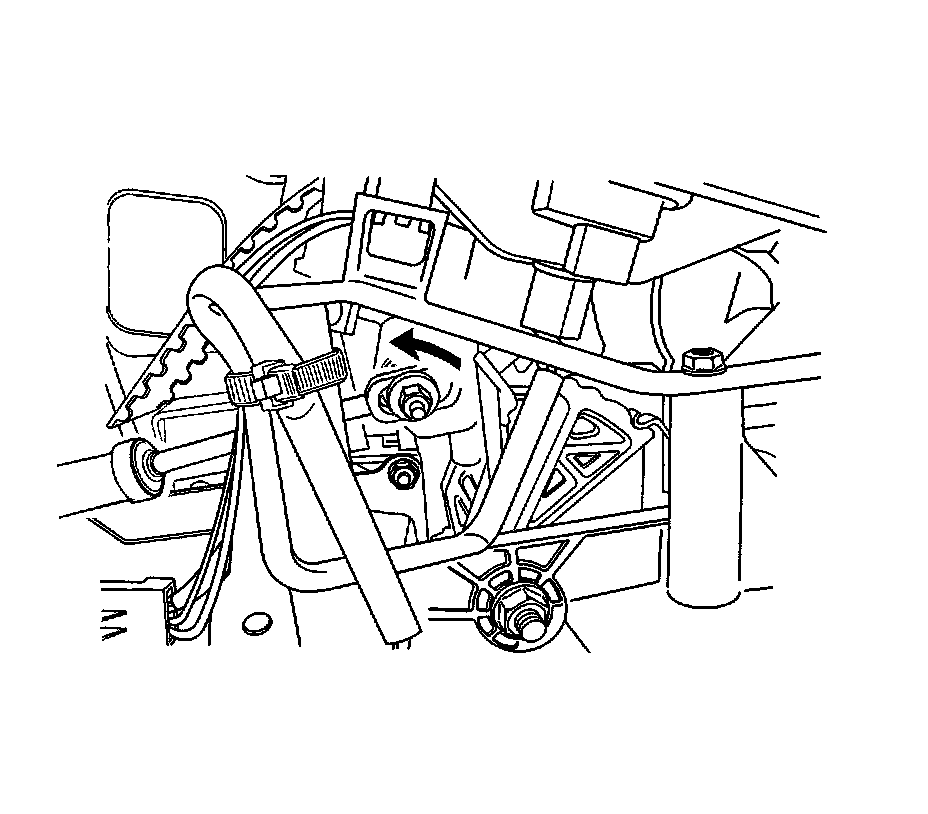

4. Loosen the control cable adjusting nut.

5. Disconnect the control cable from the shift control lever assembly.

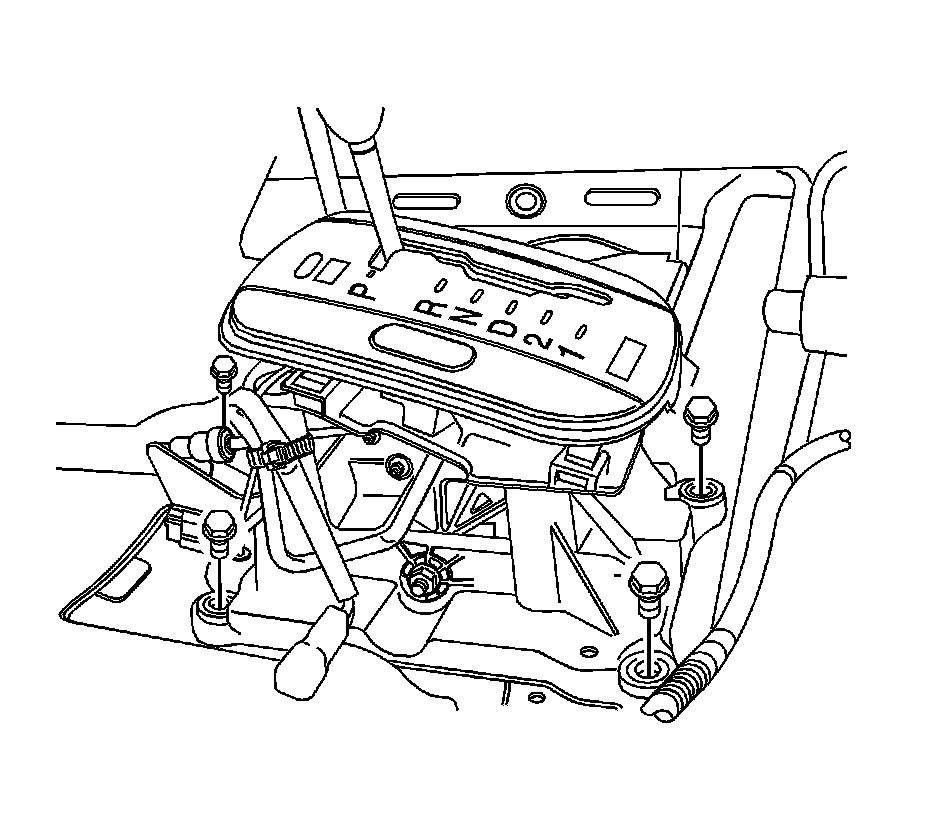

6. Remove the shift control lever assembly mounting bolts.

7. Remove the shift control lever assembly.

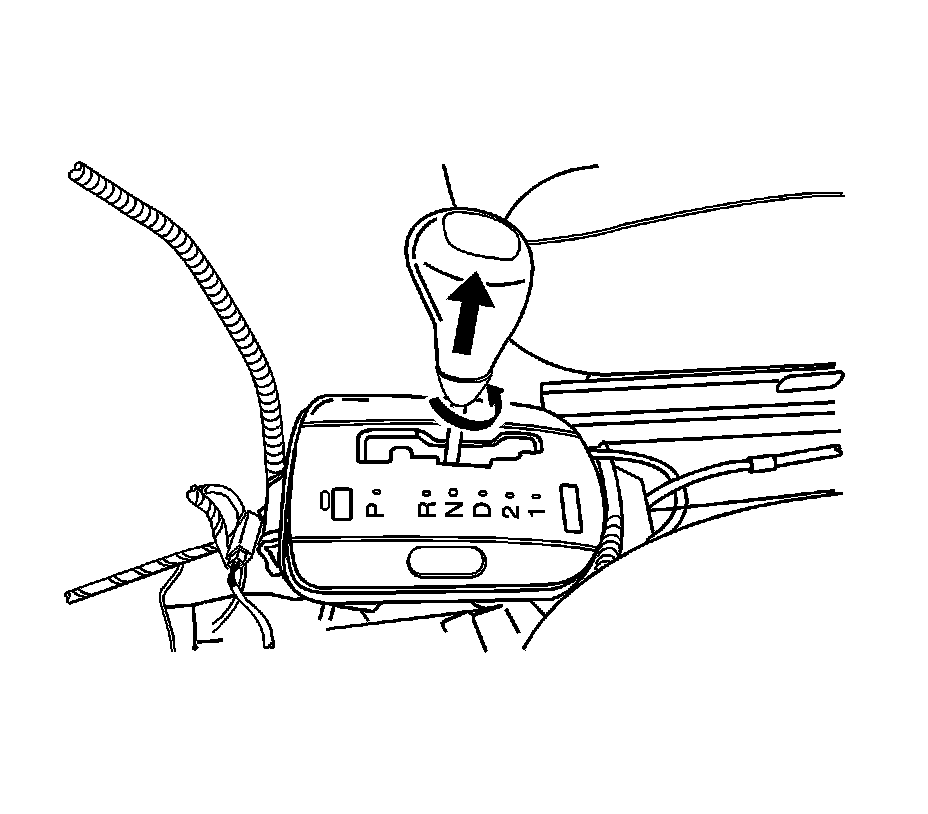

8. Remove the two shift lever control knob retaining screws, the then knob from the assembly.

9. Carefully remove the shift select cover from the lever assembly.

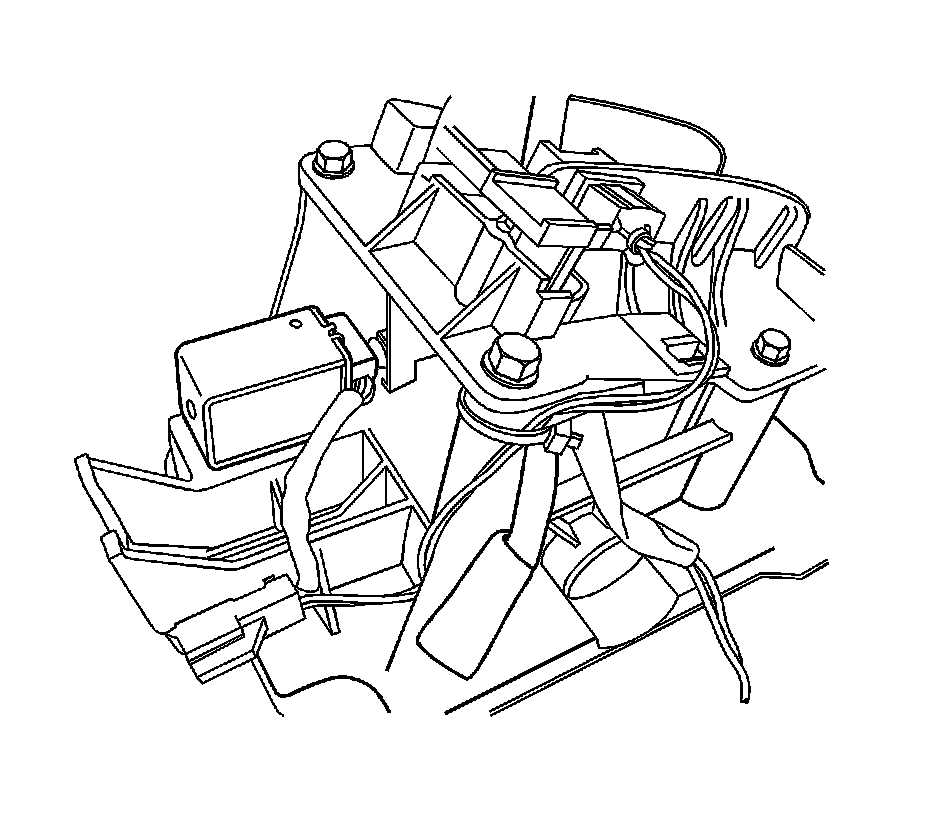

10. Remove the shift lock solenoid retaining screws.

11. Remove the solenoid from the assembly.

Installation Procedure

1. Install the shift lock solenoid on the assembly.





2. Install the shift lock solenoid retaining screws.

3. Carefully install the shift select cover to the lever assembly.

4. Install the shift lever control knob, then the retaining screws.





Notice:
Refer to Fastener Notice Fastener Notice.

5. Install the shift control lever assembly and mounting bolts.

Tighten the shift control lever assembly mounting bolts to 8 Nm (71 lb in).





6. Connect the control cable to the shift control lever assembly.

7. Tighten the control cable adjusting nut.

Tighten the control cable adjusting nut to 8 Nm (71 lb in).





8. Connect the harness connector.

9. Adjust the control cable. Refer to Range Selector Lever Cable Adjustment Aisin 81-40LE - Automatic Transmission.

10. Install the floor console. Refer to Front Floor Console Replacement Service and Repair.

11. Connect the negative battery cable.
