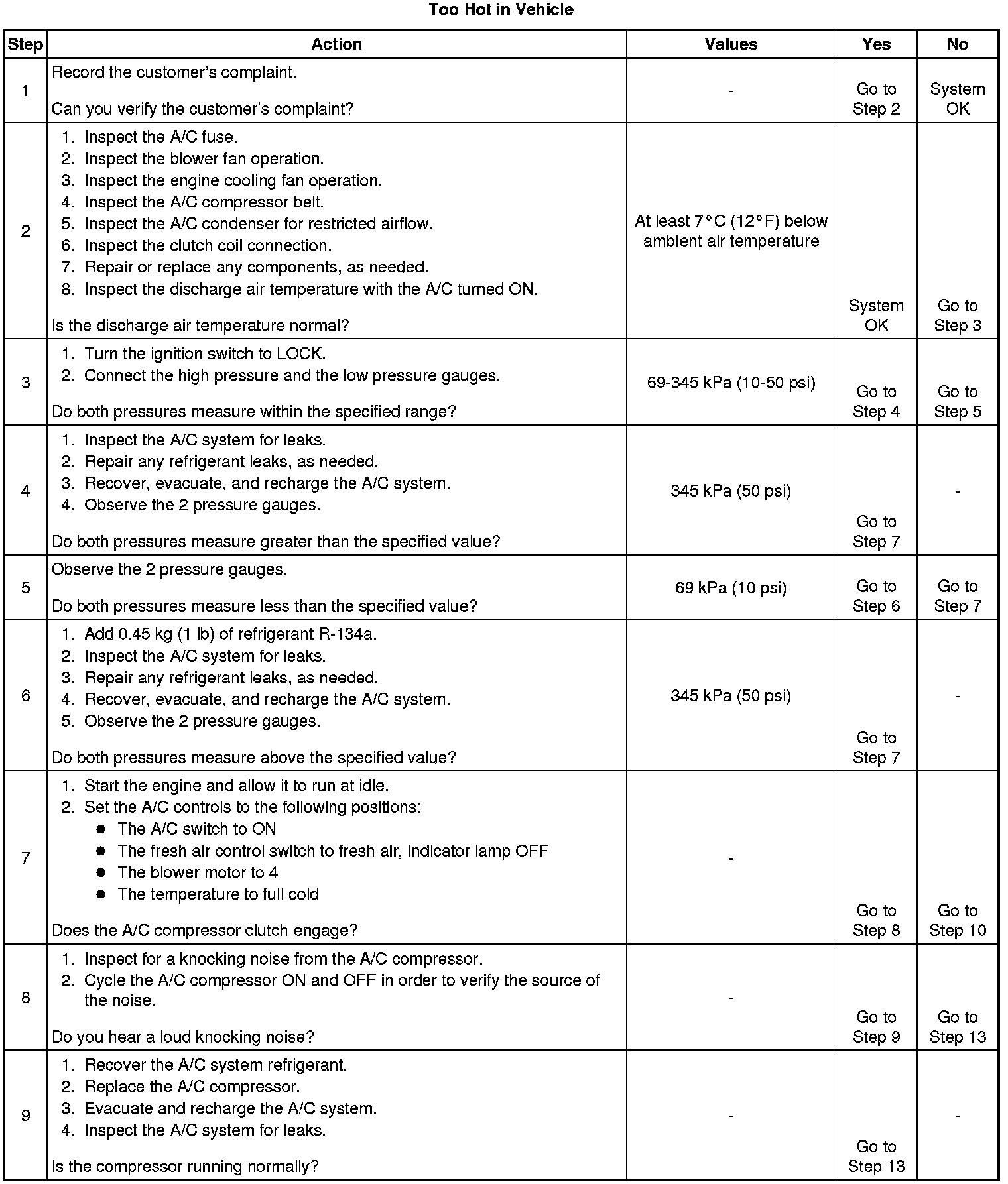

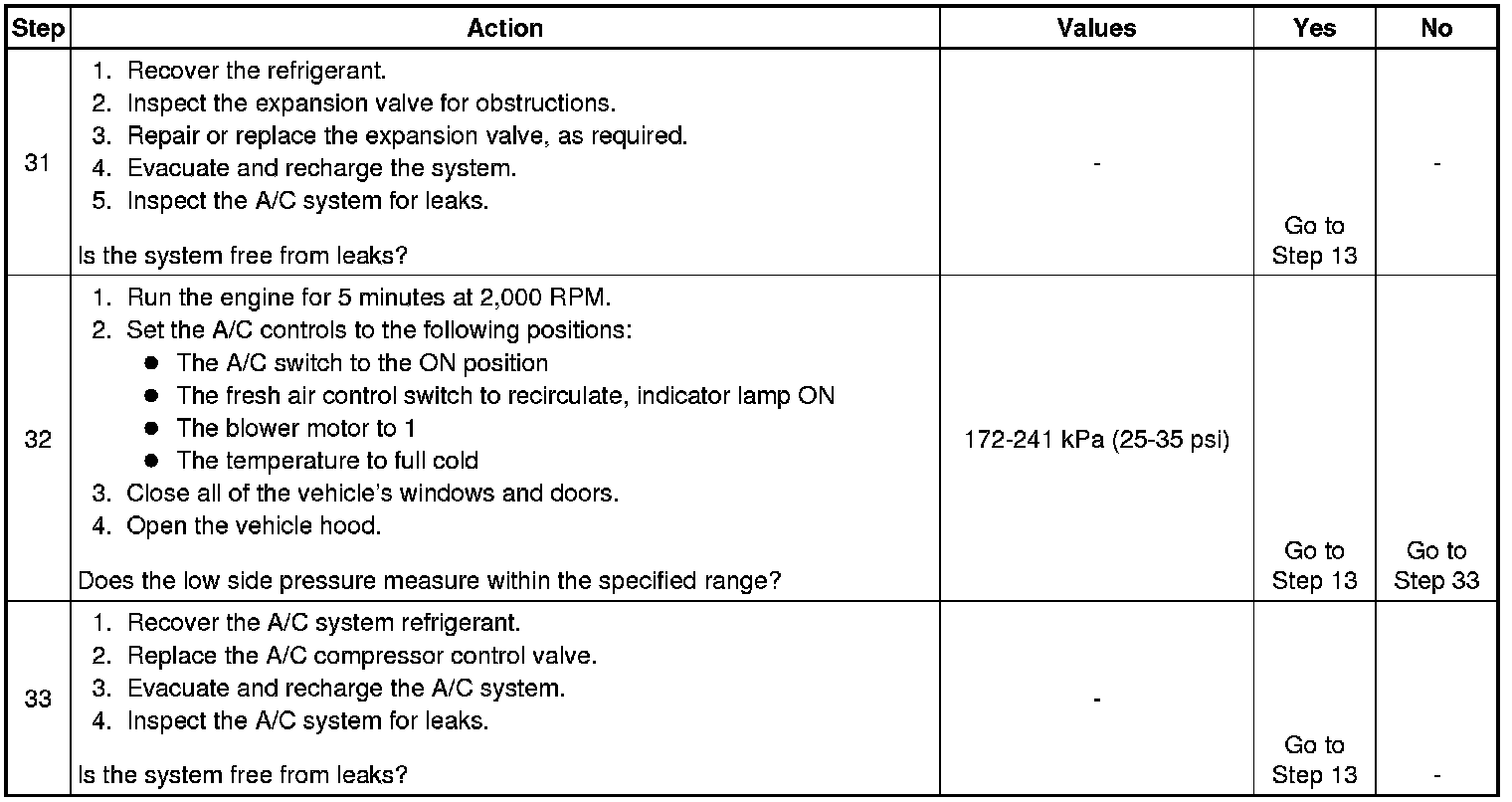

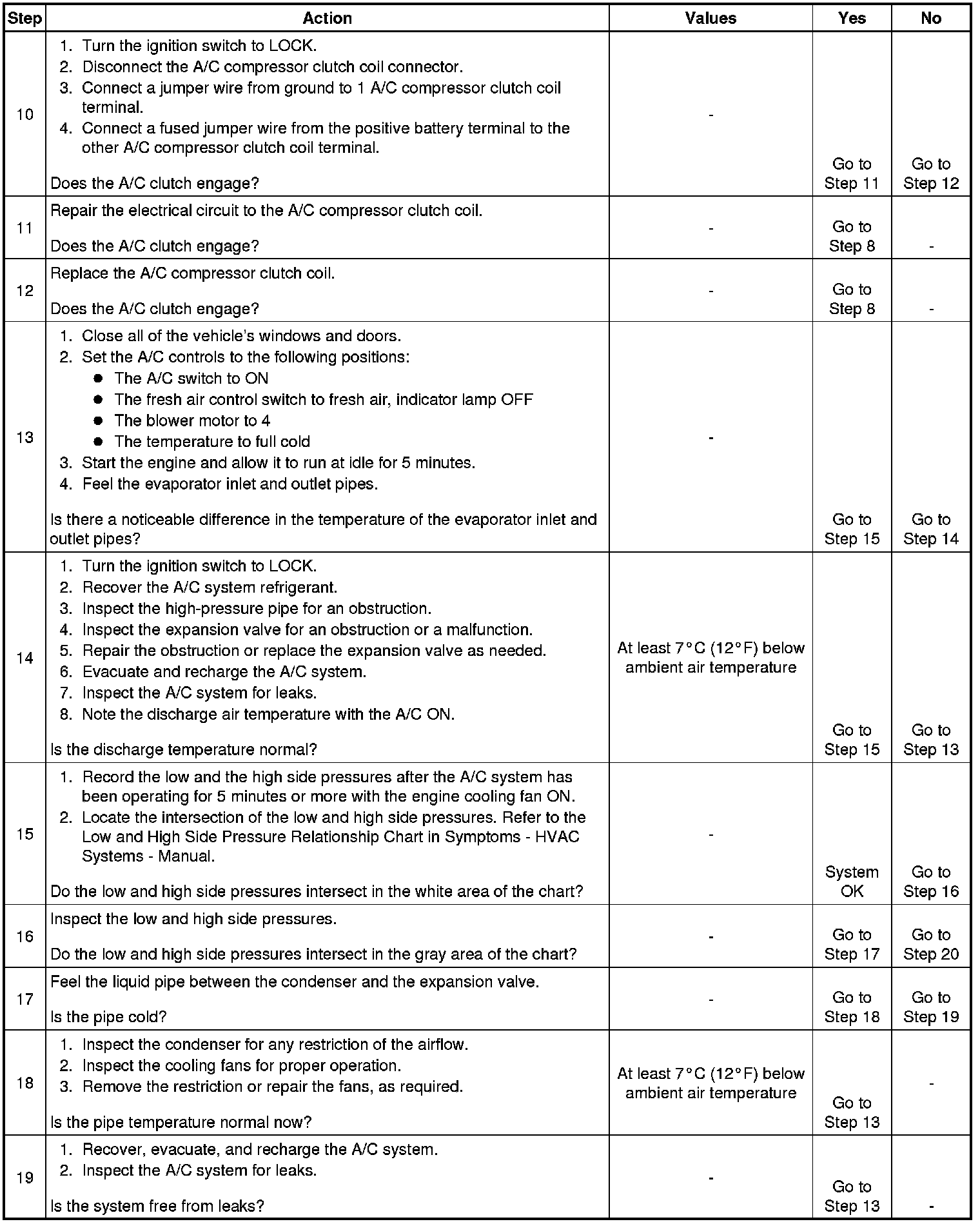

Too Hot In Vehicle




Too Hot in Vehicle

Important:
Perform this test under garage conditions with the air temperature at 21-32°C (70-90°F), and no sun load. Follow this test carefully for accurate results.


Important:
Perform this test exactly as described to obtain accurate results.
